Application
LHV4 CNC Horizontal Wire Foam Cutting Machine could be utilized to cut thermal insulation material, bed mattress or furniture cushions, car upholstery, packaging materials and other industrial materials.

Materials to be cut
EVA, rigid foam (PU, PIR, EPS, Phenolic resin and etc.), flexible foam (traditional sponge, slow recovery foam and etc.)

Shapes

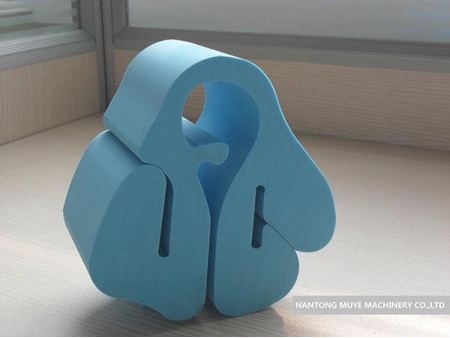

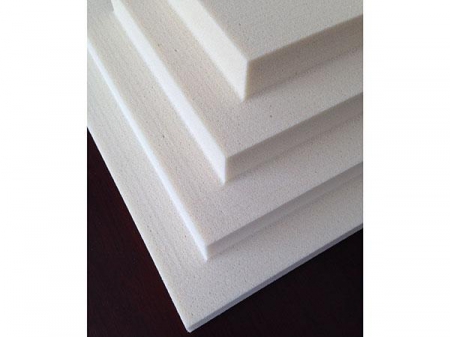

LHV4 CNC Horizontal Wire Foam Cutting Machine could cut foam into block, wavy, curved regular and irregular shapes.

Technical information
  Standard Option
Length of the foam block 3000mm 4500mm/5000mm
Height of the foam block 1250mm 1500mm
Width of the foam block 2200mm 2300mm
Work table Conveyor belt worktable
AC power 380V 3 phase 4 wire
Total power 15kW
Cutting precision ±0.5mm
Cutting tool Air pressure: 6 bar
Continuous blade
Cutting wire diameter: 1.3mm
Line speed: 6-30m/s
Standard configuration Remote diagnosis and maintenance
Worktable with conveyor
Automatic programming software
Computer console
Max. cutting speed Different cutting materials will be cut at different speed. And the max. speed is 15 meters/minute.
Gantry design drawing of LHV4 CNC Horizontal Wire Foam Cutting Machine
