Permanent Magnetic Separator

Magnetic separator for automatic removal of ferromagnetic impurities from powder and granular materials

Auto cleaning hump magnets are a comprehensive solution for removing ferromagnetic contaminants from powders and granular materials. Its automated cleaning system ensures continuous operation without manual intervention, making it ideal for industries requiring high levels of material purity. This magnet separator is widely used in food processing, plastics, ceramics, chemicals, pharmaceuticals, building materials, and battery manufacturing, where preventing metal contamination is essential to maintaining product quality and equipment efficiency.

Applications

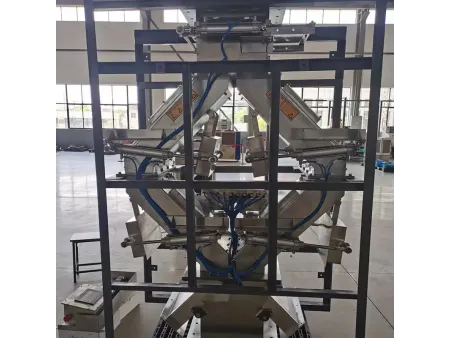

The separator features a dual-channel design, with left and right passageways, each equipped with two magnetic plates. These magnetic plates remain close to the material flow during normal operation, directing purified material through the filtered output. When cleaning is required, the magnetic plates retract, allowing contaminants to be discharged through a separate waste outlet without interrupting the material flow.

  • Food Industry:
    Suitable for processing grains, starches, and other powdered food ingredients, ensuring product purity and compliance with safety standards.
  • Building Materials:
    Used in refractory material processing to maintain high-quality standards and protect downstream equipment from ferrous contamination.
Specifications
Model Processing capacity (m³/h) Width Approx. net weight (kg)
mb165 165 250 292
mb250 250 400 395
mb390 390 600 533
mb550 550 800 671
mb800 800 1000 809
Body size (H×W×D) (mm) 2036×1520×650
Body weight 550kg
Max. surface magnetic field strength 4500GS
Operating temperature Approx. ≤80℃
Control cabinet size (W×H×D) (mm) 785×310×207
Control cabinet weight 22kg
Control cabinet installation size (W×H) (mm) 735×340 (4 × Ø12 mounting hole)
Power supply 100V-240V AC, 2Phase (L N PE), 50/60H
Power consumption 0.04kW/h
Power cable Cable outer diameter 8-14mm Single wire ≤2.5mm²
Air supply 0.4-0.7MPa Tubing outer diameter 8mm
IP grade IP65
Features
  • The PLC HMI control system provides seamless automated operation, ensuring efficient and continuous cleaning cycles without the need for manual intervention. This system allows for uninterrupted 24-hour operation, reducing labor costs and maintaining consistent productivity.
  • Wide voltage input compatibility ensures that the equipment can operate effectively under varying electrical conditions, providing flexibility for use in diverse production environments.
  • The low energy consumption design makes the system highly efficient and environmentally friendly, ultimately lowering operational costs while maintaining optimal performance.
  • With minimal material loss, the system ensures that only ferrous contaminants are captured, and valuable material is preserved, leading to improved cost-effectiveness and reduced waste.
  • The symmetrical design of the system allows for continuous material flow during cleaning cycles, preventing any stoppage or disruption in the production process, which enhances overall process stability.
