Hump Magnet

Request a Quote

View All: http://magnets-en.com/2-2-2-hump-magnet.html

Permanent Magnetic Separator

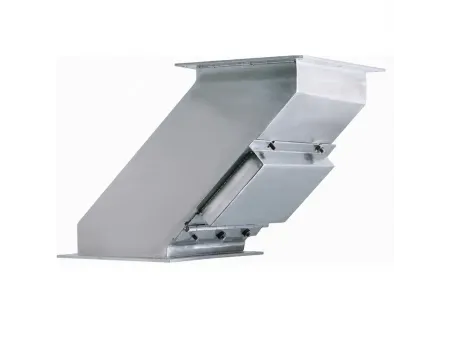

Magnetic hump separator used in closed production line to remove ferromagnetic impurities

Used in closed production lines, hump magnets efficiently remove ferromagnetic contaminants such as iron blocks, iron filings, and other magnetic particles from materials transported by gravity or air systems. These magnetic separators are widely used in industries such as food processing, chemicals, and construction materials, where maintaining product quality and protecting equipment from contamination is crucial.

Applications

These hump magnets ensure material cleanliness before storage or further processing. They also protect downstream equipment from potential damage caused by ferrous metals contamination. For applications with limited space, a half-hump magnetic separator can be used, offering effective separation while fitting into restricted areas of production lines.

Specifications

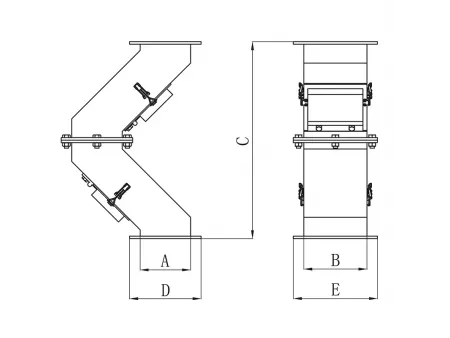

Model	Dimensions (mm)					Weight (kg)
Model	B	A	C	E	D	Weight (kg)
SWNHM120	150	120	470	170	200	14
SWNHM150	178	150	750	250	220	33
SWNHM200	178	200	750	300	220	44
SWNHM250	178	250	750	350	220	55
SWNHM300	178	300	750	400	220	66
SWNHM350	200	350	1110	450	300	128
SWNHM400	200	400	1110	500	300	146
SWNHM450	200	450	1110	550	300	164
SWNHM500	200	500	1110	600	300	182

Features

Magnetic plate systems are used for separating ferrous impurities, providing reliable and efficient filtration.
Rare earth or ferrite magnets are available depending on the customer’s needs, with the option of using 304 or 316 stainless steel for the separator’s housing, ensuring durability and corrosion resistance.
Angled designs help materials make direct contact with the magnetic plates, preventing clogging, bridging, and enhancing separation efficiency by breaking up any compacted material.
The simple structure of the system allows for easy installation and cleaning, making maintenance hassle-free.
Customizable inlet and outlet designs and other specifications can be tailored to meet unique operational requirements.
