Plate Housing Magnet

Request a Quote

View All: http://magnets-en.com/2-2-3-plate-housing-magnet.html

Permanent Magnetic Separator

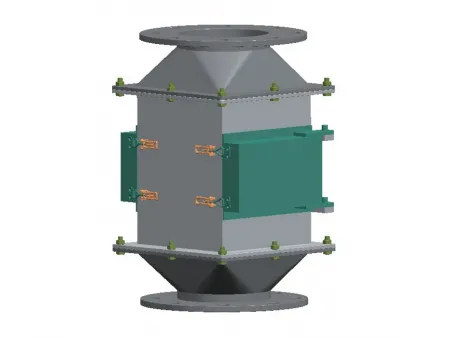

Magnetic plates hinged to housing for removing metals from material which easily agglomeration

Plate housing magnets are used in closed production lines or processing equipment to remove ferrous contaminants like iron blocks, iron filings, and other magnetic particles from materials that tend to clump or cause blockages. These separators are used in industries such as food processing, pharmaceuticals, tobacco, and chemicals, where maintaining material purity and safeguarding equipment from ferrous contamination are key to smooth production processes.

Applications

These magnetic separators are made up of a stainless-steel housing and multiple magnetic plates, which work together to effectively capture ferromagnetic impurities. This ensures that materials remain clean and helps protect downstream equipment from any damage caused by ferrous contaminants.

Specifications

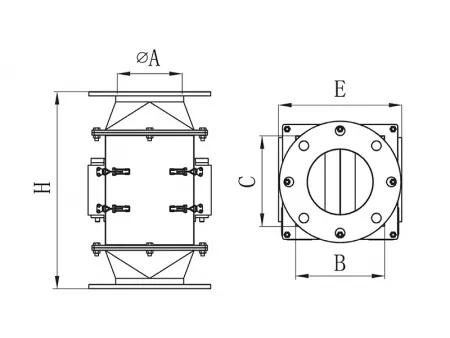

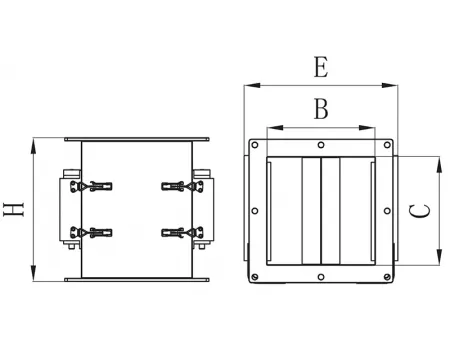

Model	Dimensions (mm)					Weight (kg)
Model	ØA	B	C	E	H	Weight (kg)
MC150	150	208	208	322	470	27
MC200	200	208	258	322	470	34
MC250	250	258	358	372	500	62
MC2020	-	208	208	322	300	17
MC2025	-	208	258	322	300	21
MC2525	-	258	258	372	300	27
MC2530	-	258	308	372	300	32
MC2535	-	258	308	372	300	37
MC2540	-	208	408	372	300	42
MC2545	-	258	458	372	300	47
MC2550	-	208	508	372	300	53
MC2555	-	258	558	372	300	58
MC2560	-	258	608	372	300	63

Features

The magnetic plates are mounted on hinges, making them easy to disassemble and clean.
Wedge-shaped baffles at the inlet prevent material bridging and fragmentation, guiding agglomerated material toward the magnetic plates for efficient separation.
Rare earth permanent magnets are used to capture a wide range of ferromagnetic particles, providing superior separation performance.
Customizable inlet and outlet designs allow the separator to fit various production setups and meet specific needs.
