16mm Metal 500 ohm Knurled Shaft Potentiometer with Switch,WH148-K4-P
Request a Quote
Part Number
WH148-K4-P
Parameters
| Diameters | 16mm |
| Total rotational angle | 300°±10° |
| Rotational torque | 20~200gf.cm |
| Stopper strength | ≥4kgf |
| Total resistance | 500Ω-2MΩ |
| Resistance tolerance | ±20% |
| Element | carbon |
| Rated power | ≤0.05W |
| Voltage proof | 500V AC for 1 minute |
| Operating life | ≥10000cycles |

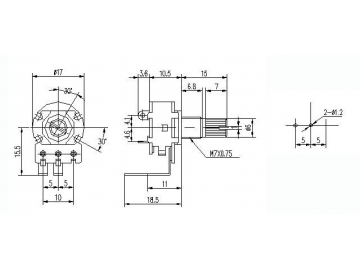

Dimensions
