16mm Metal 500 ohm Knurled Shaft Potentiometer with Switch,WH148-K4-4

16mm Metal 500 ohm Knurled Shaft Potentiometer with Switch,WH148-K4-4
16mm Metal 500 ohm Knurled Shaft Potentiometer with Switch,WH148-K4-4
Request a Quote

Part Number

WH148-K4-4

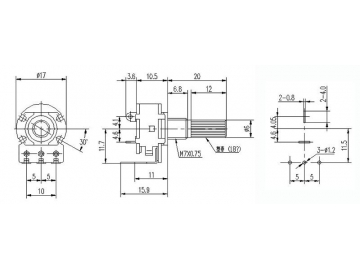

Dimensions
Parameters
Diameters 16mm
Total rotational angle 300°±10°
Rotational torque 20~200gf.cm
Stopper strength ≥4kgf
Total resistance 500Ω-1MΩ
Resistance tolerance ±10%
Shaft Types knurled shaft
Element carbon film
Rated power ≤0.05W
Voltage proof 500V AC for 1 minute
Operating life ≥10000cycles
Dimensions
