MWZ 1450Nii automatic flatbed die cutter is a cost-efficient solution for handling corrugated boards and plastic sheets. It can achieve the maximum cutting size of 1450x1050mm, with a cutting speed of up to 4800 sheets per hour.

Technical Parameters
Machine model MWZ 1450Nii
Max. sheet size 1480 x 1080mm
Minimum sheet size 600 x 500mm
Max. cutting size 1450 x 1050mm
Cutting force Up to 300tons
Max. mechanical speed 4800 sheets per hour
Stock range Corrugated sheet 0.8-8.5 mm
Height of cutting rule 23.8mm
Pressure adjustment ±1.5mm
Cutting precision ±0.5mm
Min. front waste 10mm
Machine dimensions Length: 9500mm
Width: 5560mm
Height: 2600mm
Machine weight 24 Tons
Machine Details

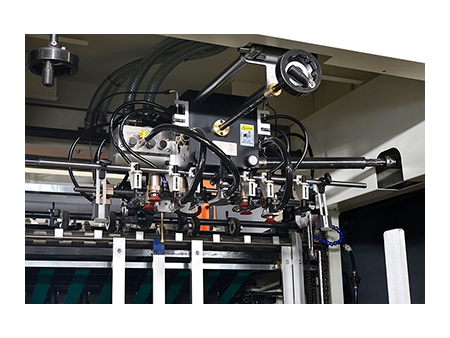

  • Standard Lead Edge Feeder
    • Lead edge feeder offers high speed precise sheet feeding.

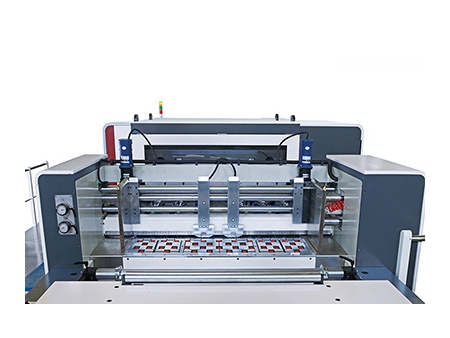

  • Feeding Table
    • Left and right side push lays ensure accurate alignment and power registration.
    • Servo driven conveyor transfers sheets to the die cutter accurately and efficiently.
  • Die Cutting Section
    • Central positioning system allows fast job changeover and easy machine set-up.
    • Independent automatic self-lubrication system ensures smooth running while reducing maintenance job.
    • Advanced cam indexer features torsion clutch for the protection against overload.
  • Stripping Section
    • Central positioning system simplifies stripping die set-up and allows fast job changeover.
    • Heavy duty double action stripper efficiently removes waste, male and female stripping tools can accommodate various stripping tasks.

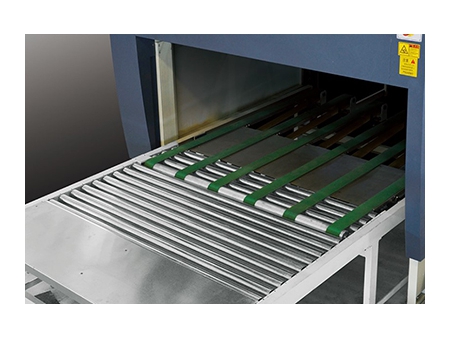

    • The waste separator at front removes trim waste from the sheet and transfers it to the machine drive side by conveyor belt.

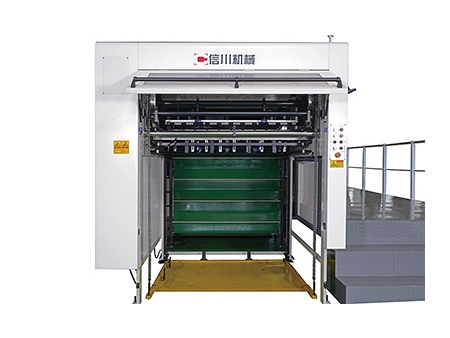

Delivery Section
  • Automatic pallet delivery system achieves non-stop feeding, with machine height increased by 300mm.
Applications

For manufacturers of cardboard boxes and packaging boxes, the MWZ 1450Nii automatic flatbed die cutter can be employed as a corrugated die cutting machine and a cardboard cutting machine to cut cardboards and corrugated boards.
