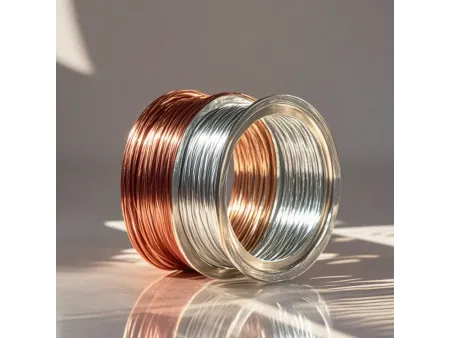

Copper Silver Alloy Wire (CuAg)
Magnesium content ranging from 0.10% to 0.4%
Copper Alloy Conductor
Copper-silver alloy wire is produced through a smelting process that allows precise control over the silver content, ranging from 0.10% to 4%. The alloy undergoes drawing, annealing, electroplating, and stranding processes to achieve different specifications. It is available in various forms, including single wire, stranded wire, multi-strand ropes, and parallel multi-wire. The diameter of single-wire options typically ranges from 0.016mm to 1.0mm.
- Electronics: Commonly used for internal connections in devices like computer motherboards and smartphone cables. It’s also a great option for reducing signal loss in high-frequency electronics.
- Jewelry Industry: Used in high-end jewelry designs, copper-silver wire can be shaped and woven into intricate patterns. Its resistance to corrosion helps maintain the jewelry’s look over time.
- Power Transmission: Well-suited for power distribution and precision instruments, where reliable conductivity and mechanical strength are essential.
Solid Wire
| Wire Type | Silver Content (%) | Wire Diameter (mm) | Tensile Strength (Mpa) | Elongation (%) | Electrical Conductivity (% IACS) |
| 0.8-1.2% | 0.9±0.02 | ≥540 | ≥0.2 | ≥89.0 | |
| 1.5-2.5% | 0.9±0.02 | ≥580 | ≥0.2 | ≥83.5 | |
| 3.5-4.5% | 0.9±0.02 | ≥675 | ≥0.2 | ≥77.5 |

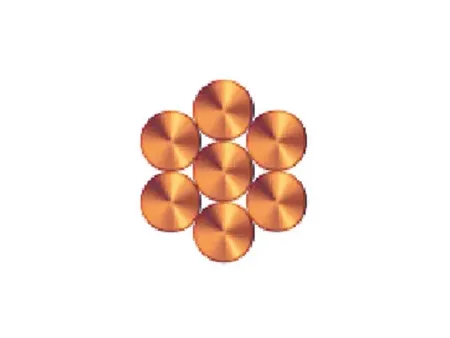

Stranded Wire
| Wire Type | Wire Diameter Tolerance (mm) | Elongation (%) | Tensile Strength (Mpa) | Conductor Diameter (mm) | Direction of Lay | Length of Lay (mm) | Number of Wires | Resistance (Ω/Km) |
| 0.157-0.163 | ≤5.0 | ≥600 | ≤0.818 | S | 15.0-20.0 | 19 | ≤51.0 | |
| 0.181-0.185 | ≤5.0 | ≥600 | ≤0.93 | S | 16.0-22.0 | 19 | ≤38.5 | |
| 0.159-0.163 | ≤5.0 | ≥600 | ≤1.15 | S | 20.0-27.0 | 37 | ≤25.8 |
By combining copper’s electrical properties with silver’s corrosion resistance, copper-silver alloy wire is well-suited for high-performance applications. The silver content helps maintain low resistance, ensuring reliable signal transmission. At ETO, we offer copper alloy wires that meet the growing demand for lightweight, durable wiring across various industries, providing a balance of quality, efficiency, and cost-effectiveness.
