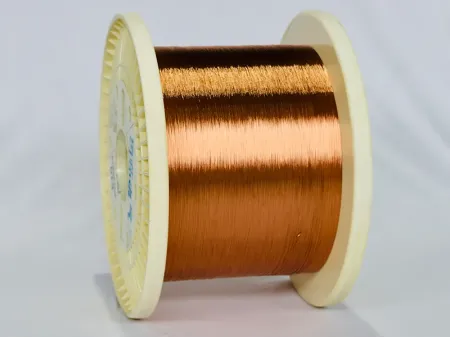

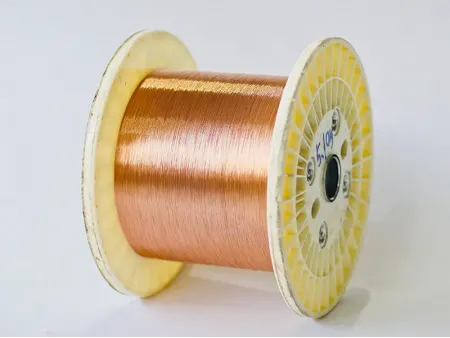

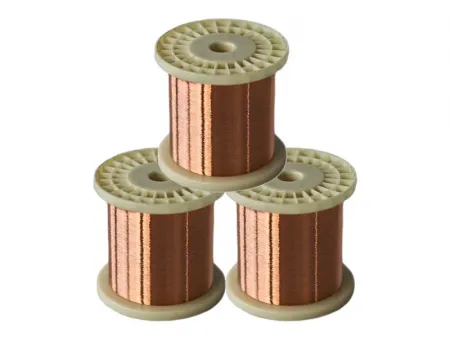

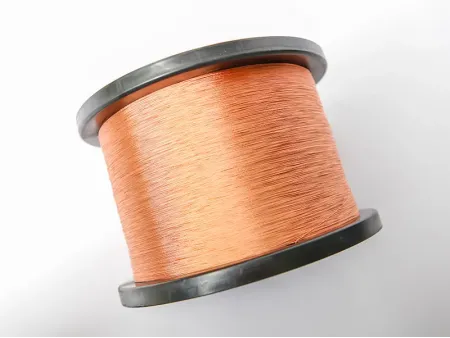

Copper Tin Alloy Wire (CuSn)
Magnesium content ranging from 0.10% to 0.4%
Copper Alloy Conductor
We manufacture copper-tin alloy materials with varying tin content (Sn: 0.15%-6%) through a precise smelting process. These alloys are then processed through drawing, annealing, electroplating, and stranding to create products in different configurations, including single wire, stranded wire, multi-strand wire ropes, and parallel multi-wires. The wire diameter ranges from 0.02mm to 8.0mm, and the alloy maintains strong mechanical properties while offering flexibility for a variety of applications.
- 0.2386mm→0.1224mm (10 drawing dies)
- 0.0391mm→0.0260mm (10 drawing dies)
- 0.2348mm→0.0862mm (16 drawing dies)
| Copper Alloy | Tin Content | Melting Point | % IACS | Properties |
| CuSn | Sn 0.15-6% | 1065℃ | 72 | Copper tin alloy (CuSn) provides high tensile strength and good electrical conductivity in soft condition |
| Wire Drawing | Wire Stranding/Multi-Wire Processing | Wire Plating |
| Can be drawn down to 0.02mm | Stranded Wires, Parallel Multi Wires | Bare Wire, Tin Plating, Silver Plating, Nickel Plating, Copper Plating Enameling: Polyurethane QA(UEW), 155/180℃ Polyester QZ(PEW), 130/155℃ Polyesterimide QZY(EIW), 180℃ Polyamideimide QXY(AIW), 200/220℃ |
| Wire Type | Tin Content (%) | Wire Diameter (mm) | Stranding Pitch (mm) | Outer Diameter of Stranded Wire (mm) |
| Sn (0.3±0.05) | 0.152-0.158 | 12.0-15.0 | 0.43-0.49 | |
| Sn (0.3±0.05) | 0.079-0.083 | 10-14;21-25 | 1.89-2.31 | |
| Sn (0.3±0.05) | 0.157-0.163 | 15.0-20.0 | 0.78-0.82 | |
| Sn (0.3±0.05) | 0.079-0.083 | 10.0-14.0 | 0.65-0.70 | |
| Sn (0.3±0.05) | 0.077-0.083 | 7-9;13-17 | ≈1.10 | |
| Sn (0.3±0.05) | 0.077-0.083 | 3-7;8-12 | ≈0.80 |
| Construction | Number of Wires | Coating Material | Thickness | Elongation |
| 0.90mm | 1 | Silver | 7μm | Min. 10% |
| 1.30mm | 1 | Silver | 17μm | Min. 22% |
| 1.80mm | 1 | Tin | 3μm | Min. 15% |
- Wiring conductors for central control harnesses
- Communication harness conductors
- Aerospace wiring harnesses
- ABS brake system wiring
- Conductors for industrial robot wiring
Copper-tin alloy wire offers increased strength and resistance to bending compared to traditional copper wire. Although copper alloys generally have slightly higher resistance, the impact on signal transmission is minimal, allowing for use in many applications.
