Applications
The multifunction vibrating sieves and screen equipment has many different industry applications, including cosmetics dehumidification, drying, de-fines, cooling and screening. Compared with the traditional screening equipment, the multifunctional screen equipment is used to screen materials more accurately, and it retains the high quality of materials.

Parameter
Grade VTS-05-N VTS-08-N VTS-10-N VTS-20-N VTS-30-N
Function Code N C-(Cosmetics), S-(De-fines), D-(Drying), W-(Water Cooling)
Run rate (kg/h) 500 800 1000 2000 3000
Size (mm) 500*2400 500*2800 700*2800 800*3200 900*3600
Inlet Height (mm) 900 900 1000 1100 1100
Outlet Height (mm) 600 600 700 800 800
Motor Power (Kw/2phase) 0.05*2 0.05*2 0.16*2 0.25*2 0.37*2
Reciprocating Range (mm) 10-30 10-30 10-30 10-30 10-30

Operational Principle
The feed section of multifunction vibrating sieves and screen equipment is equipped with a washboard, which uses the high strength back and forth swing to achieve the grinding process of the grain burrs to achieve a round appearance.

It also has a fluidized bed and a hot fan. The material in the fluidized bed is continuously rolling and fluidized, and the surface moisture and powder of the material particles are removed under the shear action of high-speed hot gas flow, and the electrostatic adsorption phenomenon of powder is effectively eliminated by ion neutralization and static electricity.

Finally, the water of the blanking section is used to quickly cool down the filtered material.

Features
  • The equipment is simple and has multiple functions, which is more cost-effective.
  • The resonant structure of the double body vibrates back and forth smoothly under natural frequency, so that there is no turbulence in the box body, and the long-term vibration is not cracked.
  • It uses modular design to add functions or reduce functional modules.

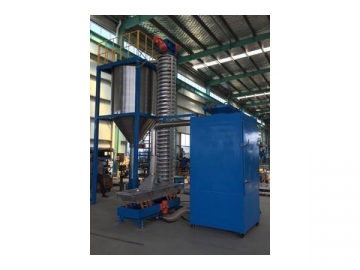

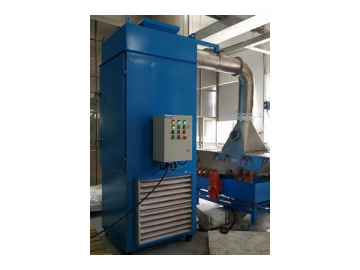

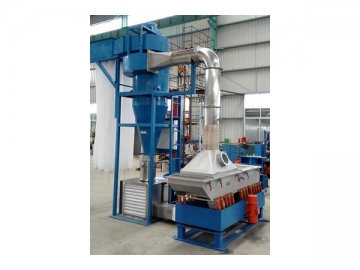

Gallery

Index
granule separation, vibrating classifier, sieving machine
