Automatic Flatbed Die Cutter, MWZ 2100Q

Request a Quote

View All: http://centurypack-intl.com/3-8-automatic-flatbed-die-cutter.html

Technical Parameters

Machine model		MWZ 2100Q
Max. sheet size		2200 x 1520mm
Min. sheet size		800 x 600mm
Max. cutting size		2180 x 1510mm
Max. cutting force		500 tons
Max. mechanical speed		4500 sheets per hour
Stock range		Corrugated sheet: F/E/C/B/A/AB 1-11mm
Pressure adjustment		±1.5mm
Cutting precision		±0.5mm
Min. front waste		10mm
Chase size		2250X1560mm
Power consumption (without air pump)		60kW // 380V, 3-PH, 50/60Hz
Main motor		30kW
Machine dimensions	Length	11500mm
	Width	5400mm
	Height	2950mm
Machine weight		53 Tons

Machine Details

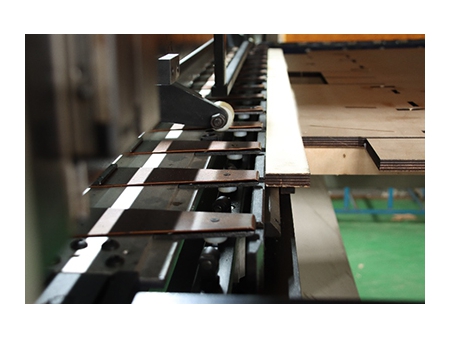

Gear driven Lead edge feeder
- High speed lead edge feeder paired with robust feeding table enables the flatbed die cutting machine applicable to cut corrugated boards and laminated sheets.
- Height-adjustable back stopper is suited to feed warped sheets.
- Adjustable vacuum suction power allows large sheet feeding with ease.
Servo Driven Feeding Table
- Left and right side push lays ensure accurate alignment and power registration.
- Brush rollers and pressure rollers make sure that the sheets are accurately transferred to die cutting unit.

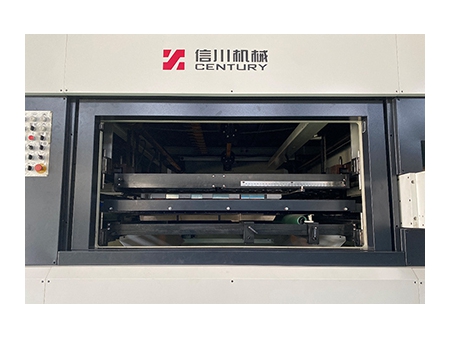

Die Cutting Section
- Automatic self-lubrication system is independently located to ensure smooth running and minimal maintenance.
- Central positioning system can help simplify cutting die set-up and ensure fast job changeover.
Stripping Section
- Central positioning system simplifies stripping die set-up and allows fast job changeover.
- Heavy duty double action stripper ensures positive stripping by efficiently removing waste.
- The waste separator at front removes trim waste and transfers it to the machine drive side by conveyor belt.

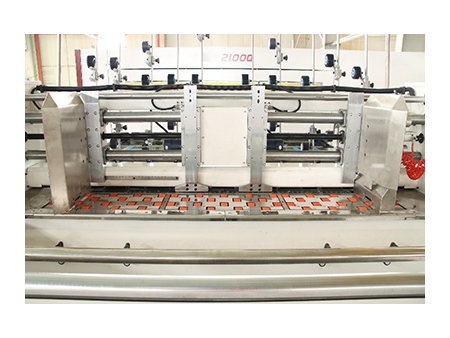

Delivery Section
- Non-stop pallet delivery system ensures continuous production.
- Front, back and side joggers are available for neat stacking.

Applications

MWZ 2100Q automatic flatbed die cutter is primarily suited to cut cardboards and corrugated boards for the production of packaging boxes and corrugated carton boxes.
