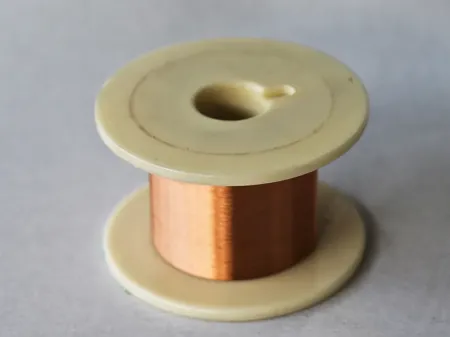

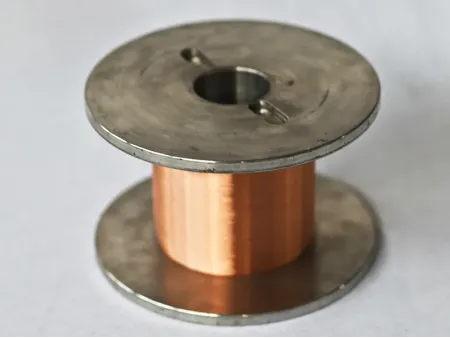

Copper-Chromium-Zirconium Alloy Wire (CuCrZr)
Request a Quote
Magnesium content ranging from 0.10% to 0.4%
Copper Alloy Conductor
Copper-Chromium-Zirconium (CuCrZr) alloy wire offers high strength, excellent electrical conductivity, and good resistance to oxidation and wear. It is ideal for applications in demanding environments where both mechanical durability and reliable conductivity are essential.
Specifications
| Single Wire Diameter (mm) | Elongation (%) | Tensile Strength (N/mm²) | Number of Wires | DC Resistance at 20℃ (Ω/Km) | Electrical Conductivity at 20℃ (%) | Surface | RoHS Halogen |
| 0.160±0.003 | ≧6 | ≥480 | 7 | ≤168 | ≧70 | 1. Ensures no twisting or strand skipping, maintaining wire integrity. 2. Color consistency meets standard requirements, with minimal oxidation. 3. The winding and setting of the wire comply with all necessary standard requirements. | Meets Product Environmental Management Standards |
