6000mm~9000mm 3-Roll Metal Plate Rolling and Bending Machine

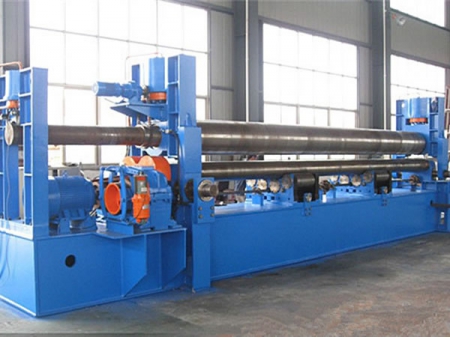

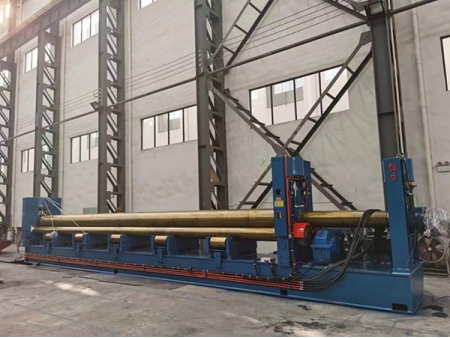

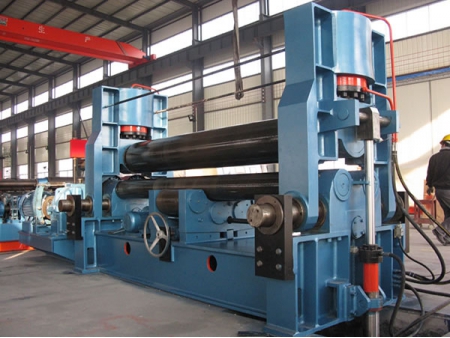

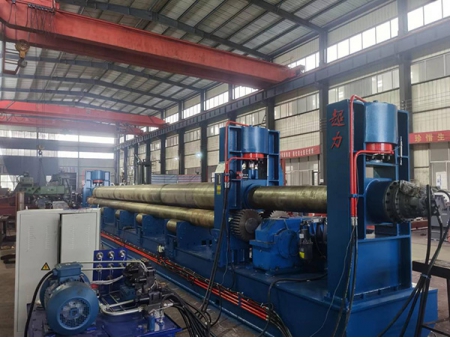

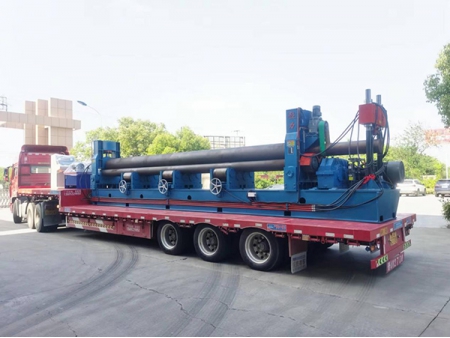

For this kind of steel plate rolling machine, the upper roller is designed to make vertical or horizontal movement, among which the vertical motion is hydraulically driven, which is achieved by the interaction between the piston and the oil in the hydraulic cylinder. The horizontal movement is done through the torques between the lead screw cabinet, the worm and the structure of screw and worm. Bending and rolling operations for the metal plate are done with the torque provided by the lower roller, on the lower side of which some support rollers are specially set for vertical adjustment. We have designed the upper roller to be drum shape for enhancing the straightness of the plates. This plate rolling machine for vehicle is applicable in bending various cylinder bodies.
| Model | Pressure on the upper roller (t) | Max plate thickness (mm) | Plate width (mm) | Diameter of upper roller (mm) | Motor power (kw) | |||
| End bending (mm) | Center (mm) | Power for driving | Hydraulic power | Power for moving | ||||
| | 130 | 6 | 8 | 6000 | 450 | 15 | 7.5 | 4 |
| | 160 | 10 | 10 | 6000 | 460 | 18.5 | 7.5 | 7.5 |
| | 270 | 16 | 16 | 6000 | 520 | 30 | 11 | 7.5 |
| | 320 | 20 | 20 | 6000 | 550 | 37 | 15 | 11 |
| Model | Pressure on the upper roller (t) | Max plate thickness (mm) | Plate width (mm) | Diameter of upper roller (mm) | Motor power (kw) | |||
| End bending (mm) | Center (mm) | Power for driving | Hydraulic power | Power for moving | ||||
| | 160 | 8 | 8 | 8000 | 480 | 15 | 7.5 | 4 |
| Model | Pressure on the upper roller (t) | Max plate thickness (mm) | Plate width (mm) | Diameter of upper roller (mm) | Motor power (kw) | |||
| End bending (mm) | Center (mm) | Power for driving | Hydraulic power | Power for moving | ||||
| | 190 | 8 | 9 | 9000 | 520 | 17.5 | 7.5 | 4 |

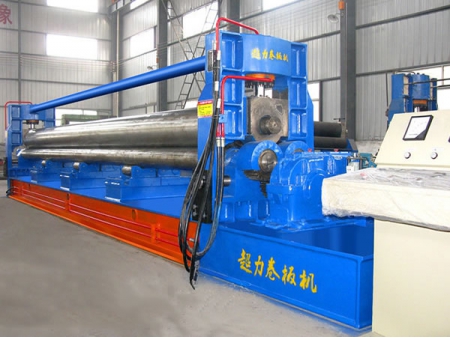

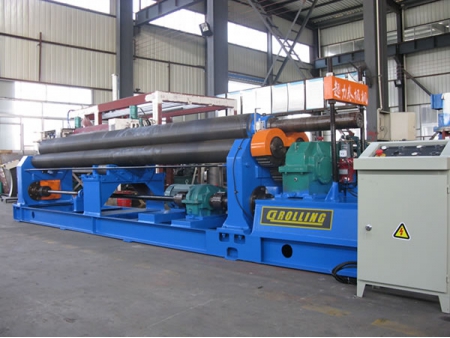

- Upper roller universal plate rolling machine

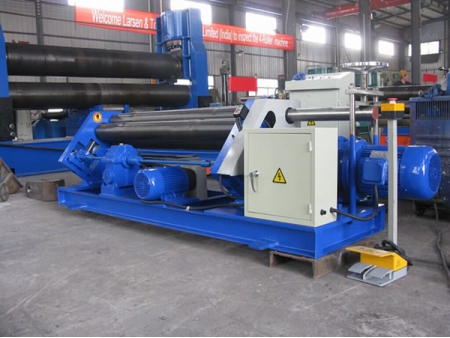

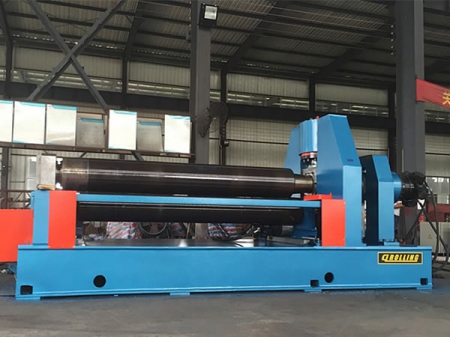

For this type, the upper roller can not only move up and down vertically but also can move horizontally. The two lower rollers remain fixed relatively. - 3-roller symmetrical plate rolling machine

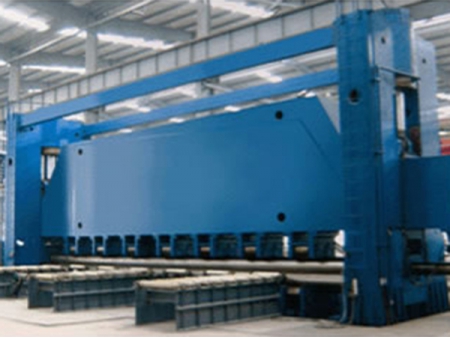

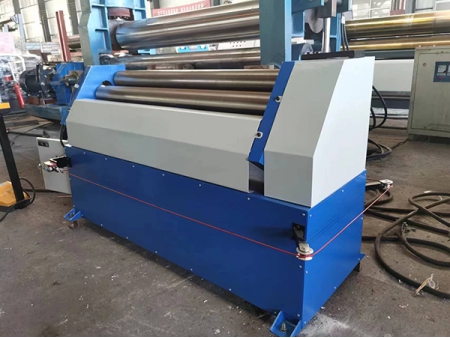

Upper roller of this kind of rolling machine can move vertically. The two lower rollers remain fixed relatively - Plate rolling machine with upper beam

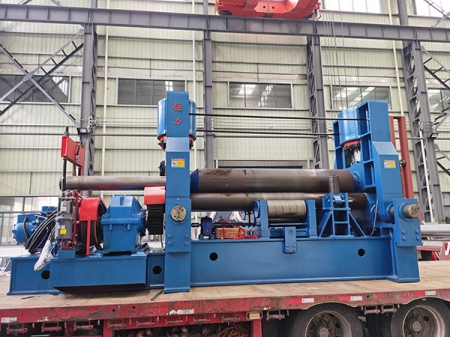

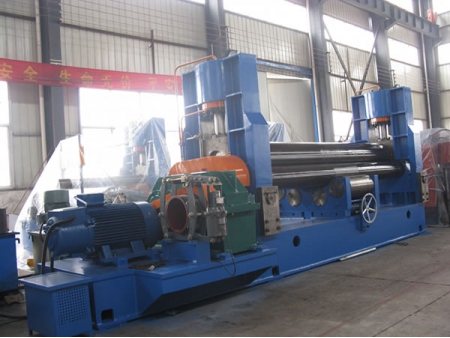

This kind of plate rolling machinery has press rollers set at the upside of the upper roller and lower side of the upper beam to improve the stiffness and strength of the upper roller. It's good for rolling those workpieces with small fillet radius
- Induction hardened rolls are forged with high-tensile carbon steel. They are given heat treatment and then submitted to non-destructive structural control
- Digital display is valued for all rolls
- Heavy-duty steel welded frame without stress
- All operations are controlled with an independent control console
- Hydraulic drop end for the ease of removing cylinder
- Movement and parallelism adjustment of the rollers are controlled with panel
- Side and central supporters are set for large sheet metal diameters
- Polished rolls
- Cone rolling attachment
- Material feeding table
- Mobile control panel
- Oil cooling system
- Automatic lubrication system
