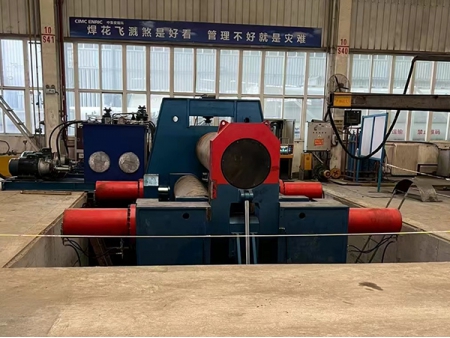

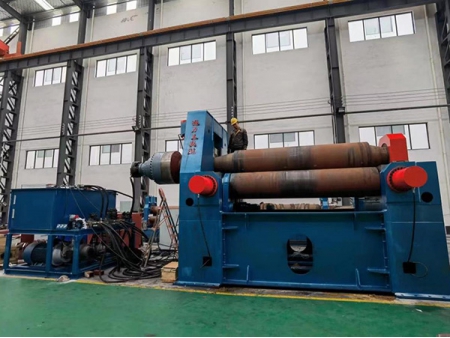

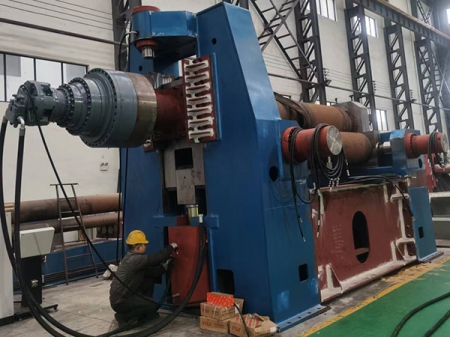

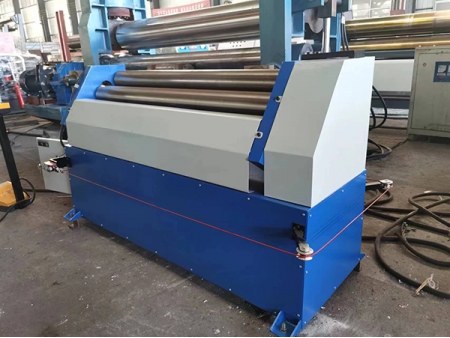

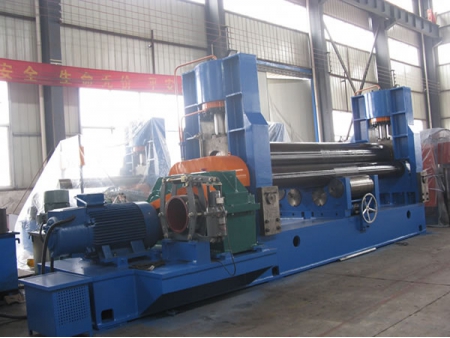

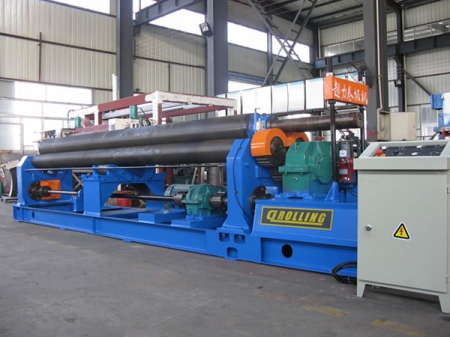

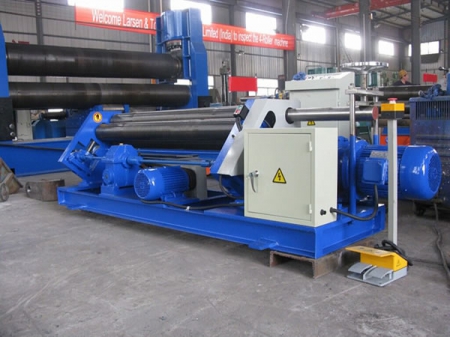

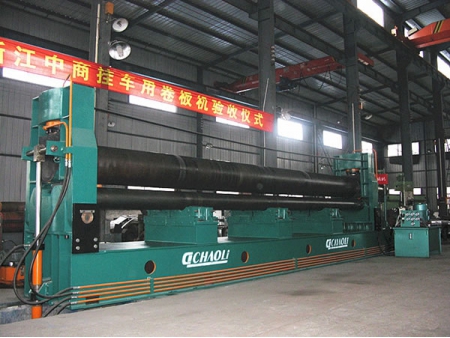

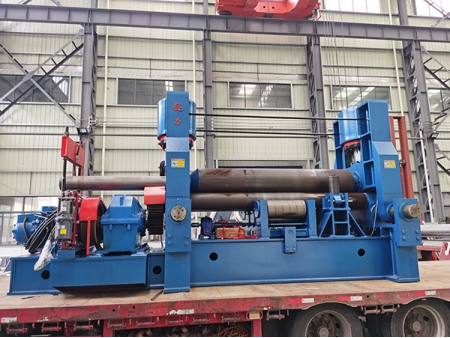

2000mm~3000mm 3-Roll Horizontal Plate Rolling and Bending Machine
The adjustable plate bending machine is able to perform pre-bending upon the plate ends and roll the metal plate to a specified shape with one time loading without reversing it. Its 3 rollers are all driving rolls, with both the vertical motion of the upper roller and the horizontal motion of 2 lower rollers driven hydraulically. The vertical movement is controlled by computer and displayed on screen, allowing for an auto leveling process, with the synchronization accuracy to be ±0.2mm. Tilting and resetting for the bearing body of the 3-roll adjustable plate bending equipment is realized hydraulically. A balancing structure is arranged at the tail of the upper roll for easily discharging the rolled workpieces and cylindrical parts.

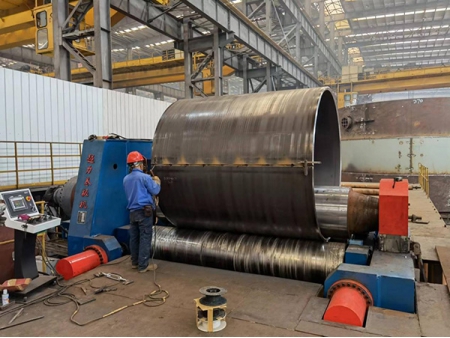

The horizontal adjustable plate rolling machine is an ideal for making cylindrical, arc and conical workpieces in energy, transportation, petroleum, chemical, boiler, shipbuilding, hydropower and metallic structure industries.
| Max plate thickness (mm) | Max plate width (mm) | Yield strength of the plate (MPa) | Rolling speed (m/min) | Diameter of the upper roller (mm) | Motor power (kw) |
| 12 | 2000 | 245 | 5 | 240 | 11 |
| Max plate thickness (mm) | Max plate width (mm) | Yield strength of the plate (MPa) | Rolling speed (m/min) | Diameter of the upper roller (mm) | Motor power (kw) |
| 6 | 2500 | 245 | 5 | 190 | 5.5 |
| 20 | 2500 | 245 | 4.5 | 340 | 15 |
| 25 | 2500 | 245 | 4.5 | 380 | 22 |
| 30 | 2500 | 245 | 4.5 | 460 | 30 |
| 40 | 2500 | 245 | 4.5 | 500 | 37 |
| Max plate thickness (mm) | Max plate width (mm) | Yield strength of the plate (MPa) | Rolling speed (m/min) | Diameter of the upper roller (mm) | Motor power (kw) |
| 12 | 3000 | 245 | 4.5 | 280 | 11 |
| 30 | 3000 | 245 | 4.5 | 480 | 37 |
| 40 | 3000 | 245 | 4 | 600 | 45 |
| 45 | 3000 | 245 | 4 | 620 | 45 |
| 55 | 3000 | 245 | 4 | 630 | 55 |
| 60 | 3000 | 245 | 4 | 670 | 55 |
| 70 | 3000 | 245 | 4 | 730 | 75 |
| 75 | 3000 | 245 | 4 | 750 | 75 |
| 80 | 3000 | 245 | 4 | 780 | 75 |
| 100 | 3000 | 245 | 4 | 840 | 90 |
| 120 | 3000 | 245 | 4 | 920 | 110 |
- Induction hardened rolls of the rolling machine are forged using high-tensile carbon steel. They are given heat treatment and then submitted to non-destructive structural control
- Digital display for all rolls
- Heavy-duty steel welded frame without stress
- All control operations are intelligently done with an independent control console
- Hydraulic drop end is employed for the convenience of removing cylinder
- Movement and parallelism adjustment of the rollers are controlled with panel
- Side and central supporters are set for large sheet metal diameters
- Polished rolls
- Cone rolling attachment
- Material feeding table
- Mobile control panel
- Oil cooling system
- Automatic lubrication system
