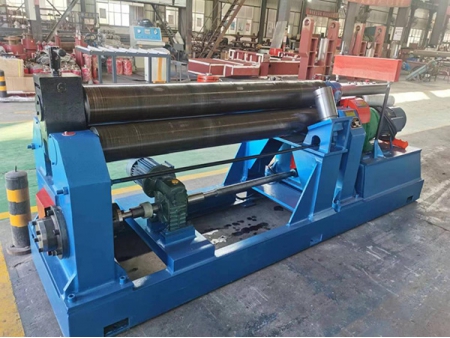

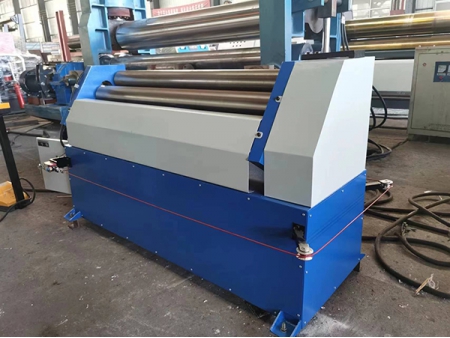

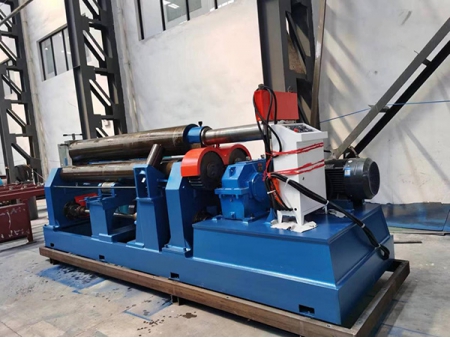

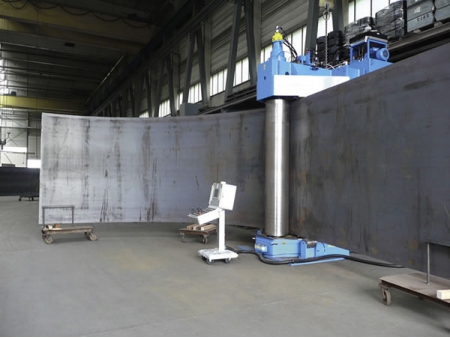

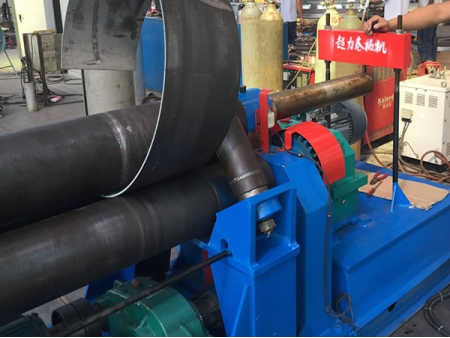

The 3-roll mechanical symmetrical plate bending machine has 3 symmetrically-arranged rolls and the upper roller is located at center of two lower rolls. A worm and gear drive and a screw rod and screw auxiliary drive are used to drive the upper roll to move vertically. The gear mounted on main speed reducer is utilized to mesh the gears of the 2 lower rollers for rotary motion so as to provide torque for the plates. A permanent plastic deformation will be realized upon the metal plates placed between the 3 rollers after a series of continuous bending operations, so the plates will then be formed into cylinders, cones, arcs, or any other shapes we want. While this kind of 3-roll bending machine also has some inadequacies: it is difficult to conduct pre-bending operation upon the plate ends.
Parameters of 3 roll mechanical plate bending machinery
1500 mm 3 Roll Plate Bending Machine | Model | Max rolling thickness (mm) | Max rolling width (mm) | Yield strength of sheet metal (MPa) | Rolling speed (m/min) | Diameter of upper roller (mm) | Power of the main motor (kw) |
| 4x1500 | 4 | 1500 | 245 | 5 | 150 | 3 |
| 6x1500 | 6 | 1500 | 245 | 5 | 160 | 4 |
2000 mm 3 Roll Plate Bending Machine | Model | Max rolling thickness (mm) | Max rolling width (mm) | Yield strength of sheet metal (MPa) | Rolling speed (m/min) | Diameter of upper roller (mm) | Power of the main motor (kw) |
| 6x2000 | 6 | 2000 | 245 | 4.5 | 170 | 5.5 |
| 8x2000 | 8 | 2000 | 245 | 4.5 | 185 | 5.5 |
| 12x2000 | 12 | 2000 | 245 | 4.5 | 240 | 7.5 |
| 20x2000 | 20 | 2000 | 245 | 4 | 280 | 15 |
| 16x2000 | 16 | 2000 | 245 | 4 | 260 | 11 |
| 25x2000 | 25 | 2000 | 245 | 4 | 330 | 18.5 |
2500 mm 3 Roll Plate Bending Machine | Model | Max rolling thickness (mm) | Max rolling width (mm) | Yield strength of sheet metal (MPa) | Rolling speed (m/min) | Diameter of upper roller (mm) | Power of the main motor (kw) |
| 8x2500 | 8 | 2500 | 245 | 4.5 | 240 | 7.5 |
| 12x2500 | 12 | 2500 | 245 | 4.5 | 260 | 11 |
| 16x2500 | 16 | 2500 | 245 | 4 | 280 | 15 |
| 20x2500 | 20 | 2500 | 245 | 4 | 340 | 18.5 |
| 25x2500 | 25 | 2500 | 245 | 4 | 370 | 22 |
| 30x2500 | 30 | 2500 | 245 | 4 | 420 | 30 |
3000 mm 3 Roll Plate Bending Machine | Model | Max rolling thickness (mm) | Max rolling width (mm) | Yield strength of sheet metal (MPa) | Rolling speed (m/min) | Diameter of upper roller (mm) | Power of the main motor (kw) |
| 12x3000 | 12 | 3000 | 245 | 4 | 280 | 11 |
| 30x3000 | 30 | 3000 | 245 | 4 | 450 | 37 |
3200 mm 3 Roll Plate Bending Machine | Model | Max rolling thickness (mm) | Max rolling width (mm) | Yield strength of sheet metal (MPa) | Rolling speed (m/min) | Diameter of upper roller (mm) | Power of the main motor (kw) |
| 6x3200 | 6 | 3200 | 245 | 4.5 | 220 | 7.5 |
| 16x3200 | 16 | 3200 | 245 | 4 | 340 | 18.5 |
Features of standard symmetrical plate bending machines
• High tensile carbon rolls are employed for the bending machine
• This plate bending equipment features 2 driving rolls
• Emergency stop mechanism is available
• A control console supports an intelligent control process
• Steel welded frame structure without stress
• Highly wear-resistant Zinc-based alloy worm gears
• High torque motors and reduction gears
• Limit switches are adopted
Features of optional metal bending equipment
• Cone-rolling attachment
• Channel steel, angle iron, and tube rolling are employed
• Movable operation panel
• Polished chrome rolls
