Semi-Automatic Coil Wrapping Machine
Request a Quote
SA-LS-600
Vertical coil wrapper for packaging wire rod coils and slit coils of up to 350mm ID and 600mm OD
- Packaging speed 50sec/pc
- Inner diameter of coil 350mm (±20mm)
- Outer diameter of coil 600mm (±20mm)
- Coil length 210mm
Our vertical coil wrapping machines are designed for packaging wire rod coils and slit coils with inner diameters of around 350 mm and outer diameters up to 600 mm. They offer a semi-automatic process where operators handle loading and unloading, while the wrapping and coil transfer are managed automatically. Each cycle takes about 50 seconds. After wrapping, the coil cart returns to the loading position for manual removal. These semi-automatic wrapping systems can be adapted to different coil sizes and are commonly used in wire and strip coil for efficient, consistent packaging that simplifies storage and transportation.
Packaging Comparison

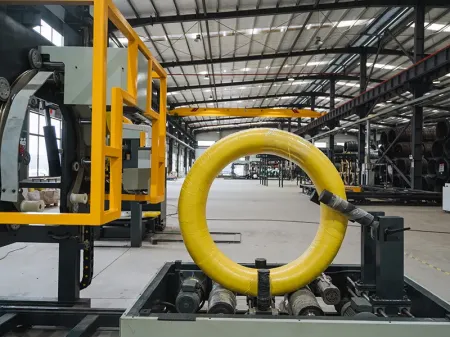

Before wrapping
Before wrapping

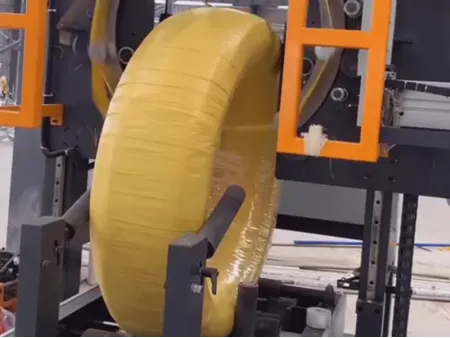

After wrapping
After wrapping
Specifications
- Type: Vertical coil wrapping machine
- Dimensions (L×W×H): 2.5×3.9×3m
- Inner diameter of coil: 350mm ±20mm
(machine can be designed based on the required size of customer's products) - Outer diameter of coil: 600mm ±20mm
(machine can be designed based on the required size of customer's products) - Coil length: 210mm
- Weight: Max. 2000kg
- Packaging speed: 50sec/pc
- Voltage: AC380V/50Hz
- Total power: ≤20kW
- Air pressure: ≥0.6MPa
Features
- Supports both manual and automatic operation
- Controlled via a PLC system with an intuitive HMI interface
- Automatically adjusts strapping length and coil count when coil width, inner diameter, and outer diameter are entered into the system
- Compatible with a variety of packaging materials, allowing customization based on product type or customer preferences
- Includes error alert functions with on-screen messages for quick identification and troubleshooting
- Equipped with an independent control cabinet to keep the electrical system organized and easy to maintain
How It Works
- The operator loads the coil manually using an AGV, forklift, or overhead crane
- The coil wrapper adjusts its height automatically based on the size of the coil
- The coil cart moves the product to the wrapping station, where packaging material such as woven tape, PE film, or kraft paper can be applied
- After wrapping, the cart returns to the loading position automatically
- The wrapped coil is then manually unloaded by the operator
