Semi-Automatic Coil Wrapping Machine Manufacturer

Semi-Automatic Coil Wrapping Machine

Request a Quote

View All: http://coilpackaging-en.com/4-2-semi-automatic-coil-wrapping-machine.html

SA-LS-500

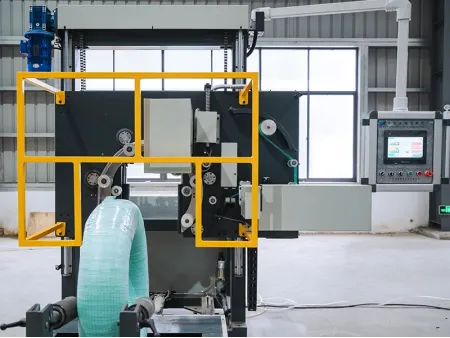

Vertical coil wrapper for packaging wire rod coils and slit coils of up to 300mm ID and 500mm OD

Packaging speed 50sec/pc
Inner diameter of coil 300mm
Outer diameter of coil 500mm
Coil length 210mm

Maximizing floor space in wire coil packaging operations requires compact solutions that don’t compromise efficiency. That’s why this vertical coil wrapper is designed to handle wire rod and slit coils with inner diameters up to 300 mm and outer diameters up to 500 mm. Its semi-automatic process completes each wrapping cycle in approximately 50 seconds and supports various coil sizes and packaging materials. A practical choice for manufacturers aiming to streamline coil wrapping while keeping the layout efficient.

Specifications

Type: Vertical coil wrapping machine
Dimensions (L×W×H): 2×3.5×3m
Inner diameter of coil: 300mm
Outer diameter of coil: 500mm
Coil length: 210mm
Weight: Max. 2000kg
Packaging speed: 50sec/pc
Voltage: AC380V/50Hz
Total power: ≤18kW
Air pressure: ≥0.6MPa

Features

Supports both manual and automatic operation modes
Equipped with a PLC-based control system and an HMI interface
Automatically adjusts strapping length and coil count when width, inner diameter, and outer diameter are entered
Compatible with various packaging materials, with strapping settings adaptable to specific production needs
Displays on-screen error messages for easier troubleshooting
Comes with an independent control cabinet to simplify system maintenance and wiring management

How It Works

The coil is manually loaded using an AGV, forklift, or overhead crane, depending on the setup
The packaging system adjusts its height automatically to match the size of the incoming coil

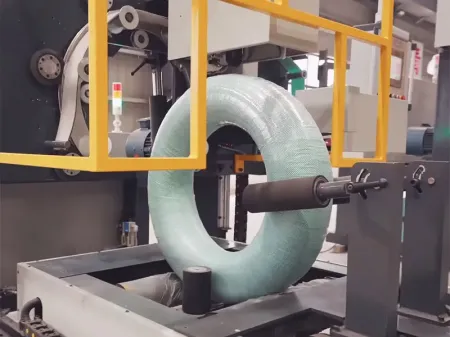

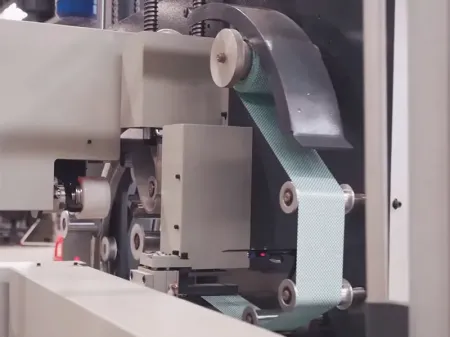

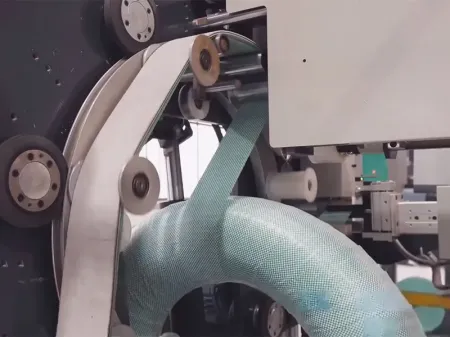

The coil cart transfers the product to the wrapping area, where materials like woven tape, PE film, or kraft paper can be used
Once wrapping is complete, the cart returns to the initial position
The wrapped coil is manually unloaded and ready for storage or transport
