Features

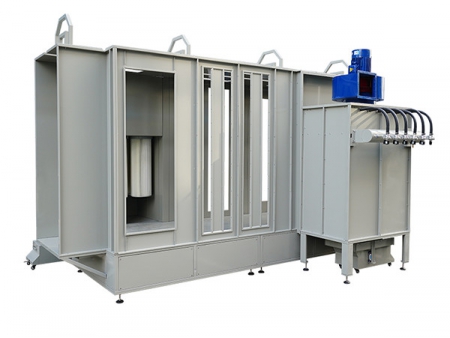

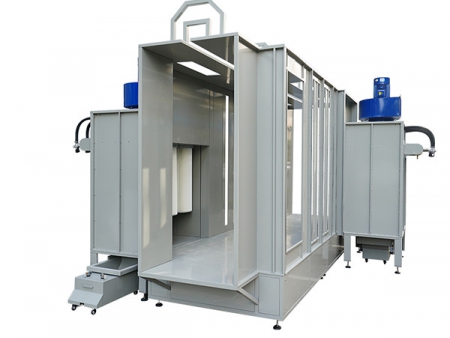

  • COLO-S-0825 automatic powder coating booth is ideal for single color applications in automatic spraying line.
  • The booth is made of durable powder coated steel, easy to clean without powder accumulation inside the booth.
  • Designed with both automatic and manual working stations for high-quality finishing.
  • High-precision filters capture the overspray powder effectively to provide a cleaner environment.
  • Reliable quality based on strict test before delivery, ensures safe operation and minimal maintenance.
Specifications
Model COLO-S-0825
Operating Dimensions 800 width x 4000 depth x 2000 height mm
Overall Dimensions 1200 width x 5000 depth x 2580 height mm
Weight 1100 kg
Power supply Electric
Nominal power 2*5.5 kW
Voltage 380V/220V
Frequency 50-60Hz
Filters Polyester
Filter quantity 12 pcs (D325*H900 mm)
Hang type filter Easy for change
Filter cleaning system Pneumatic
Details

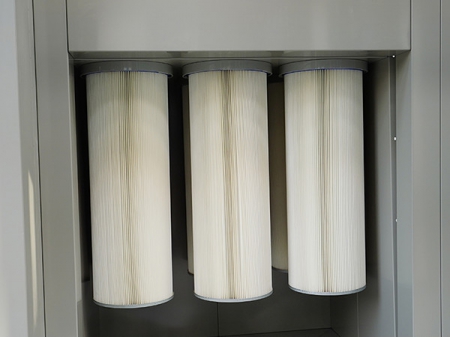

Cartridge Filters

  • Double stages of cartridge filters enhance the powder recovery efficiency and saves costs.
  • 12 pcs 100% polyester filters with exact porosity allows to fully separate powders from airflow, recirculates clean and filtered air into the booth.

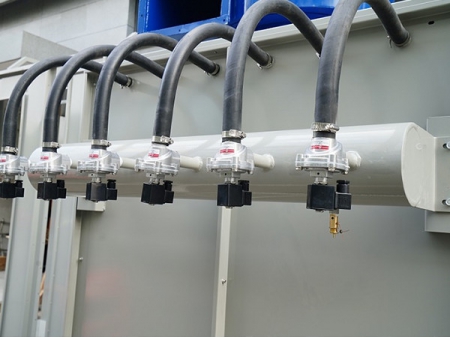

Filter Cleaning System

  • Pulse-jetting device regularly cleans the cartridge filters of accumulated powder to ensure peak filtering performance.
  • The self-cleaning enables accumulated powders on the filter to be intermittently discharged into a recovery hopper beneath the filter stage.

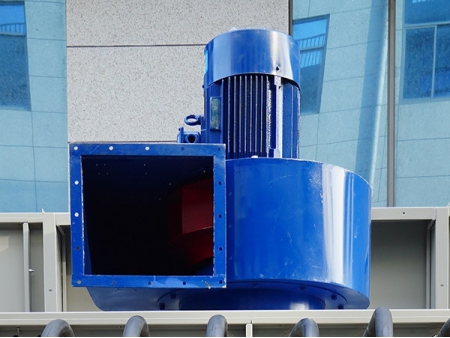

Fan

  • The air in the workshop is drawn into the spray booth through the powerful fan, which drags the powder paint from the overspray towards filters for complete capture.
  • Engineered with proven exhaust fan for high powder application efficiency and reliable overspray containment.

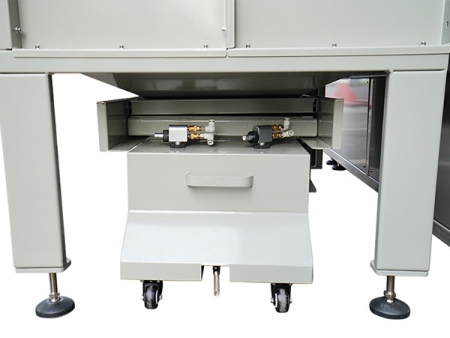

Removable Powder Collector

  • After filter cleaning, the discharged powders will be collected into a hopper beneath the unit, and transferred through powder supply equipment, also supports to be operated manually.
  • The removable powder collector helps to recycle powder more conveniently.

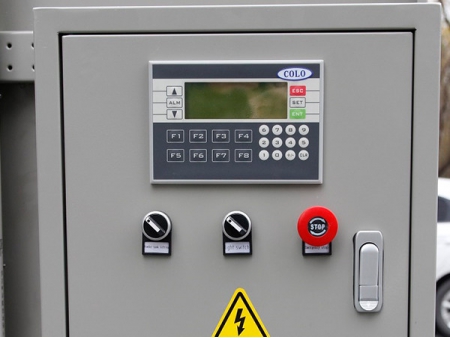

PLC Controller

  • Full-function PLC controller offers more convenience and precision to set or adjust parameters.
  • User-friendly control panel includes power switch, fan turn on/off switches, pulse cleaning timer and safety interlock switch, etc.
