Double Column Machining Center

LM-3013 vertical bridge gantry mill is used to machine large and complex components, such as airplane beams and frames, and other large machinery parts. This gantry mill is a heavy duty machine tool and features a belt driven spindle with a speed of 6,000rpm and positioning accuracy of 0.035/1000mm.

Parameters
Model LM-3013
Travels
X-axis travel (mm) 3200
Y-axis travel (mm) 1400
Z-axis travel (mm) 800
Distance from spindle nose to table center (mm) 120-920
Table (gantry) width (mm) 1400
Worktable
Worktable area (mm) 3000×1000
Maximum weight on table (kg) 5000
T-slot (width – number of slot x spacing) (mm) 7-22×150
Spindle
Standard spindle speed (rpm) 6000
Spindle taper BT50φ190
Spindle drive mode Belt drive
Spindle power (KW) 22
Feed
Cutting feed (mm/min) 8000
Rapid feed (m/min) 10/10/10
Linear guide rail width / number of tracks (mm) 2-45X2-45Y:Z box guideway
Others
Three-axis motor power (KW) 7.0/4.5/7.0
Positioning accuracy (mm) 0.035/1000
Repeatability (mm) 0.025
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 0.48
Power requirement (KVA) 40
Air pressure (bar) 6.5
Machine weight (t) 23
Machine dimension (mm) 7705×3286×4160
Components of gantry milling machine

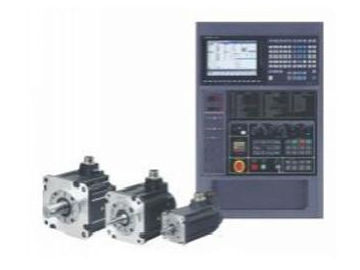

  • Control system and motor

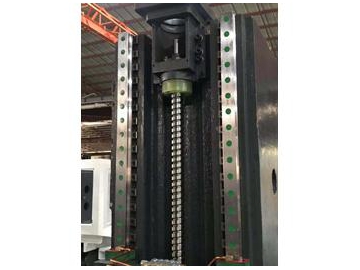

  • Box guideway

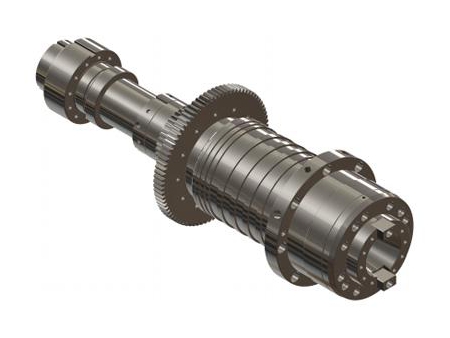

  • Mechanical spindle, gear drive

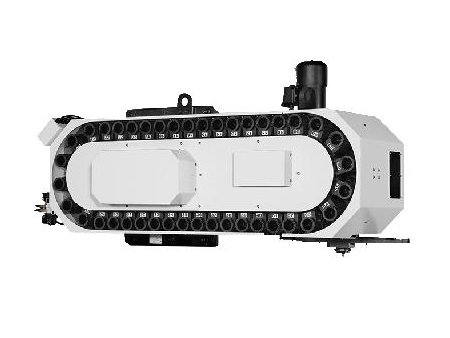

  • Chain-type tool magazine
