CPL-6000-CW/GW Laser Welding Position Compensation System
Laser System Modules & Measurement Instruments
Precise adjustment and compensation of workpiece positioning tolerances
During the laser welding process, deviations between the actual weld seam position and the preset path can occur due to workpiece processing errors, assembly errors, or thermal deformation. The laser welding position compensation system compensates for these deviations, ensuring the laser beam is always aligned with the center of the weld seam and preventing welding defects (such as lack of fusion or misalignment).

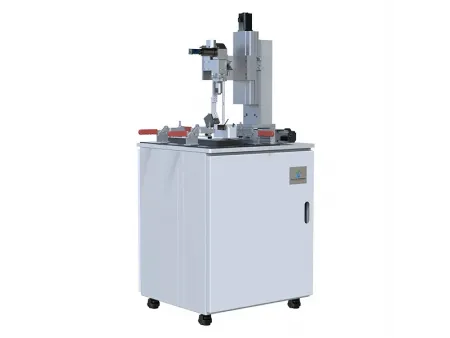

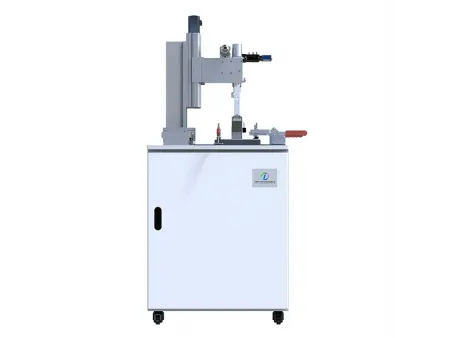

This intelligent laser welding position compensation system captures the weld seam position in real time and uses a galvanometer to quickly compensate for position deviations. Its main components include a 6000W or lower-power laser, a programmable digital galvanometer module, a vision detection module, a real-time PID control module, an XYZR four-axis CNC motion mechanism, and a configurable welding software system. By controlling the high-frequency digital galvanometer to deflect the laser beam, the system keeps the laser beam stably centered on the weld seam. Simultaneously, the system calculates changes in the weld seam gap and adjusts the actuator to optimize the welding effect. This laser welding position compensation system is suitable for welding tasks involving multiple materials and conditions, optimizing laser energy distribution and the solidification process of the melt pool to effectively reduce the occurrence of defects such as undercutting, pores, slag inclusions, and cracks.
| Key Parameters | |
| Basic components | 6000W fiber laser |
| Vision tracking and analysis module | |
| 3-element signal acquisition and control module | |
| Laser galvanometer module | |
| Laser welding head | |
| Power requirements | 340-420 V/3P PE @ 50-60 Hz |
| Total power | 20kW |
| Environmental requirements | Temperature: -10°C to 40°C |
| Humidity: 10-95% @ < 50°C | |
| Main controller dimensions | 1250×800×1180 (mm) |
| Main controller weight | 300 kg |
| Vision Tracking & Analysis Module | |
| Frame rate (fps) | 56.05 @ 2448 × 2048 |
| Sensor | Sony Global Shutter CMOS |
| Target size (") | 2/3 |
| Analog-to-digital conversion accuracy (bit) | 12 |
| Pixel depth (bit) | 12 |
| Monochrome/color | Monochrome |
| Pixel format | Mono8 / Mono12 |
| Illumination source wavelength | 808nm |
| Execution Mechanism | |
| Welding speed (mm/s) | 0-50 |
| Idle speed (mm/s) | 0-500 |
| Weld seam deviation (mm) | < 0.1 |
| Beam deflection | Digital galvanometer |
| Beam switching frequency (Hz) | 150 |
| Host communication protocol | RS485/EtherCAT |
| Mechanism system | CPL-6000-GW |
| Welding system | CPL-6000-WELD |

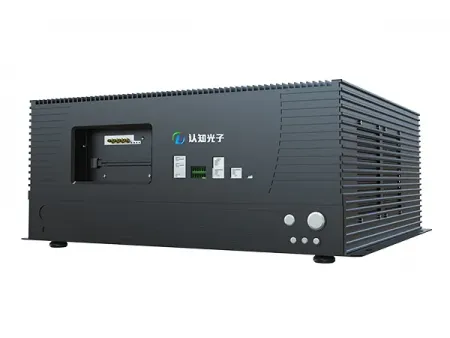

| Control System | |
| GPU | RTX3050 |
| CPU | Core i7-8700 |
| RAM | 16G |
| Hard drive | 256G solid state |
- Thin plate welding
For steel plates up to 6mm thick, such as those used for shipbuilding panels. - High-reflectivity material welding
For aluminum alloys up to 6mm thick and copper alloys up to 2mm thick. - All-position pipe root welding
For all-position root welding of oil pipelines, with single-sided welding and double-sided forming.
