Drive Shaft Balancing Machine
Request a Quote

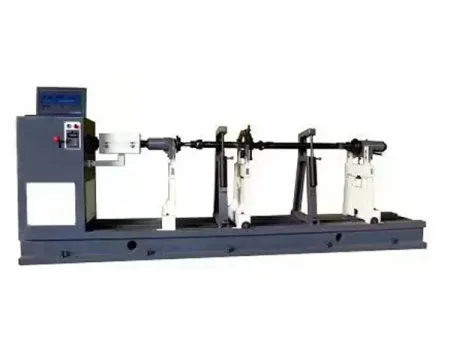

YRD-100A
Hard-bearing balancing machine for dynamic balancing of drive shafts
The YRD-100A is a hard-bearing balancing machine for automotive drive shafts. With its three-pedestal design, it supports both two-plane and three-plane dynamic balancing, offering flexibility for different shaft types and configurations. When operating in three-plane mode, the drive shaft balancing machine simultaneously displays correction data for all three planes, eliminating the need to repeatedly switch pedestal sensors. This greatly improves efficiency and convenience, making it suitable for both drive shaft manufacturing plants and the automotive repair industry.
Specifications
| Workpiece weight | 5-100kg |
| Max. workpiece length | 2800mm |
| Sensitivity | ≥1-5g/cm |
| Max. initial unbalance of workpiece | ≤1500g·cm |
| Balancing speed | 800/1200/1600/2400 r/min |
| Accuracy | Using a single-shaft drive shaft specimen (5 kg) a. Minimum achievable residual unbalance: emar ≤ 2 g.cm b. Phase angle error at a correction weight of 20 g.cm: ≤ ±15° |
| Using a double-jointed drive shaft specimen (16 kg) a. Minimum achievable residual unbalance: emar ≤ 10 g.cm b. Phase angle error at a correction weight of 100 g.cm: ≤ ±15° |
Features
- Equipped with the ZL-2 industrial computer balancing system, built on advanced hardware components with a USB data acquisition card and industrial PC for enhanced stability and anti-interference performance.
- The software, developed with NI LabVIEW virtual instrument technology, is intuitive and user-friendly, adaptable to different levels of users and diverse applications.
- The system’s functions can be extensively expanded and customized according to user requirements, ensuring flexibility for evolving testing needs.
