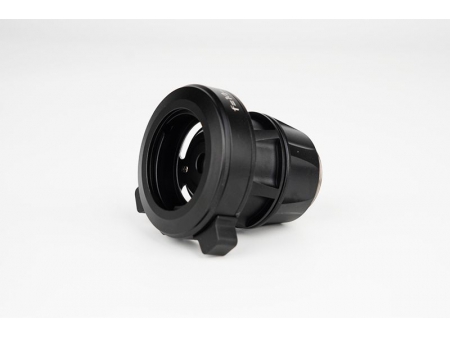

Endoscope Zoom Coupler
Request a Quote

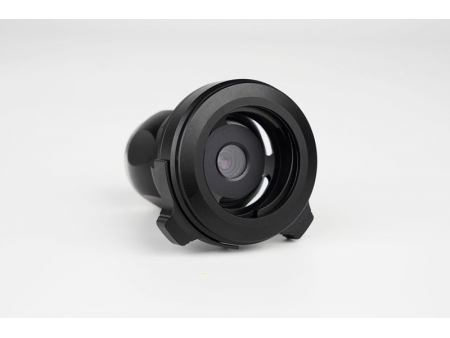

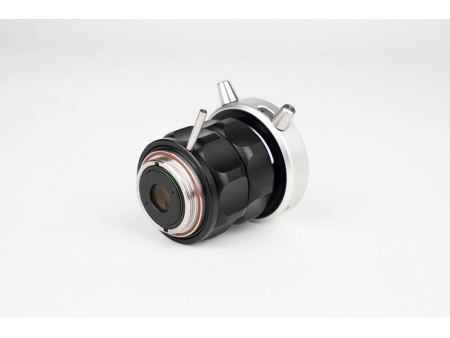

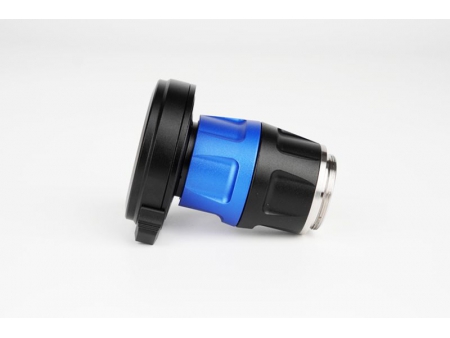

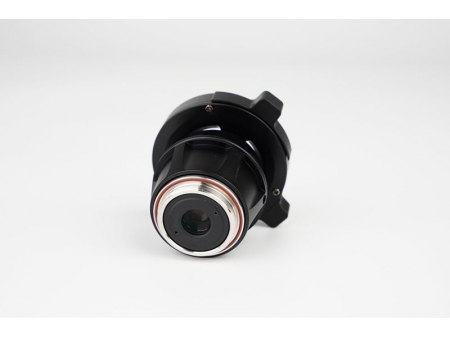

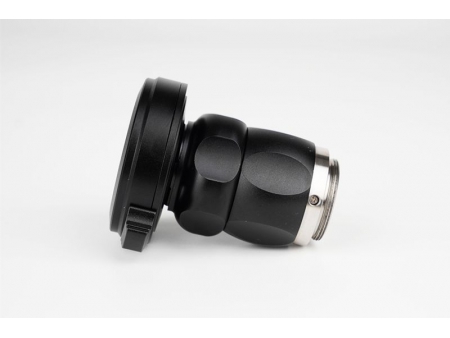

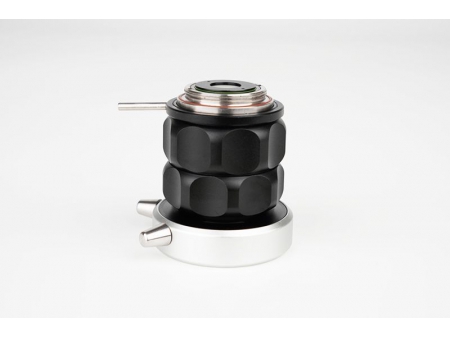

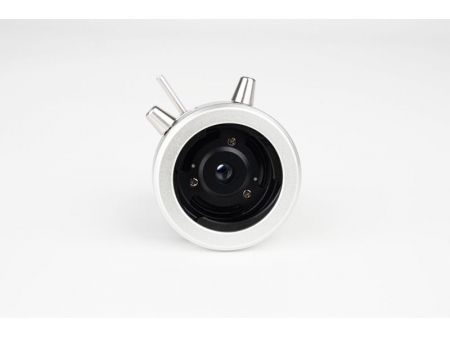

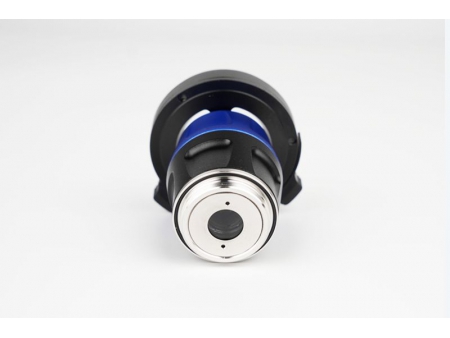

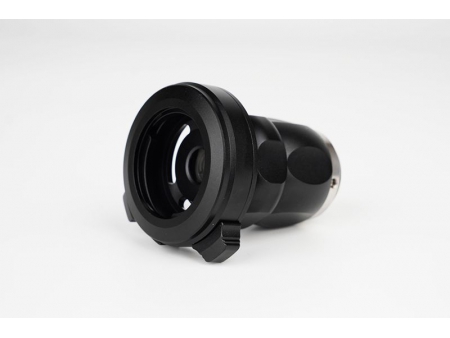

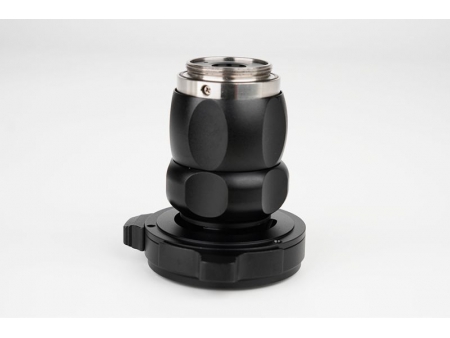

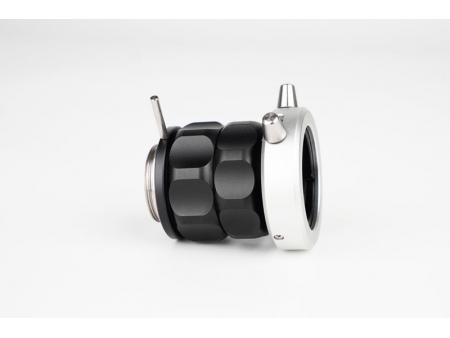

Our endoscope zoom coupler connect camera to standard endoscope. INNOP supplies four kinds of endoscope couplers to capture clear images and videos.
F14-32mm EA (For White Light and Fluorescent Endoscope Camera)
| Focal length | 14~32mm | |||||
| Image format | 1/3" | |||||
| Mount | CS/C | |||||
| F No. | F/4 | |||||
| Pixel | 4K (3840×2160) | |||||
| Focusing range | 0.1m~∞ | |||||
| Field angle | (H x V) | 1:3" | D | H | V | |
| 25º-11º | 19.6º-8.8º | 14.6º-6.6º | ||||
| TTL (total track length) | 58.3mm | |||||
| Lens construction | 11 elements in 9 groups | |||||
| Distortion | < 2% | |||||
| Working wavelength | 400-900nm | |||||
| Relative illumination | > 0.9 | |||||
| B.F.L. | 15mm | |||||
| Operation | Focus | Manual | ||||
| Zoom | Manual | |||||
| Iris | Fixed | |||||
| Filter mount | / | |||||
| Dimension | Ø49×L 58mm | |||||

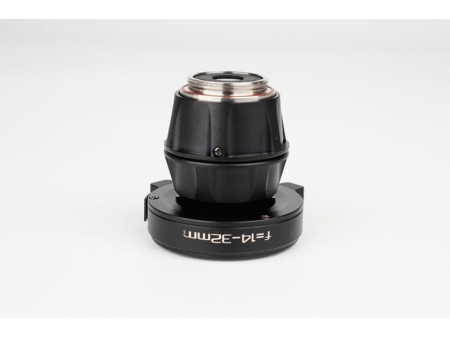

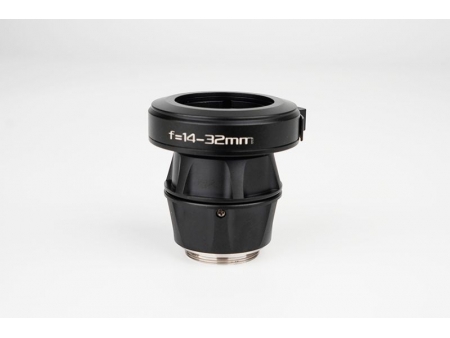

F14-32 mm (For White Light and Fluorescent Endoscope Camera)
| Focal length | 14-32mm | |||||
| Image format | 1/3" | |||||
| Mount | CS/C | |||||
| F No. | F/4 | |||||
| Pixel | 4K (3840×2160) | |||||
| Focusing range | 0.1m~∞ | |||||
| Field angle | (H x V) | 1:3" | D | H | V | |
| 25º-11º | 19.6º-8.8º | 14.6º-6.6º | ||||
| TTL (total track length) | 58.3mm | |||||
| Lens construction | 11 elements in 9 groups | |||||
| Distortion | < 2% | |||||
| Working wavelength | 400-700nm | |||||
| B.F.L. | 15mm | |||||
| Operation | Focus | Manual | ||||
| Zoom | Manual | |||||
| Iris | Fixed | |||||
| Filter mount | / | |||||
| Dimension | Ø49×L58mm | |||||
F18-35mm (For White Light and Fluorescent Endoscope Camera)
| Focal length | 18-35mm | ||
| Image format | 1/2" | 1/3" | |
| Mount | C/CS | ||
| Resolution | Resolution (pixel) | 1920*1080 | |
| Resolution (center/edge) | Center 150 lp/mm Edge 100 lp/mm | ||
| Dimension | Ø48×L63.8mm | ||
| Weight | 120g | ||
F20-35mm (For White Light and Fluorescent Endoscope Camera)
| Focal length | 20-35mm | ||
| Image format | 1/2" | 1/3" | |
| Mount | C/CS | ||
| Resolution | Resolution (pixel) | 1920*1080 | |
| Resolution (center/edge) | Center 250 lp/mm Edge 160 lp/mm | ||
| Dimension | Ø48×L63.5mm | ||
| Weight | 134g | ||
