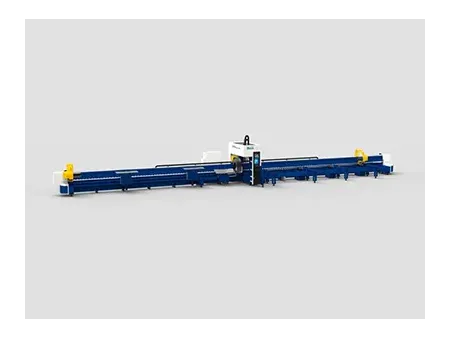

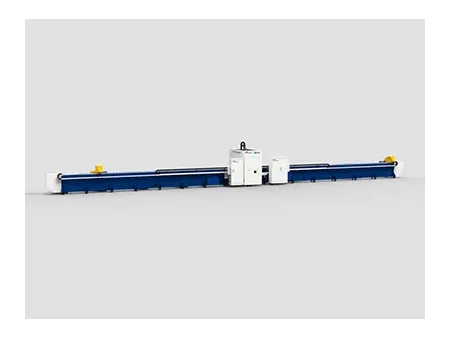

Automatic Two-Chuck Laser Tube Cutting Machine
The two-chuck laser cutting machine is a versatile tool for different metal working industries, designed for cutting and drilling square tubes, rectangular tubes, round tubes, oval tubes, and various profiles. It is widely used in industries such as kitchenware, lighting, automotive, fitness equipment, hardware, and other sectors that require metal processing and tube cutting equipment. The laser power ranges from 1000W to 6000W and is equipped with high-precision digital chucks. The machine can handle single tubes weighing up to 400kg, making it ideal for cutting stainless steel, carbon steel, galvanized pipes, copper pipes, aluminum pipes, aluminum alloys, and other metal materials with ease and precision.
-
- Laser cutting of aluminum tube
-
- Laser cutting of carbon steel tube
-
- Laser cutting of copper square tube
-
- Laser cutting of stainless steel square tube
-
- Laser cutting of stainless steel workpiece
-
- Laser cutting of stainless steel part
| Standard | ||
| Item | Quantity | Brand |
| Laser | 1 | Raycus |
| Laser cutting head | 1 | BOCI |
| Reducer (Including Gears) | 1 | TECHMECH |
| Fast Speed Servo Motor | 5 | INOVANCE |
| A Drive System (Rack and Pinion) | 1 | YYC |
| B Drive System (Linear Guide) | 1 | AIRTAC |
| Numerical Control System | 1 | Cypcut |
| Precise Rack | 3 | Hassfull |
| Water Chiller | 1 | Hanli |
| Industrial Air Conditioning System | 1 | Hanli |
| Optional | ||
| Item | Quantity | Brand |
| Air Compressor | 1 | GUeagle |
| Stabilizer | 1 | GUeagle |
| Dust Removal System | 1 | GUeagle |
| Automatic Programming Nesting Software | 1 | GUeagle |
| Air Extraction System | 1 | GUeagle |
| Laser Power | 6000W |

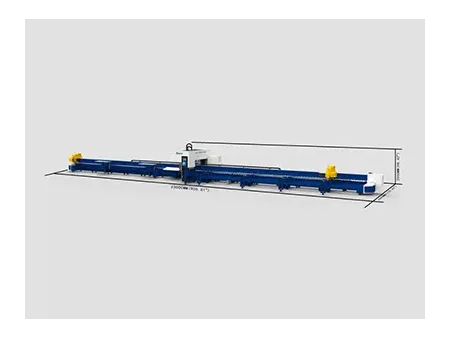

| Dimension | 23000×3450×2500mm |
| Phase | 3 |
| Rated Voltage/Frequency | 380V/60Hz |
| Protection Level | IP54 |
| Max. Finished Tube Length | 12000mm |
| Linear Axis Positioning Accuracy | 0.05mm/m (VDI/DGQ3441) |
| Repeatability | ±0.03mm |
| Cutting Size (Square/Rectangular Tube) | Square tube: 10×10-280×280mm Rectangular tube: length 10-280mm, width 10-280mm |
| Max. Rotation Speed of Axis | 110rpm |
| Max. Speed | 100m/min |
| Max. Load Weight of Chuck | 400kg |
| Machine Weight | 15000kg |
- The permanent monitoring safety goggles effectively prevent dust from entering the optical path and allow you to observe the working status through an LED display.
- The Bluetooth-enabled system displays device data and integrates with mechanical controls to monitor the nozzle (cutting gas) and laser cutting head pressure in real-time.
- The auto-focusing laser head reduces punching time by 80% compared to standard laser heads, making it especially suitable for cutting thick metal sheets and highly reflective materials.
- The machine features a high-quality laser source with an optical-to-electrical conversion efficiency of up to 30%, ensuring efficient and powerful cutting.
- Fiber Laser Source
The 6000W global series continuous-wave fiber laser offers high electro-optical conversion efficiency, excellent beam quality, high energy density, a wide modulation frequency range, with minimal maintenance.
- Laser cutting head
The BLT 4 series is a cost-effective smart cutting head, designed specifically for 2D, 3D, and bevel cutting. It ensures stable cutting performance, is easy to install and set up, and delivers outstanding results.
This is a versatile laser machine that is not only capable of cutting and piercing round tubes but can also process square tubes, rectangular tubes, oval tubes, and various profiles.
The machine has a repositioning accuracy of ±0.03mm, ensuring that it almost perfectly aligns with the original position, maintaining a very high level of precision.
