General Purpose CO₂ Laser Cutting Machine
CO₂ laser cutting is renowned for its high precision and efficiency, making it widely applicable in fields such as metal processing, non-metal processing, and electronics manufacturing. We offer a range of models and configurations designed to meet your specific needs. Share your specifications, and we'll tailor a perfect solution that precisely meets your industrial requirements, delivering performance you can rely on.

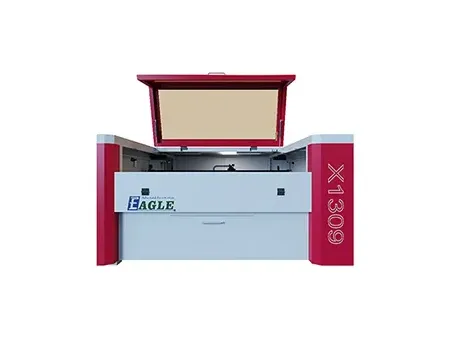

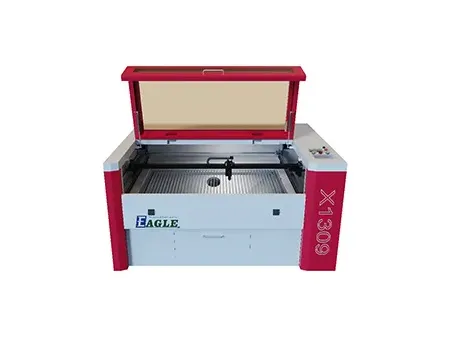

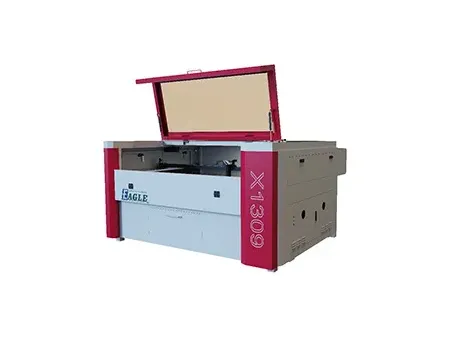

This is our largest general-purpose CO₂ laser machine, featuring a height-adjustable working area. It comes standard with a 150-watt laser tube (upgradeable to 300 watts) and is equipped with either a metal blade or honeycomb bed (51 inches × 35 inches) along with an integrated exhaust system. This makes it an ideal choice for workshops seeking a durable, user-friendly, high-speed precision production solution. Additionally, the machine, like all our CO₂ laser devices, boasts a highly adjustable working area (Z-axis) capable of processing materials over 8 inches in height, providing greater flexibility in handling diverse projects.
-
- Acrylic laser cutting
-
- Paper & cardboard laser cutting
-
- Wood laser cutting
-
- Textile & leather laser cutting
-
- Laminate laser cutting
-
- Rubber stamp laser cutting
-
- Stone laser cutting
-
- Glass laser cutting
| Working Area | 1300×900mm Can fit uncut sheets or long work pieces (along Y direction) with full pass-through capability |
| Max. Workpiece Height | 200mm by motorized Z axis, able to accommodate special workpieces, or an optional rotary axis unit for processing pipe and rod stock |
| Working Table* | An aluminum slat working table for hard and flammable materials (acrylic, cardboard, wood, etc.), and a full-support honeycomb working table suitable for soft material processing (paper and textiles). |
| Laser Source | Sealed glass CO₂ laser tube |
| Laser Power* | 100W / 130W / 150W |
| Laser Configuration* | Single laser/ Dual lasers |
| Focus Lens* | Standard 63.5mm, optional 101.6mm or 50.8mm, can be equipped with a special laser pen |
| Software | EagleWorks CAD/CAM and EaglePrint print driver, compatible with Windows 7/8/10, 100% support LightBurn software |
| Machine/PC Connection | USB / FLASH / LAN |
| Operating Mode | Cutting / Engraving / Combined |
| Control Interface | True Color TFT LCD panel with function buttons |
| Memory Capacity | Multiple job storage up to 128M |
| Resolution | Up to 4064 DPI |
| Motion System* | Transmission with belt on advanced balanced bearing rails Driven by stepper / servo motors |
| Auxiliary Equipment | Air assist pump, industrial water chiller and exhaust fan included |
| Electrical Requirement* | 220V/60Hz, single phase, 2.5kW-4.5kW depending on configurations |
| Dimensions | 1900×1700×1100mm |
| Weight | 400kg |
Note: All specifications marked with * depend on configurations of the laser machine.
- Multi-Purpose Working Area
The working width of 1300mm easily accommodates standard 1200mm wide sheets. The worktable features an electric lift function to handle irregularly shaped workpieces, and an optional rotary attachment is available for processing tubes and rods.
- Full Pass-Through Capability
The front door and back panel can be opened, allowing you to process uncut sheets, long workpieces, or continuous roll materials without interruption.
- *Optional Working Table

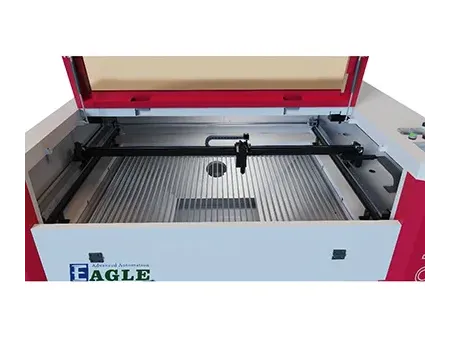

We offer an aluminum slat working table, ideal for hard, flammable materials (such as acrylic, cardboard, and wood), and a fully supported honeycomb working table for processing soft materials (such as paper and textiles). Both tables minimize laser reflection, ensuring clean cut edges.
- *Rotary Axis Unit
The worktable's adjustable height can accommodate an optional rotary axis unit, which allows for circumferential cutting and engraving of tubes or rods.
- Collecting Drawer
After cutting, small parts that fall through the honeycomb or slat worktable are collected in a drawer below, preventing them from being damaged by the laser in subsequent operations. Once the cutting is complete, simply open the drawer to retrieve these parts.
- Single /Double Laser Head
The CO₂ laser machine can be equipped with a single or double laser cutting/engraving head. The double laser head allows for simultaneous cutting of two identical patterns on a single material. This feature contributes to higher throughput and more efficient operations, making it an excellent choice for production environments where time and precision are critical. The spacing between the laser cutting heads can be adjusted at any time with just a screwdriver to match the pattern’s repeat width.
- Design & Machine Control Software
We provide EagleWorks, a comprehensive software solution for creating, editing, optimizing, and processing patterns for laser cutting and engraving, enabling you to operate the laser cutter as easily as a printer.
- High Precision Slide
The laser machine uses linear bearings and slides that are thicker and more durable than those of similar products, ensuring long-term stability of the laser path. This results in less downtime, higher productivity, and increased profitability.
- Reflective Mirror Mounting & Adjustment System
Our reflective mirror mounting and adjustment system is designed for stability and ease of use. In most cases, no alignment is needed after installation, but if misalignment occurs for any reason, the three adjustment screws on each mirror allow for quick and precise realignment.
- STEAM Maker Workshop
STEAM Maker Workshop is an educational institution in San Diego where our general-purpose laser cutting machine is used in their laser education programs.
- MechanicalGIFs.com
MechanicalGIFs.com is a small company that specializes in designing and manufacturing high-quality, unique, and delightful acrylic models of mechanical devices. They utilize our general-purpose laser cutting machine as their primary manufacturing tool.
- Disney gift maker
We met Disney gift maker Bado at the 2016 ISA Expo in Orlando, Florida. He uses our general-purpose laser cutting machine to create exquisite cartoon-themed crafts.
Yes, the worktable features an electric lift function, allowing it to process materials over 8 inches in height.
The machine is equipped with a collecting drawer where the small parts that fall through the honeycomb or slat worktable after cutting are collected. Once the cutting is complete, simply open the drawer to retrieve these parts.
Our laser marking machines are versatile and can be used on a wide range of materials, including metals, plastics, glass, ceramics, and wood.
