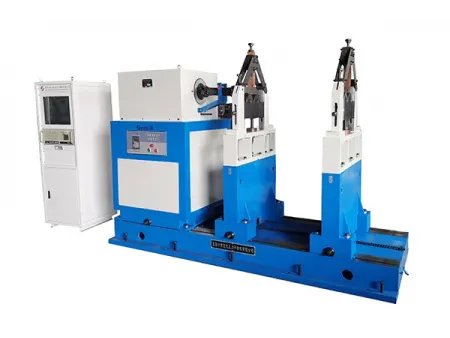

Fan Impeller Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/4-8-fan-impeller-balancing-machine.html

YFW-30000

Hard-bearing balancing machine for dynamic balancing of fan impellers and blowers

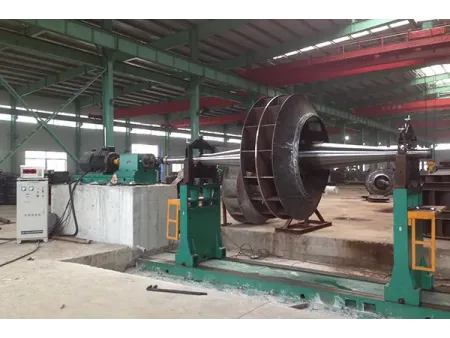

The YFW-30000 is a hard-bearing balancing machine designed for large-scale fan manufacturers. With its exceptionally high driving torque and large rotational diameter capacity, it is ideally suited for balancing very large fan impellers and heavy-duty rotors. It also offers great flexibility in configuration that can be customized with different speed control methods, measurement systems, and other features to match specific industrial applications depending on production capacity, process conditions, and operator requirements.

Specifications

Workpiece weight	2000-30000kg
Accidental overload of each support	16000kg
Max. workpiece diameter	4500mm
Journal diameter of workpiece	80-400mm
Distance between two bearing supports Distance between two bearing supports	6500mm
Balancing speed	180-1400r/min
Min. achievable residual unbalance (eMar)	≤2g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Compatible with both the ZL-220 embedded electrical measurement system and the advanced ZL-2 industrial control system, meeting the needs of different users
ZL-220 system: an embedded microprocessor-based solution with a strong market presence and wide user recognition
ZL-2 system: developed using NI LabVIEW technology, providing an intuitive, user-friendly interface, can be adapted to various operating levels and environments, with extensive expansion and customization capabilities based on user requirements
Durable design ensures stable performance, accurate measurement, and safe balancing of oversized fan rotors.
