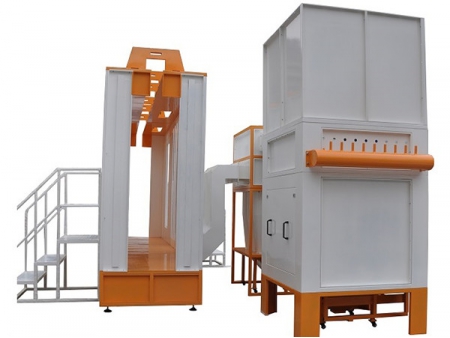

Multi Cyclone Powder Coating Booth
Request a Quote
- Cyclone powder coating booth is optimized for efficient, repeatable powder utilization.
- Engineered with multi cyclone to deliver the highest color change quality, ensures confident and consistent production.
- This automatic spray booth is ideal for high output in automatic powder coating line.
- Can be made of durable powder coated steel, stainless steel, and plastic material. Plastic booth is more recommended for easy cleaning and quick color change.
- Using with our powder feed center achieves fully automatic powder supply and recovery.
Specifications
Details | Operating dimensions | 800 width x 6000 depth x 2000 height mm |
| Weight | 4000 kg |
| Power supply | Electric |
| Nominal power | 15 kW |
| Voltage | 380V/220V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filter quantity | 16 pcs |
| Hang type filters | Easy for change |
| Filter cleaning system | Pneumatic |
Powder Spray Gun

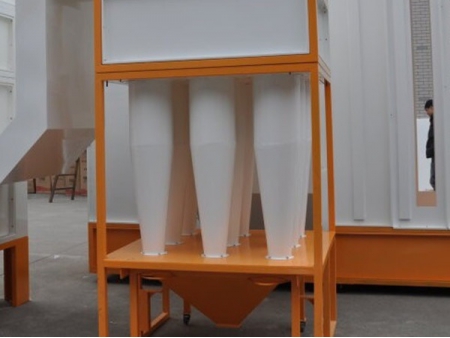

Most powders recovery is completed by cyclone. Cyclone unit maximizes powder utilization rate and optimizes powder recovery up to 98%.
Cartridge Filter Stage
Cartridge filters stage as secondary recovery unit allows to 100% separate the superfine powders from airflow, recirculates clean and filtered air into the booth.

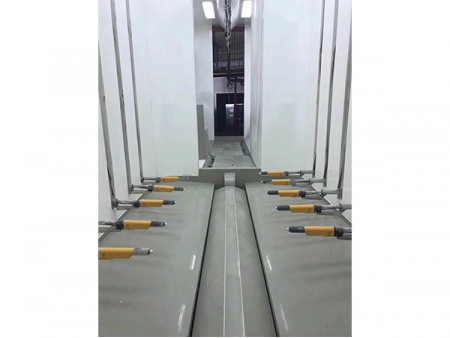

Self-cleaning System
The booth floors are designed with self-cleaning system. The air cleaning system effectively removes the powder accumulated from booth floor and pushes it to the cyclone recovery system
Automatic Coating Station
It allows reciprocators carrying 2-24pcs automatic spray guns to achieve continuous, uniform and quality powder coating.
Manual Coating Station
It’s designed with unrestricted operator access around the product for manual touch up that gets perfect results and simple, easy coating inspection.
