Curved Tempered Glass
Color: clear, ultra clear, bronze, grey, dark blue, dark green, etc.
Thickness: 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 19 mm
Size: custom sizes acceptable, free with maximum size 3660*11000 mm
Standard: GB15763.2 (China), EN12600:2002 (EU), AS/NZS 2208:1996 (Australia) and ASTM C1048 (US)

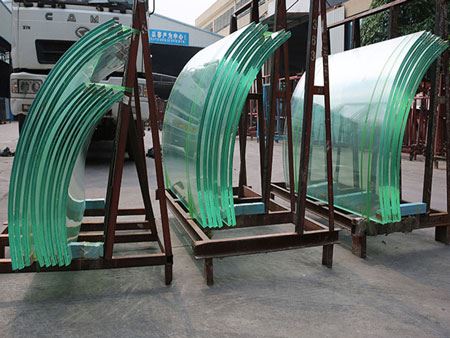

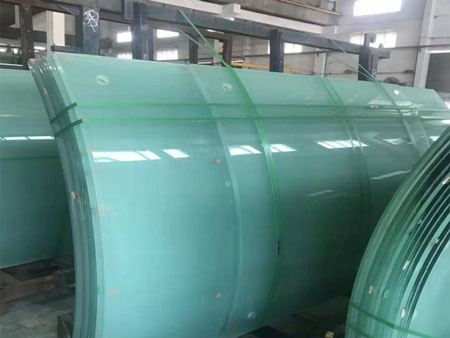

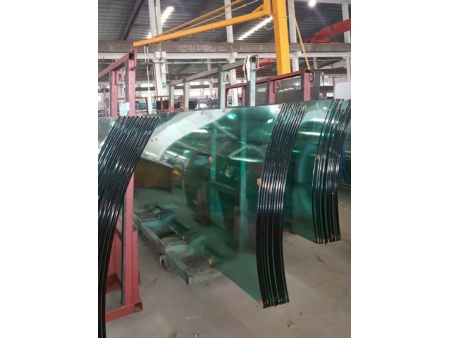

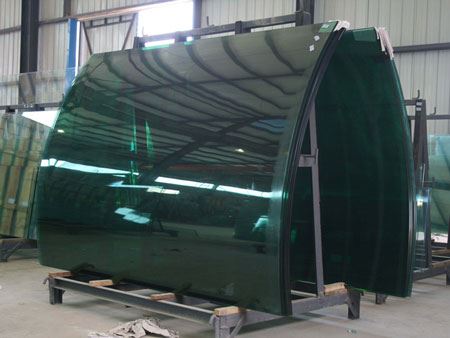

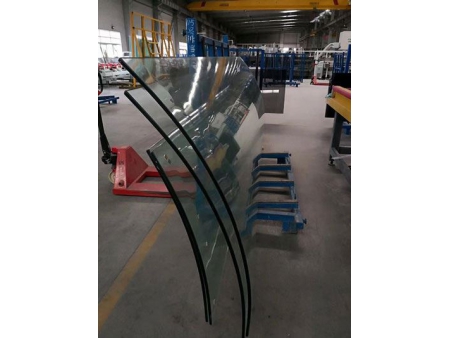

Curved tempered glass, also called bend tempered glass or bent toughened glass, is a type of safety glass that’s made using the same method as tempered glass. To create it, the glass is heated and then rapidly cooled to create compressive stress that increases its strength. This makes curved tempered glass just as strong as tempered glass. However, because it has a unique shape, it also has better resistance to wind pressure compared to tempered glass.
The most common shape for curved tempered glass is an arc. The process starts with float glass being heated until it becomes soft, and then it's bent into the desired shape using either its own weight or external pressure. Afterward, the glass is uniformly and rapidly cooled to create the final product.

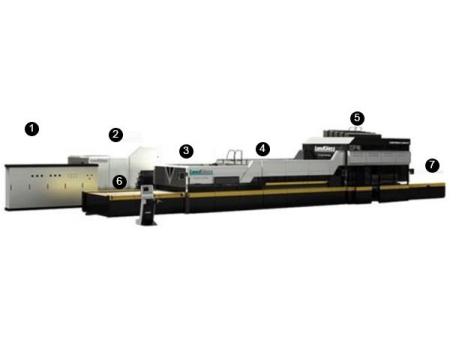

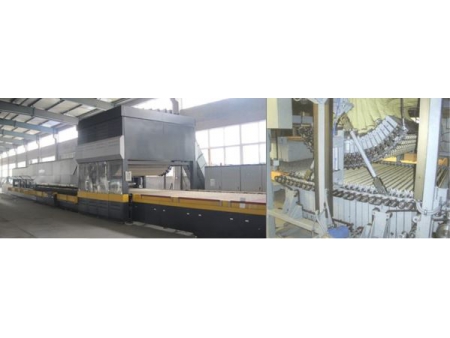

Structural Diagram of Flat/Curved Glass Tempering Furnace- 1. control panel
- 2. blower unit
- 3. cooling unit of flat tempered glass
- 4. heating unit
- 5. cooling unit for curved tempered glass
- 6. unloading section of curved tempered glass
- 7. loading section
- For glass with a thickness of 6mm or less, the bending radius should be at least 1.2 meters.
- For glass with a thickness of 8mm or more, the bending radius should be at least 1.6 meters.
- The arc length should generally not exceed half of a circle.
To calculate the radius of curved tempered glass, you can measure the chord length and height of the curve. If you know the chord length (L), height (h), and radius (R), the formula to calculate the radius is R = [(L/2)^2 h^2]/2h.
- High strength and safety just as flat tempered glass
- Excellent thermal shock resistance, being able to withstand the temperature change of over 250℃.

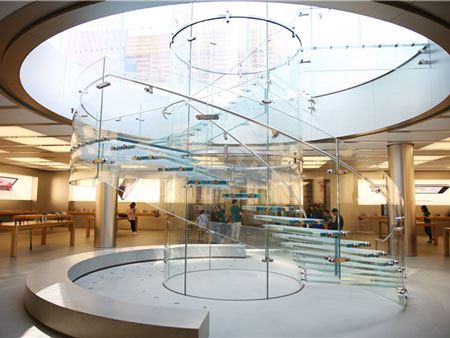

Curved tempered glass is generally used for curved glass curtain walls, skylights, sightseeing elevators, interior partitions, interior decoration, furniture, etc.
