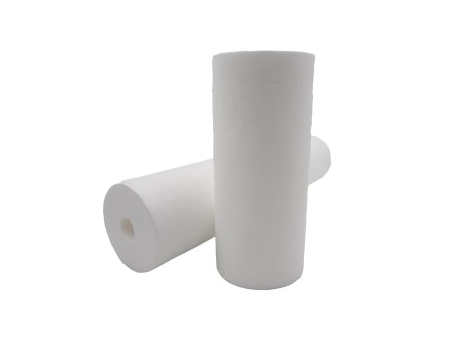

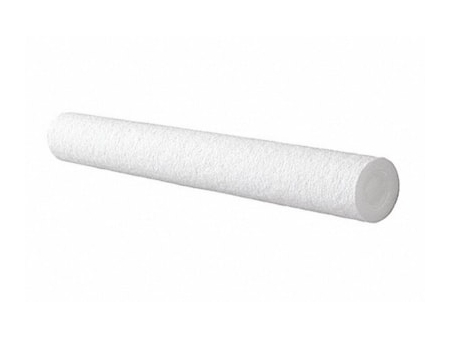

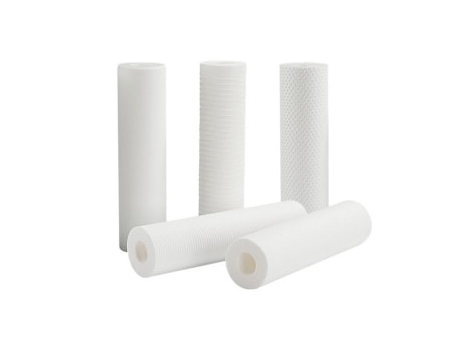

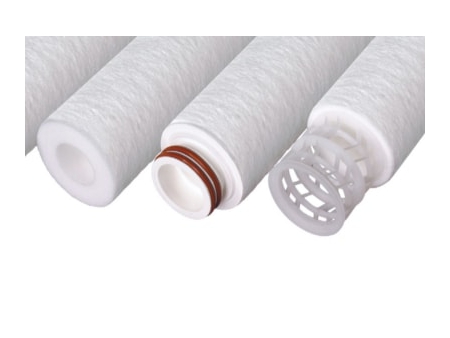

Our melt blown filter cartridges are engineered using innovative polypropylene melt-blown technology, boasting superior mechanical and compressive strength. Designed to excel in demanding applications, they effectively filter high-viscosity and high-solid-content liquid streams. The melt-blown process enhances our filter cartridges' dirt holding capacity, enabling them to tackle higher impurity content. Our filter cartridges are ideal for particle interception, purification, and filtration, offering superior permeability and an economical prefiltration solution.

Materials of Construction
Filter Layer Polypropylene
End Cap Polypropylene
Connection Flat type, 222, 226
Gasket/O-ring Silicone rubber, EPDM rubber, Nitrile rubber, Fluorine rubber
Center Rod Polypropylene
Specifications
Outside Diameter 60mm/65mm/115mm/ (Customizable)
Inside Diameter 20mm/30mm/ (Customizable)
Nominal Rating 1.0/3.0/5.0/10/15/20/25/30/50/80/100/150μm
Length 5", 10", 20", 30", 40", 50", 60"
Max. Pressure Differential 2.0Bar,21℃
Max. Operating Temperature ≤50℃
Max. Operating Temperature 82℃
Flowing Hot Water Sterilization 75℃/30min
Applications
  • Filtration before reverse osmosis water treatment
  • Various precision filtration processes
  • Industrial water and electroplating solution filtration
  • Chemical materials and organic solvent filtration
  • Filtration of acidic and alkaline liquids in industrial and chemical manufacturing processes
