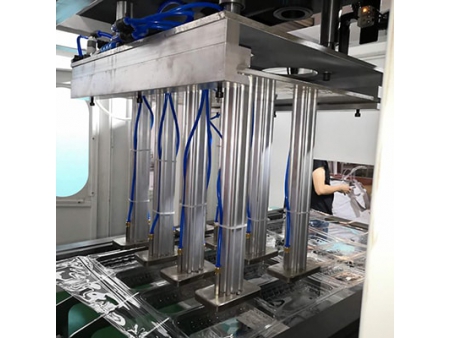

Thermoforming machine for making plastic packaging containers

Boost your packaging capabilities with the positive and negative pressure plastic thermoforming machine. This versatile line accommodates various molds and works seamlessly with materials such as BOPS, PS, HIPS, PVC, PET, PP, and PLA. It efficiently produces plastic trays, boxes, lids, containers, and blister packs, integrating forming, cutting, and stacking processes into one smooth operation.

Applications

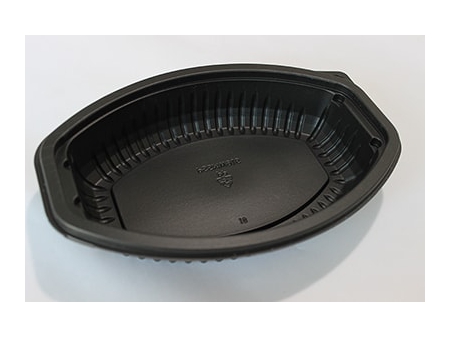

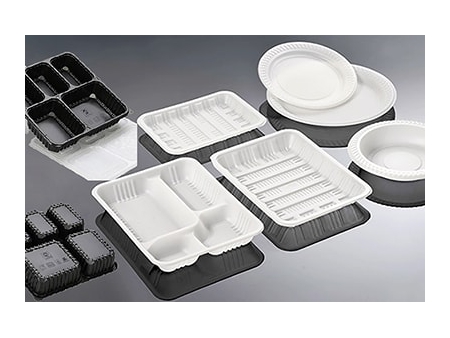

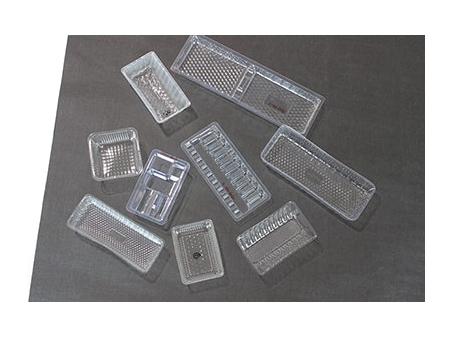

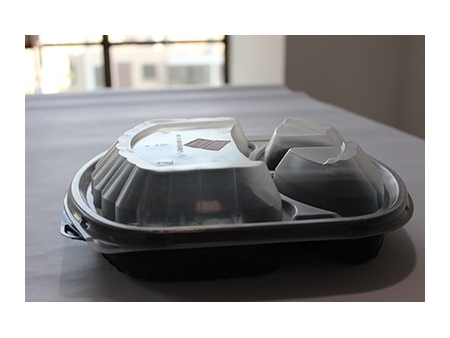

Processes various plastics, including A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC, and barrier materials. Ideal for manufacturing trays, lids, fruit and vegetable boxes, flower pots, seedling trays, and plates. Get in touch today to see how this thermoforming machine can upgrade your plastic packaging production.

Specifications
Sheet thickness 0.2-2mm
Applicable material BOPS, PS, HIPS, PVC, PET, PP, PLA
Max. forming area 680×420mm
Sheet width 400-690mm
Forming depth 120mm
Production capacity 15-30cycle/min
Heating power 70kW
Motor power 4kW×4
Air consumption 0.5-0.8 bar
Total power 80kW
Weight 7.5 ton
Dimensions 7.5×2.4×2.2m
Features
  • Highly standardized design.
  • Strong and durable construction.
  • Flexible production of a variety of items.

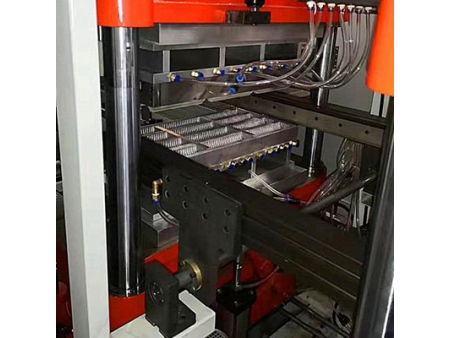

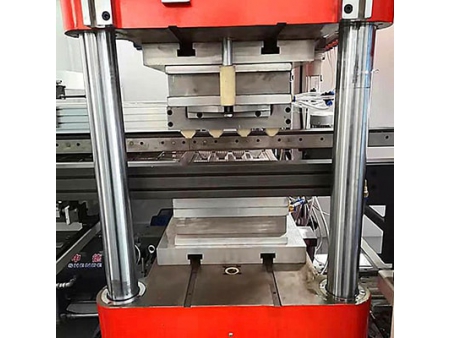

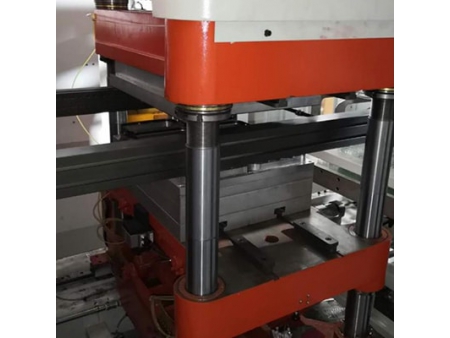

  • Equipped with a four-column press for forming, punching, and cutting, ensuring balanced mold platen pressure.
  • All main moving parts are electrically driven for efficiency and precision.
  • User-friendly software for easy control and operation.
