Request a Quote

Thermoforming machine for making plastic trays, plates, bowls and lids

Boost your production efficiency with the in-mould cutting thermoforming machine. This advanced machine is controlled by a micro PLC for high production efficiency, reaching up to 1500 cycles per hour. Featuring a human-machine interface (HMI), it seamlessly integrates heating, forming, cutting, and stacking into one streamlined process. Perfect for transforming BOPS, HIPS, PS, PVC, PET, and PP plastic sheets into trays, plates, bowls, lids, and more. Get in touch today to see how the in-mould cutting thermoforming machine can enhance your operations.

Applications

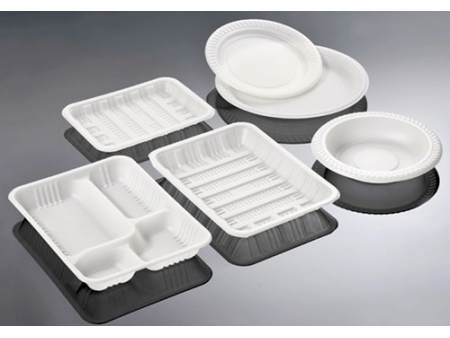

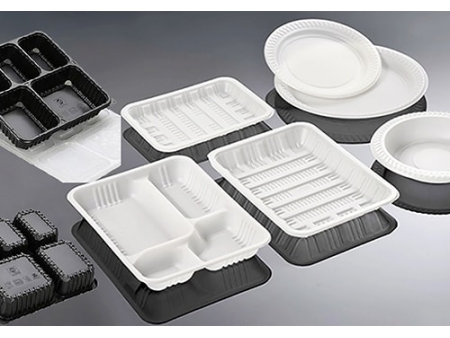

Ideal for producing various boxes, plates, trays, bowls, and lids from BOPS, HIPS, PS, PVC, PET, and PP plastic sheets.

Specifications
Model DB-3021
Max. forming area (L×W) 760×540mm
Max. forming depth 100 mm (pick product from inside the mould)
120 mm (pick product from outside the mould)
Sheet thickness 0.2-1.5 mm
Production capacity 600-1500 cycle/hour
Heating power 180 kW
Heating area 3010×790 mm
Motor power 29 kW
Air pressure 0.7 MPa
Air consumption 3500 L/min
Water consumption 70 liter/min
Power supply Tri-phase, AC 380±15V, 50HZ
Sheet roll diameter 1000mm
Weight 10000kg
Dimensions (L×W×H) Main Machine 7550×2122×2410mm
Feeder 1500×1420×1450mm
Features
  • Multi-zone infrared dual heating and positive-negative thermoforming system
  • Equipped with servo-assisted drive system and dual stacking robot system for stable and precise stacking
  • Equipped with a fault diagnosis system and advanced in-mold cutting technology, enabling zero-error trimming of products.
  • Three operation modes: manual, semi-automatic, and fully automatic
  • Sheet transport system driven by a servo motor
  • Remote control and memory storage capabilities
Details

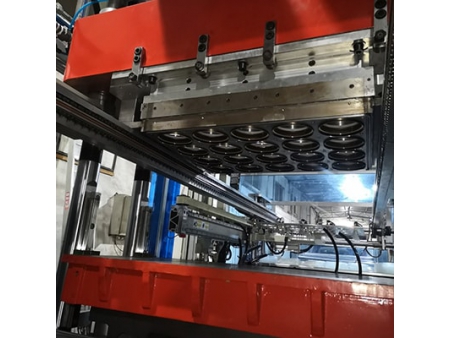

  • In-Mould Forming and Cutting

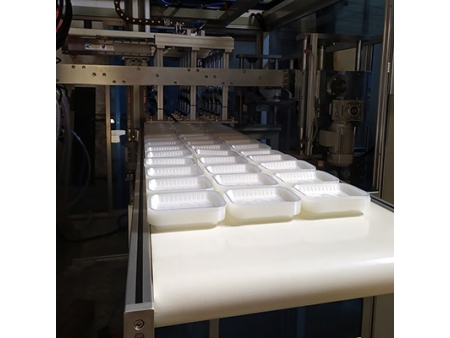

  • Stacking

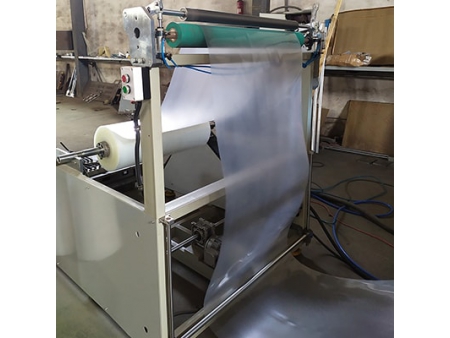

  • Feeding

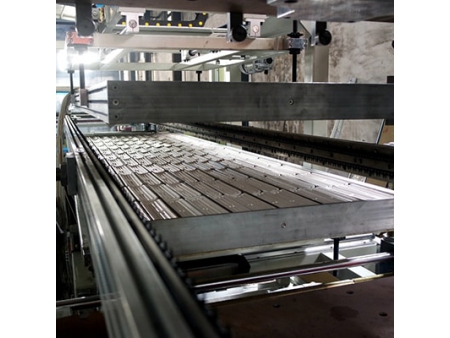

  • Heating

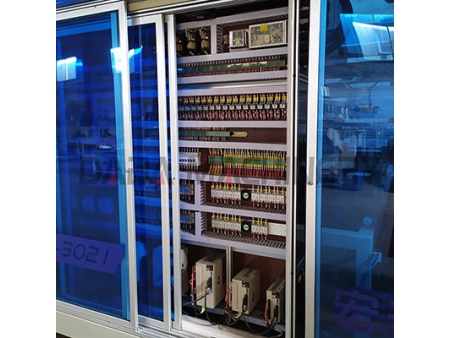

  • Electrical Control
