    1. Max. Die Cutting Size (L×W) 1060×780 mm
    1. Die Cutting Accuracy ±0.1 mm
    1. Max. Speed 7000 sheets/h
    1. Max. Die Cutting Pressure 700t
Specifications Dimensional Drawings

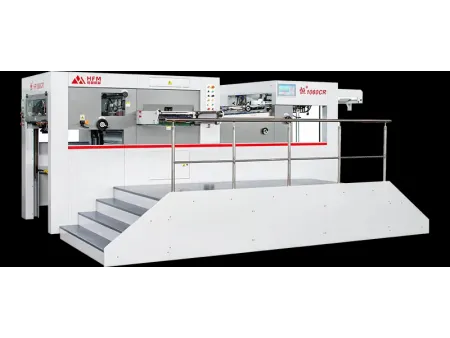

  • Cutting Mode: Heavy duty flatbed die cutting and creasing
  • Max. Sheet Size (L×W) (mm): 1070×790
  • Min. Sheet Size (L×W) (mm): 400×320 (servo feeder is optional, with minimum sheet size of 400×290)
  • Max. Die Cutting Size (L×W) (mm): 1060×780
  • Gripper Margin (mm): 5
  • Sheet Weight (g/m²): 100-2000
  • Number of Heating Zone: 12
  • Max. Speed (sheets/h): 7000
  • Die Cutting Accuracy (mm): ±0.1
  • Max. Die Cutting Pressure (t): 700
  • Max. Pile Height at Feeder (mm): 1580
  • Max. Pile Height at Delivery (mm): 1300
  • Motor Power (kW): 22
  • Total Power (kW): 44
  • Net Weight (t): 18.5
  • Dimensions (L×W×H) (mm): 6310×4072×2261
For detailed dimensional drawings of our machines, please refer to the specific model number. We offer a range of sizes to meet your production needs:

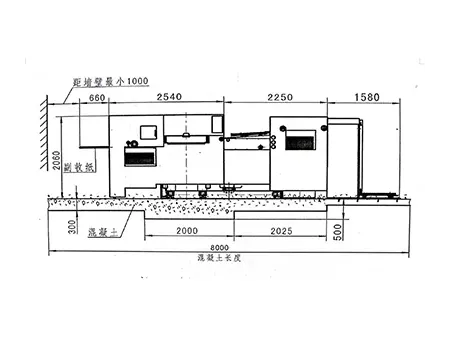

  • 1060 Dimensional Drawing

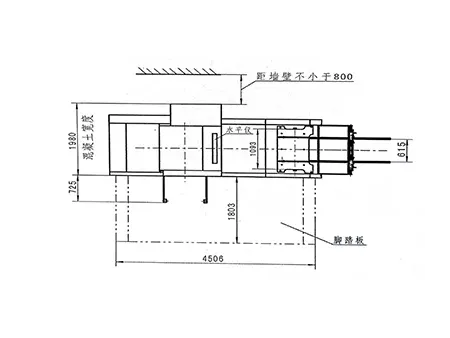

  • 1060 Dimensional Drawing

Developed for high-pressure applications, our heavy duty automatic flatbed die cutting and creasing machine delivers an impressive pressure output of up to 700t. This powerful system ensures a tight fit between the steel rule die and the cutting platen , significantly enhancing cutting precision to accurately reproduce intricate designs and complex shapes. The result is clean, precise edges with minimal dimensional error, even when processing hard materials.

To maximize productivity, the machine is equipped with advanced features such as a pre-coded paper mechanism, an auxiliary paper collection system, and manual sampling functions. These features work together to optimize workflow and reduce downtime, ensuring continuous operation even in high-volume production environments.

Built for versatility, this machine works with thick paperboard, corrugated cardboard, and PVC sheets. This works well for die cutting 3-5mm corrugated cardboard. This machine produces premium cosmetic, cigarette, wine, tea, pharmaceutical, food, and gift boxes with high-quality finishing.

Applicable Materials
  • Paperboard

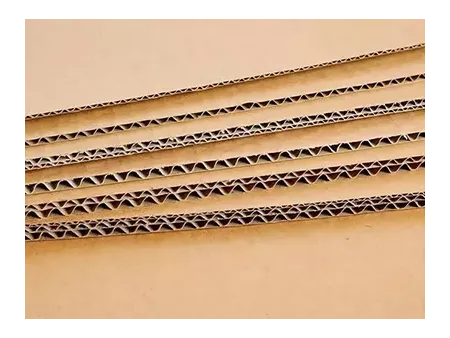

  • Corrugated Cardboard

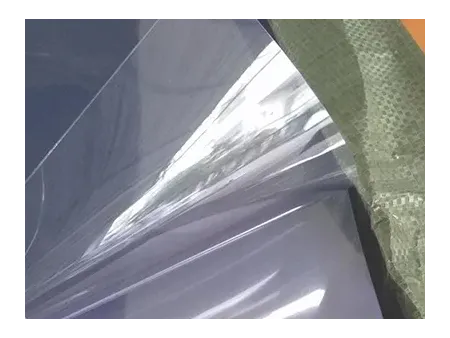

  • PVC Sheet
Applications
This heavy-duty machine is used for creating high-quality cosmetic boxes, cigarette boxes, wine boxes, tea boxes, pharmaceutical packaging, food packaging, gift boxes, and small household appliance boxes.
    Cosmetic Boxes
    Cigarette Boxes
    Wine Boxes
    Pharmaceutical Packaging
    Food Packaging
    Gift Boxes
Key Functions
    1. Pneumatic Quick-Lock for Die Cutting Chase Ensures machine stability and enables rapid locking during die cutting.
    1. Non-stop Sheet Feeding and Collection Maximizes production efficiency by reducing downtime and maintaining continuous operation.
    1. Pneumatic Sampling Allows real-time sample checks without interrupting production, ensuring consistent product quality.
    1. Electric Pressure Adjustment Automatically adjusts pressure based on material characteristics for precise die cutting.
    1. Automatic Lubricating System Provides smooth operation of all moving parts by reducing friction and extending equipment life.
Configurations
    1. Feeder

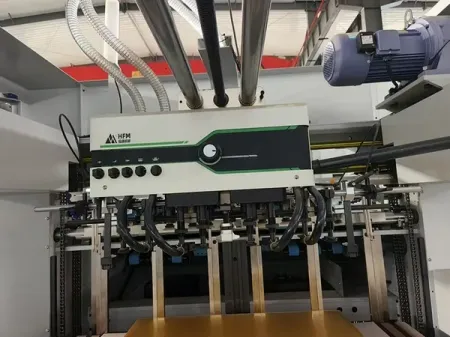

      Equipped with a high-precision four-suction, five-feed feeder head, the feeder adapts to thin paper, paperboard, and corrugated cardboard, ensuring consistent feeding even at high speeds. A gantry-type pre-feed system alternates between the main and auxiliary paper feed tables, ensuring smooth and non-stop production.

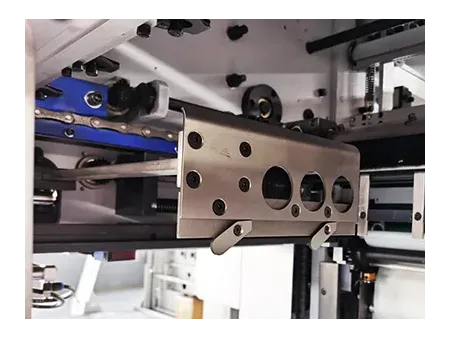

    1. Feeding Structure

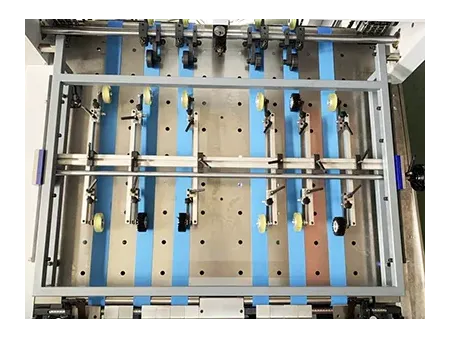

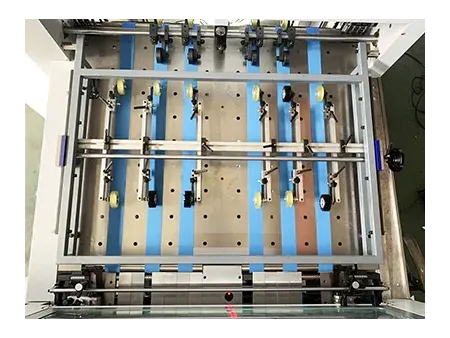

      Utilizes a dual-purpose push-pull side lay system for stable sheet positioning at high speeds. A rapid adjustment mechanism for the feeding wheels further enhances efficiency.

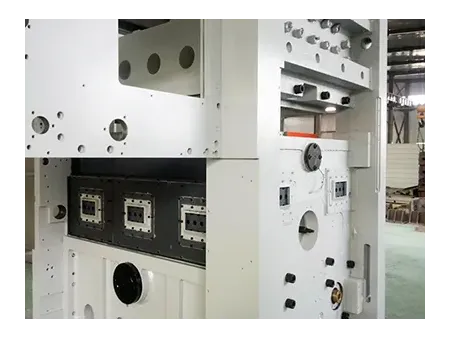

    1. Deep Pressure Embossing Die Cutting Unit

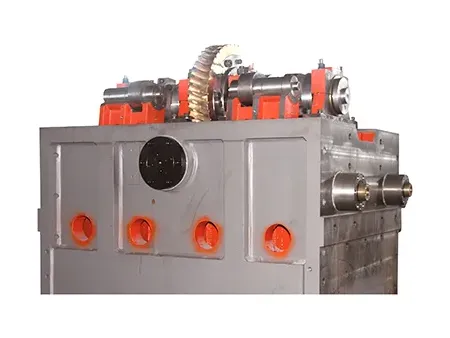

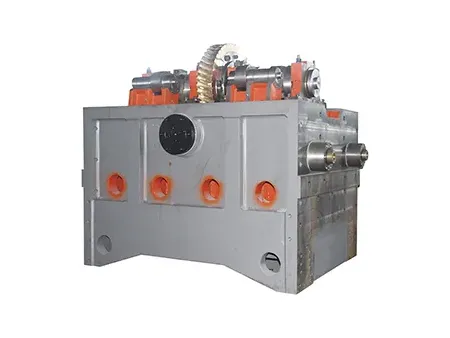

      Features a deformation-resistant, heat-resistant cast iron honeycomb plate and a pressure adjustment system with 12 independently controlled heating zones. This design guarantees an effective embossing effect while maintaining precise die cutting.

    1. Delivery Station

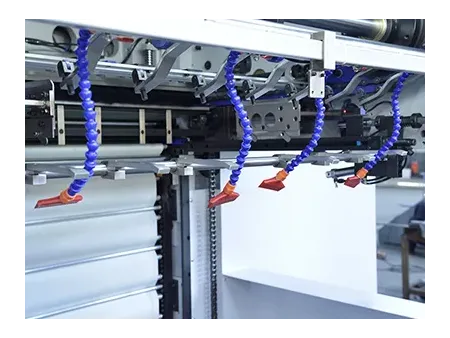

      Uses a brush and rear air-blowing system to maintain stable sheet alignment. It is equipped with an electric auxiliary paper collection system for continuous production and a pneumatic sampling function for real-time quality checks. An optional counting and marking (tab insertion) feature is available for added convenience.

    1. Vacuum Pump

      Outfitted with a BECKER vacuum pump from Germany, the machine uses electrical and transmission components from globally recognized brands such as ABB, SMC, iWiS, Siemens, Mitsubishi Electric, Fuji Electric, YASKAWA, OMPI, BECKER, etc. The electrical cabinet is cooled by industrial air conditioning, ensuring stable, continuous operation.

    1. HMI Interface

      The HMI interface allows operators to monitor real-time machine status, display fault notifications, and access troubleshooting methods, making operation straightforward and efficient.

Consumables

To maintain optimal performance and longevity of your machine, we recommend using genuine HFM consumables. We offer a complete range of high-quality replacement parts: Brush wheel, suction cup, rubber wheel, sheet separator, drive/timing belt, gripper bar, and movable gripper.
