with Pneumatic Sheet Support System

Excellent cut, Perfect speed

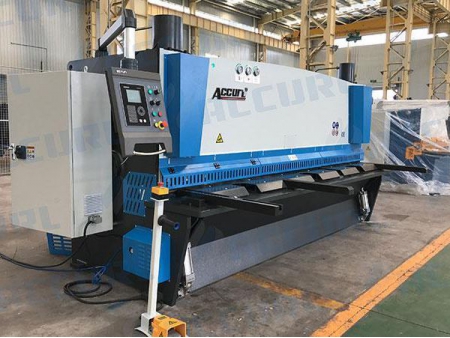

The ACCURL CNC MS8 hydraulic guillotine shear cuts various metal sheets in order to maintain the highest production capacity, and does so with maximum precision and quality.

More than just cutting

The CNC MS8 hydraulic guillotine shear was developed by expert engineers here at ACCURL, and reflects innovative technology in all aspects.

Standard Equipment
  • Wear resistant blades for top blade- 4 cutting edges and bottom blade- 4 cutting edges
  • The portable foot pedal is suitable for both single and automatic cutting
  • CNC controlled hydraulic blade gap adjustment system.
  • CNC controlled cutting angle adjustment system.
  • DELEM DAC360s CNC controller System
  • CNC controlled motorized back gauge system.
  • 1000 mm motorized back gauge system with 0.1 mm accuracy.
  • Front support arms with T slot, ruler and flip stop.
  • Squaring arm.
  • Scales with metric and inches.
  • Cutting line illumination and shadow line.
  • Central lubrication system.
  • The front finger protection guard meets CE standards, with a 1 meter left side, collapsible structure and switch protection.
  • Rear sliding plates.
  • Front sliding plates with ball bearings on the table.
Better Cuttings
  • Back gauge adjustment according to blade gap.
  • Back gauge retraction feature
  • Sub-program and programming loop
  • Sequence repeat function.
  • Automatic calculations for cutting functions based on material specifications
  • More cutting sequence and programming memory.
Specifications
Model ACCURL MS8-6x3200 (3200m x 6mm)
DELEM CNC Control Blade Gap Rake Angle CNC Back Gauge
Cutting Capacity 6mm Carbon Steel
4mm Stainless steel
Cutting Length 3200 mm
Rake Angle 0.5°~2.5°
Throat Depth 130 mm
Working table height 860mm
Blades Length 3300mm
Stroke Per Minute 12~25/min
Holddowns 17PCS
Back Gauge Range 800mm
Motor Power 7.5kW
Oil Tank Capacity 320Lts
Overall dimensions 4200x2050x2250mm
Machine weight 8950 Kgs

The best cutting results ensure you can cut longer and narrower parts than a standard MS8 cut series.

Detailed Pictures

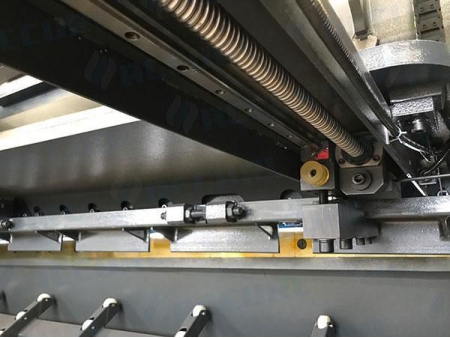

  • ACCURL 800mm CNC Backgauge

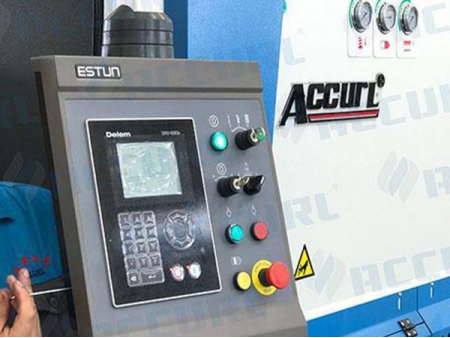

  • DELEM DAC360s CNC System

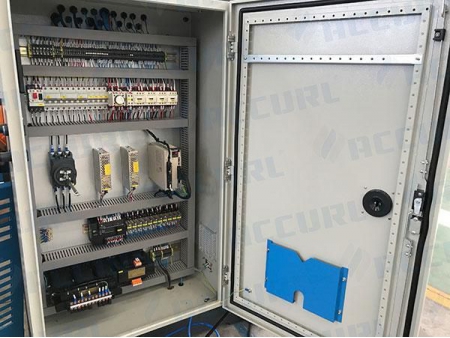

  • Electrical cabinets with Schneider Electric and Yaskawa servo drive

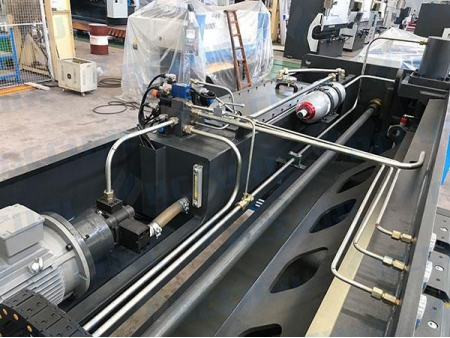

  • Hydraulic Guillotine with Siemens motor and Rexroth Hydraulic System

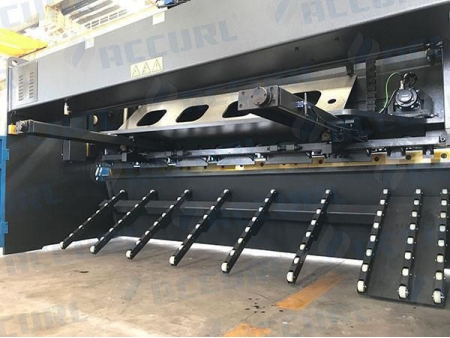

  • Monoblock type pneumatic sheet support system
