Thicken Twill Weave Self-Closing Wrap
Request a Quote
ST2435
- Material: Polyester (PET)
- Color: Black
- Operating Temperature: −40°C to 150°C
- Melting Point: 240 ±10°C
- Flame Retardancy: <100 mm/min (FMVSS 302)
- Abrasion Resistance: Grade 6, >30,000 cycles
- Cutting Method: Hot cutting
- Packaging: Paper reel
Now

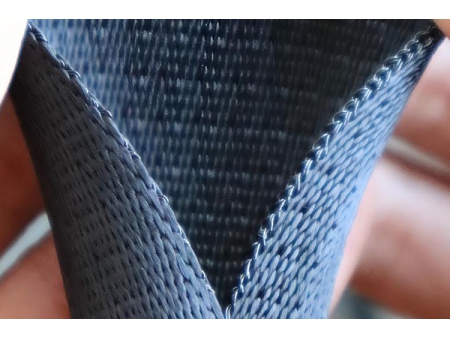

ST2435 series is a twill-weave self-closing wrap woven from PET monofilament and multifilament yarns. The wrap offers excellent abrasion resistance and effective dust protection, while the open design allows for tool-free installation.
Applications

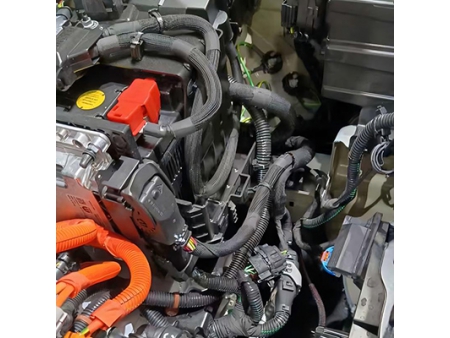

This self-closing wrap is suitable for wire harnesses and hoses in automotive and heavy machinery applications, particularly where enhanced abrasion protection is critical.
Certifications
Parameters
| Model | Diameter (mm) | Thickness (mm) | Packaging Length (m/reel) |
|---|---|---|---|
| 7 | 1.6±0.2 | 100 | |
| 10 | 1.6±0.2 | 50 | |
| 13 | 1.6±0.2 | 50 | |
| 16 | 1.6±0.2 | 50 | |
| 19 | 1.6±0.2 | 50 | |
| 25 | 1.6±0.2 | 25 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
