Horizontal Balancing Machine
Request a Quote
YYQ-300/YYQ-500

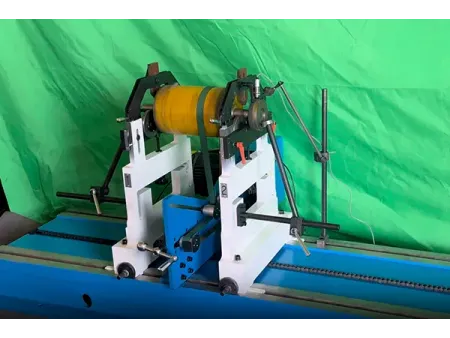

Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 1500mm and weight of 8-500kg
- Handles a wide range of rotors with a belt drive setup.
- H-type support frame provides strength, stability, and reliable operation.
- Unbalance values are displayed directly in grams for quick reading.

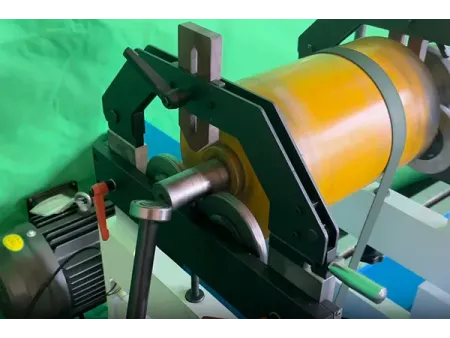

- Belt drive design makes loading and unloading simpler and faster.
- The measuring system supports multiple methods and up to 10 support configurations, with options for weight correction and forward/reverse rotation.
Applications
Widely used for balancing motor rotors, centrifuge rotors, and small to medium blower rotors. They are also used for machine tool spindles, textile machinery parts, internal combustion engines, and other rotating components in electronics and machinery.
- Motor rotors balancing
- Centrifuge rotors balancing
Specifications
| Model | | |
| Workpiece weight | 8-300kg | 10-500kg |
| Max. workpiece diameter | Ø1200mm | Ø1500mm |
| Journal diameter of workpiece | Ø10-Ø90mm | Ø10-Ø90mm |
| Distance between two bearing supports | 120 - 1800mm | 120 - 2500mm |
| Balancing speed | 250-3000r/min | 250-3000r/min |
| Min. achievable residual unbalance (eMar) | 0.5g.mm/kg | 0.5g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% | ≥90% |
Features
- Before starting, operators only need to input known parameters such as the distance and radius of the two correction planes into the measuring unit. Once the rotor begins to rotate, the unbalance value and angle are displayed directly.

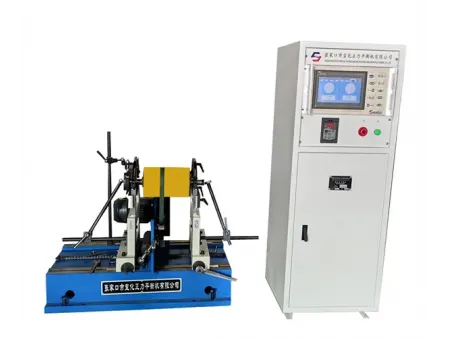

- Equipped with advanced measuring systems, including the ZL-220 embedded dynamic balancing measuring system and the ZL-2 industrial control computer measuring system.
Examples of Workpieces Our Machines Can Balance
- Motor rotors
- Rollers
- Standard rotors
- Motor rotors
