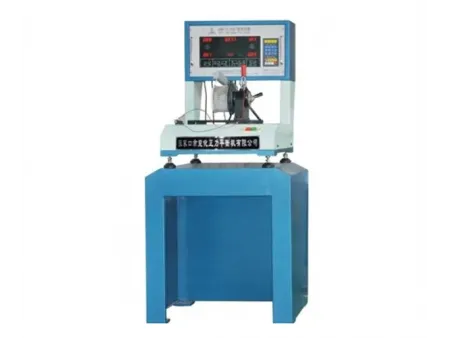

Hard-bearing balancing machine ideal for balancing small, high-speed components such as cooling fans.
Self-drive design uses the rotor’s own power, removing the need for external drive devices.
Workpieces can be tested directly without taking them apart, which makes the process quicker and easier.
Compact design supports workpieces up to 5 kg while ensuring stable operation and reliable performance.
Equipped with a high-sensitivity measuring system, achieving unbalance resolution within 0.3 g·mm/kg for precise results.

Applications

Designed for cooling fan blades and coil fans, this model provides accurate dynamic balancing to improve stability and extend service life.

Specifications

Workpiece weight	0.5-5kg
Max. workpiece diameter	Ø350mm
Min. distance between two bearings	30mm
Max. distance between two bearings	500mm
Journal diameter of workpiece	Ø3-Ø24mm
Balancing speed	180-20000r/min
Min. achievable residual unbalance (eMar)	≤0.3g.mm/kg
Unbalance reduction ratio (URR)	≥90%

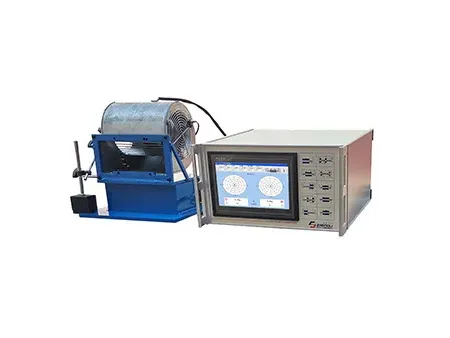

Dynamic balancing measuring system	ZL-220 (digital display type) ZL-210 (touch screen type)

Examples of Workpieces Our Machines Can Balance

Features

The digital display shows the operating speed, support mode, and both the magnitude and phase of the correction.
Includes a built-in self-diagnosis function that accurately detects faults.
It can store size parameters for up to ten different workpiece specifications, to switch between parts without repeated input.
An indexing function helps locate unbalance positions quickly on workpieces that cannot be machined at any angle.
Calibration and fixture eccentricity compensation ensure greater accuracy during random inspections and adjustments.
Users can choose whether to correct unbalance by adding or removing weight.
The balancing machine can produce standard electrical rotors, which makes it easier for users to perform their own checks and adjustments.
An optional panel printer allows real-time printing of balance reports.
An automatic positioning system is also available as an option.
