Horizontal Balancing Machine
Request a Quote
YYW-1000

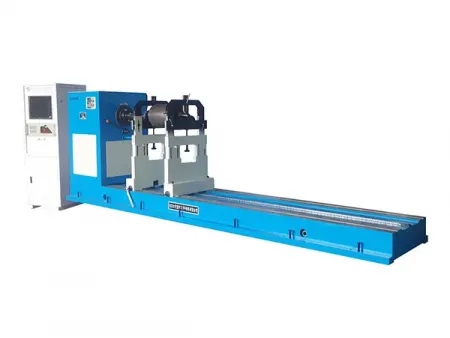

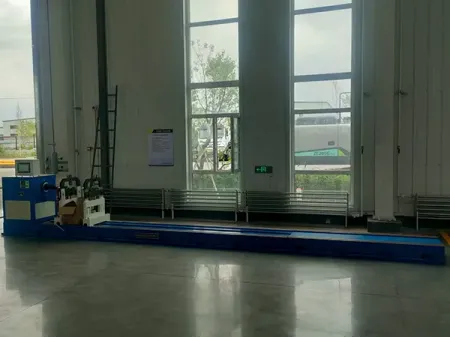

Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 1600mm and weight of 20-1000kg
- This horizontal hard-bearing balancing machine is suitable for components up to 1000 kg in weight and 1600 mm in diameter.
- Uses a hard-bearing structure and a high-precision measuring system that can detect unbalance as small as 1 g·mm/kg.
- Quick positioning for different shaft sizes, making setup more efficient.
- Dual-plane measurement and real-time digital display improve accuracy and reliability during operation.
Applications
Suitable for balancing a wide range of medium-sized components, including motor rotors, pump rotors, centrifuge rotors, small and medium blower rotors, machine tool spindles, and textile winding rotors.
- Motor rotors balancing
- Pump rotors balancing
- Centrifuge rotors balancing
Specifications
| Workpiece weight | 20-1000kg |
| Max. workpiece diameter | Ø1600mm |
| Journal diameter of workpiece (standard roller carriage) | Ø15-120mm |
| Distance between two bearing supports | 160-2000mm |
| Balancing speed | 180-1000r/min |
| Min. achievable residual unbalance (eMar) | 1g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
Features
- Integrated H-type support frame with a lightweight yet reliable structure, offering low damping and high rigidity in the vibration system.
- All external components use internationally recognized brands, including motors, frequency converters, rolling bearings, and low-voltage electrical parts.
- Driven by a universal joint and AC motor combination. Once parameters such as the distance between correction planes, the distance from correction planes to supports, and the radius are set, unbalance value and phase can be displayed accurately in a single run.
Examples of Workpieces Our Machines Can Balance
- Fan impellers
- Agricultural knife shafts
- Corn threshing machine shafts
- Starch dryer rotors
- Corn harvester rotors
- Agricultural fan impellers
- Industrial fan impellers
- Straw returning machine knife shafts
- Slurry pump rotors
- Standard rotors
