Carbon Fiber Impregnating Adhesive
Structural Adhesives
Strong construction adhesives for penetration bonding of carbon fiber fabric and plate to concrete surface for structural strengthening
The carbon fiber impregnating adhesive is a two-component, solvent-free, modified epoxy resin, specifically formulated for penetration bonding of carbon fiber materials to concrete substrates in structural reinforcement applications. It offers excellent wetting properties, ensuring full impregnation and adhesion of carbon fiber fabric or plates. The adhesive is engineered for long-term durability, with strong abrasion resistance, anti-corrosion performance, and outstanding mechanical strength. Its thixotropic behavior minimizes sagging, making it ideal for vertical and overhead applications, where consistent coverage and bonding quality are critical.
Commonly used in the installation of carbon fiber reinforcement systems, this adhesive plays a key role in increasing the load-bearing capacity and extending the service life of structural elements.
Certifications & Standards
- Batch Quality Inspection Report
- Flammability Classification Report
- Material Safety Data Sheet
- Ethylenediamine Content Analysis Report
- Thermal Aging and Heat Deformation Resistance Report
- Mechanical Performance Report for Underwater Conditions
| Property | Standard Requirement | Test Result |
| Tensile strength | ≥38MPa | 49.8MPa |
| Modulus of elasticity in tension | ≥2400MPa | 3200MPa |
| Elongation | ≥1.5% | 1.8% |
| Bending strength | ≥50MPa,and not in fracture damage form | 70.5MPa,and not in fracture damage form |
| Compressive strength | ≥70MPa | 79.6MPa |
| Steel-to-steel tensile shear strength | ≥14MPa | 20.8MPa |
| Steel-to-steel bonding tensile strength | ≥40MPa | 43.8MPa |
| Steel-to-steel T impact peeling length | ≤20mm | 0mm (no crack) |
| Steel-to-C45 concrete positive tensile strength | ≥2.5MPa,with cohesive failure of concrete | 3.5MPa,with cohesive failure of concrete |
| Heat distortion temperature | ≥65℃ | 66.4℃ |
| Nonvolatile content | ≥99% | 99.4% |
This adhesive is suitable for the bonding and saturation of various fiber fabrics used in structural reinforcement, including:

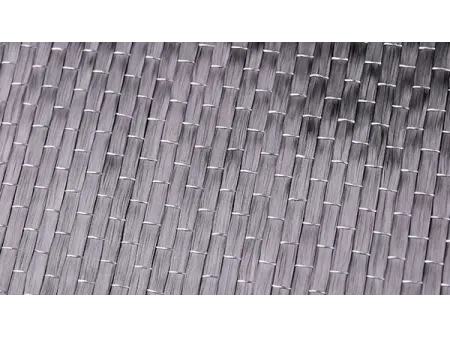

- 200g carbon fiber fabric
- 300g carbon fiber fabric
- Basalt fiber fabric

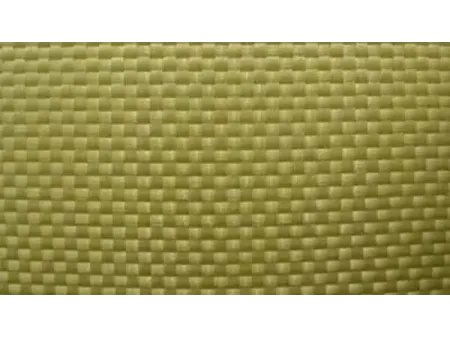

- Aramid fiber fabric
- Hybrid fiber fabrics
- Other composite reinforcement fabrics
- Formulated for low-temperature conditions, maintaining excellent penetration even at -5 °C
- High tensile and bond strength ensures reliable adhesion and structural performance under demanding conditions
- Long-term durability under stress, proven resistance to moisture and heat aging for up to 50 years, with zero failure under sustained load testing
