Mechanical Presses
Request a Quote
The straight side crank press delivers a powerful 630-ton capacity with stroke lengths of 30-40 mm and operating speeds of 80-200 strokes per minute. It features a spacious 3400×1300 mm worktable and a 2800×450 mm scrap outlet, ideal for large tooling and high-precision metal stamping. Designed for demanding production environments, this high-speed metal stamping press ensures superior rigidity, accuracy, and stability during continuous heavy-duty operations.

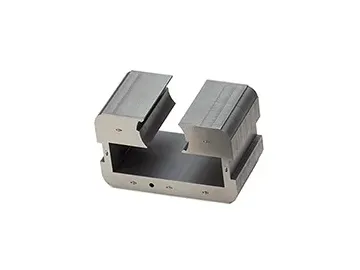

Samples of Stamped Parts
This high-speed press is widely used in automotive manufacturing, motor production, household appliance fabrication, and general metal processing industries.
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Hardware component stamping

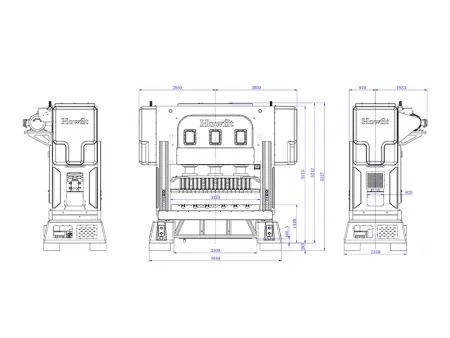

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 6300 |
| Stroke (mm) | 30/40 |
| Stroke speed (spm) | 80-200 |
| Shut height (mm) | 400-450 |
| Worktable size (bolster) (mm) | 3400×1300 |
| Slide area (mm) | 3300×1150 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 2800×450 |
| Motor (kW) | 90×6P |
| Machine weight (ton) | 125 |
