The straight side crank press delivers 550 tons of pressing capacity with a 30 mm stroke and a high-speed range of 100-350 strokes per minute. It features a 3000×1500 mm worktable and a 2600×400 mm scrap outlet, equipped with a 75 kW main motor and a 3.7 kW die height adjustment motor. Its rigid frame and precise motion control make it ideal for large-size molds and high-accuracy metal stamping applications.

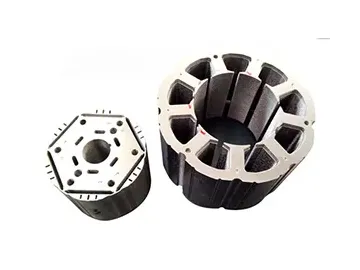

Samples of Stamped Parts

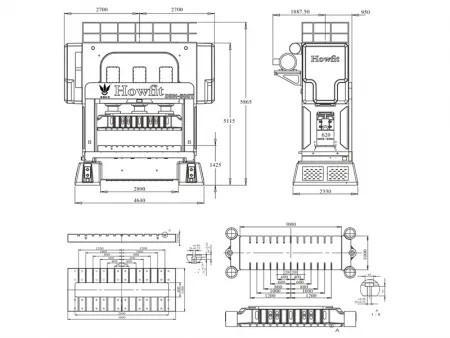

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 550ton |
| Rated capacity point | 3.2mm |
| Stroke | 30mm |
| Stroke speed | 100-350 strokes per minute |
| Worktable size (bolster) | 3000×1500mm |
| Scrap hole size | 2600×400mm |
| Slide area | 3000×1500mm |
| Die height adjustment motor | 3.7kW |
| Main motor | 75kW |
| Dimensions | 4260×2300×5585mm |
| Total weight | approx. 100ton |
