Tea Bag Packaging Machine (Inner and Outer Bag, 2 in 1)
Request a Quote
LQ-NT-3
Tea packaging machine for packing tea leaves and herbal with both inner and outer bags
Our 2-in-1 tea bag packaging machine packs tea leaves and herbal products into both inner and outer bags. This packaging system handles both flat and pyramid tea bags, accommodating a wide range of products including broken leaf tea, ginseng essence, diet tea, wellness tea, medicinal tea, tea leaves, and herbal beverages. By packaging different types of tea in one bag, it ensures that each product retains its unique flavor and quality. This packaging machine not only simplifies the tea packaging process but also maintains the integrity of the tea leaves and herbs, making it ideal for businesses focused on delivering high-quality tea products.
Main Components

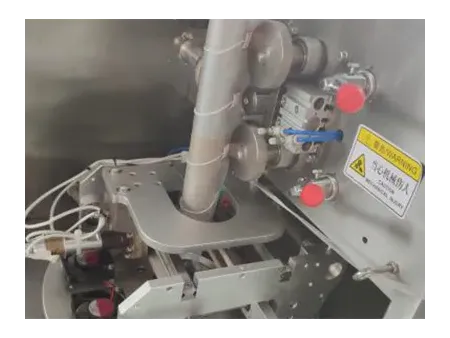

- Sealing Part

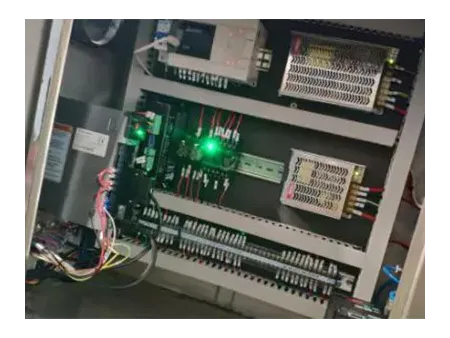

- Cabinet

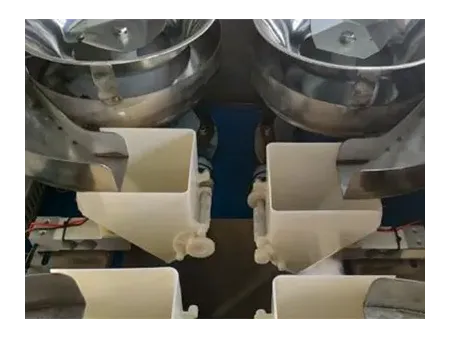

- Electronic Weighing System

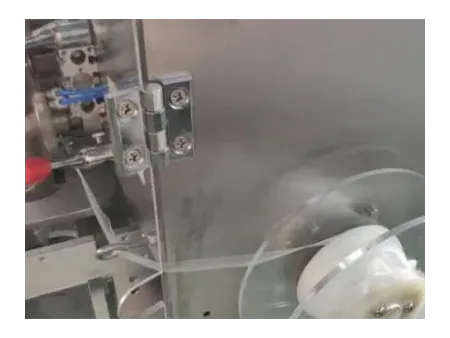

- Waste Film Collector
Specifications
| Working Speed | Approximately 45 bags/min |
| Inner Bag Film | 120mm, 140mm, 160mm, 180mm |
| Bag Type | Pyramid bag or flat bag |
| Sealing Method | Inner bag: ultrasonic sealing |
| Outer bag: heat sealing | |
| Outer Bag Size | Length: 80-140mm Width: 70-120mm |
| Weight Range | 0.5-20g |
| Filling Accuracy | ±0.2 grams/bag (depending on the coffee material) |
| Weighing System | Weigher |
| Max. 6 heads weigher | |
| Compressed Air | 0.6 MPa, 200L/min |
| Power Supply | 220V, 50Hz, 1Ph, 2kW |
| Weight | 719kg |
| Overall Dimensions | 2090mm×1397mm×2360mm |
Features
- Specifically designed for pyramid tea bags, ensuring optimal shape and sealing
- PLC and touch screen interface make operation easy and user-friendly
- High capacity with speeds of 2400 - 3600 bags per hour for inner bags and 2100 - 2700 bags per hour for outer bags
- Inner and outer bag systems can operate independently, offering flexibility in packaging
- Optional nitrogen device keeps tea fresher for longer periods, extending shelf life
- Optional date printing capability for added convenience in tracking and inventory management
