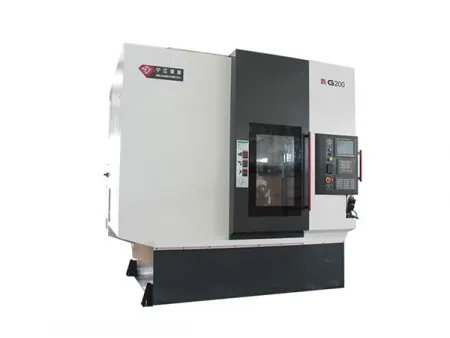

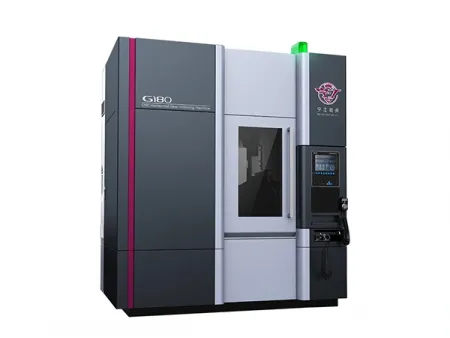

CNC Vertical Gear Hobbing Machine
Request a Quote
- Max. working diameter (mm): Ø160
- Max.working module (mm): 3
- Max. Workpiece Diameter spindle speed (r/min): 400
- Max. hob spindle speed (r/min): 2000
- Hob shifting length (Y-axis) (mm): 100
- Z-axis travel (mm): 250
- Hob head swing angle (°): ±45
- Min. tooth number (teeth): 3
- Max. hob size (diameter×length) (mm): ∅80×100
- Total power (kVA): 14
- Overall dimensions (L×W×H) (mm): 2160×3670×2580
- Machine weight (t): 6
- Max. working diameter (mm): ∅180
- Max.working module (mm): 4
- Max. Workpiece Diameter spindle speed (r/min): 600
- Max. hob spindle speed (r/min): 2200
- Hob shifting length (Y-axis) (mm): 150
- Z-axis travel (mm): 300
- Hob head swing angle (°): ±45
- Min. tooth number (teeth): 3
- Max. hob size (diameter×length) (mm): ∅110×160
- Total power (kVA): 30
- Overall dimensions (L×W×H) (mm): 2270×2580×2760
- Machine weight (t): 7
- Max. working diameter (mm): ∅200
- Max.working module (mm): 4
- Max. Workpiece Diameter spindle speed (r/min): 500
- Max. hob spindle speed (r/min): 3500
- Hob shifting length (Y-axis) (mm): 220
- Z-axis travel (mm): 350
- Hob head swing angle (°): ±45
- Min. tooth number (teeth): 3
- Max. hob size (diameter×length) (mm): ∅110×220
- Total power (kVA): 40
- Overall dimensions (L×W×H) (mm): 2700×3745×3100
- Machine weight (t): 11
- Max. working diameter (mm): ∅260
- Max.working module (mm): 4
- Max. Workpiece Diameter spindle speed (r/min): 150
- Max. hob spindle speed (r/min): 1500
- Hob shifting length (Y-axis) (mm): 160
- Z-axis travel (mm): 300
- Hob head swing angle (°): ±45
- Min. tooth number (teeth):
- Max. hob size (diameter×length) (mm): ∅130×180
- Total power (kVA): 37
- Overall dimensions (L×W×H) (mm): 2420×3460×3060
- Machine weight (t): 9
Features
- These vertical CNC gear hobbing machines cover multiple size options and are built for high accuracy, efficient cutting and stable operation.
- All models work with the FANUC Oi-MF Plus control system, using a six-axis layout with four-axis interpolation in a vertical configuration for precise motion control.
- The hob spindle reaches 1500 r/min, while the workpiece spindle reaches 150 r/min. A 160 mm cutter-shift travel supports deeper tooth profiles when required.
- The X and Z axes use precision ball screws and sliding guideways, helping maintain good positioning accuracy and rigidity during continuous machining.
- The CNC vertical gear hobbing machines can produce cylindrical gears, worm wheels, sprockets, timing-belt pulleys, flexsplines and splined shafts. Radial hobbing is available for worm-wheel machining, making the equipment suitable for commercial-vehicle gears, passenger-vehicle gears and construction-equipment gears in the small-to-medium module range.
- Accuracy levels reach GB7 during mass production and GB6 for precision cutting.
- The interface includes software made for gear cutting, where operators can set parameters, adjust the lead and fine-tune the cut through a simple, easy-to-read panel.
Applications
Suitable for medium- and large-module gear machining, with typical industries and workpiece types including:
- Industries: motorcycles, industrial robots, gear reducers, aerospace components, automotive transmissions (including small passenger-car gearboxes up to m≤6), and construction machinery.
- Workpieces: spur and helical cylindrical gears, crowned gears, gears with small tapers, splined shafts, sprockets and worm wheels. Suitable for high-precision or high-efficiency machining of steel gears up to module 6.
Comprehensive high-precision gear machining solutions for a wide range of industries
- Positioning accuracy: 0.002 mm
- Hob spindle speed: 15,000 r/min
- Workpiece spindle speed: 2,000 r/min
- CPK: ≥1.33
Sample Display
EV steering gears
Automotive gears
Special-shaped gears
Technical Specifications
| Model | | | | |
| Max. working diameter (mm) | Ø160 | ∅180 | ∅200 | ∅260 |
| Max.working module (mm) | 3 | 4 | 4 | 4 |
| Max. Workpiece Diameter spindle speed (r/min) | 400 | 600 | 500 | 150 |
| Max. hob spindle speed (r/min) | 2000 | 2200 | 3500 | 1500 |
| Hob shifting length (Y-axis) (mm) | 100 | 150 | 220 | 160 |
| Z-axis travel (mm) | 250 | 300 | 350 | 300 |
| Hob head swing angle (°) | ±45 | ±45 | ±45 | ±45 |
| Min. tooth number (teeth) | 3 | 3 | 3 | |
| Max. hob size (diameter×length) (mm) | ∅80×100 | ∅110×160 | ∅110×220 | ∅130×180 |
| Total power (kVA) | 14 | 30 | 40 | 37 |
| Overall dimensions (L×W×H) (mm) | 2160×3670×2580 | 2270×2580×2760 | 2700×3745×3100 | 2420×3460×3060 |
| Machine weight (t) | 6 | 7 | 11 | 9 |
Standard Components
FANUC 0i-MF/H CNC system
Magnetic chip conveyor
Optional Configuration
Automatic loading and unloading unit for handling disc-type gears and similar workpieces without manual intervention
Secondary tool station for finishing operations after heat treatment, useful when tighter tolerances are required
Deburring module for removing burrs directly on the machine during machining
Specialized fixtures and a multifunction rotary tailstock, designed to support different gear geometries and various machining setups
