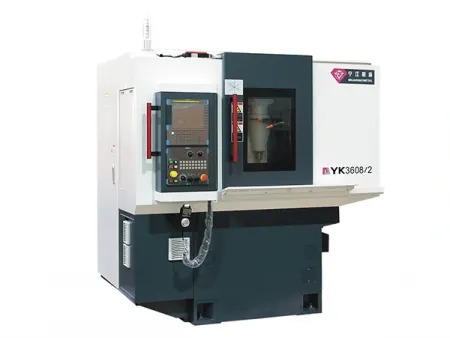

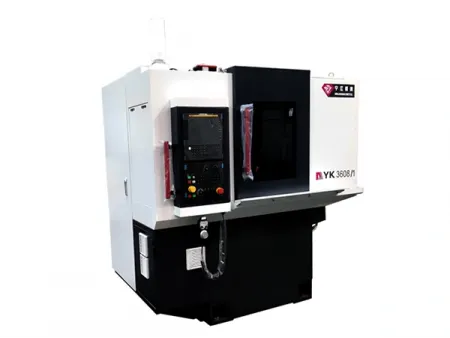

CNC Horizontal Gear Hobbing Machine
3608 Series
This series of CNC horizontal gear hobbing machines handles workpieces up to Ø80 mm and is suitable for machining spur gears, helical gears, worm gears, sprockets, timing-belt pulleys and splined parts.
The linear axes are built with hand-scraped guideways, which provide strong rigidity and good vibration damping during cutting. The hob spindle is directly driven by a servo motor, offering steady torque transmission for small and medium gear sizes. An optional secondary tool station can be added for post-hardening finishing, allowing gears to be re-cut after heat treatment when higher accuracy is required.
Configured with the FANUC 0i-MF/H CNC system using a five-axis setup with four-axis interpolation. The horizontal layout is built for stable gear cutting. The workpiece spindle is driven by a servo motor and a precision gear-reduction assembly, allowing higher torque output for small and medium gear sizes.
Equipped with the FANUC 0i-MF CNC system with five-axis control and four-axis interpolation. The workpiece spindle uses a servo motor with a precision reduction system to increase torque output. The setup supports left-hand helix angles up to 65°, suitable for worm wheels and large-angle gears used in products like fishing reels.
The 0i-MWF Plus system works with a six-axis setup and four-axis interpolation. The workpiece spindle uses two synchronized servo motors with a precision reduction gear to boost torque. The design supports left-hand helix angles up to 65°, suitable for large-angle gears used in fishing-reel applications.
| Model | | | |
| Max. working diameter (mm) | ∅80 | ∅80 | ∅80 |
| Max.working module (mm) | 2 | 1.5 | 1.5 |
| Max. Workpiece Diameter spindle speed (r/min) | 500 | 500 | 500 |
| Max. hob spindle speed (r/min) | 2000 | 2000 | 3000 |
| Hob shifting length (Y-axis) (mm) | 60 | 60 | 60 |
| Z-axis travel (mm) | 150 | ||
| Hob head swing angle (°) | ±40 | -40– 65 | -40– 65 |
| Min. tooth number (teeth) | 3 | 3 | 3 |
| Max. hob size (diameter×length) (mm) | ∅63×60 | ∅63×60 | ∅63×60 |
| Total power (kVA) | 10 | 10 | 10 |
| Overall dimensions (L×W×H) (mm) | 1950×1285×2100 | 1950×1285×1980 | 1950×1285×1980 |
| Machine weight (t) | 3 | 3 | 3 |
