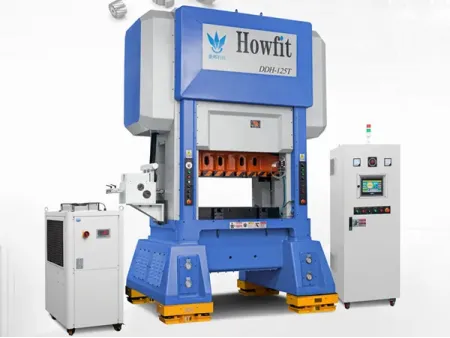

The high-speed crank press delivers a 400-ton capacity with stroke options of 30 or 40 mm and operating speeds from 100-300 strokes per minute. Featuring a 2800×1200 mm worktable, 2800×1000 mm slide, and a 2300×420 mm scrap outlet, it is powered by a 75-kW main motor. The press’s rigid frame construction ensures stability and precision, making it ideal for continuous high-accuracy stamping of rotors, stators, and metal components.
Samples of Stamped Parts
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping

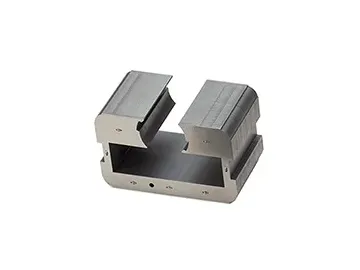

- Hardware component stamping

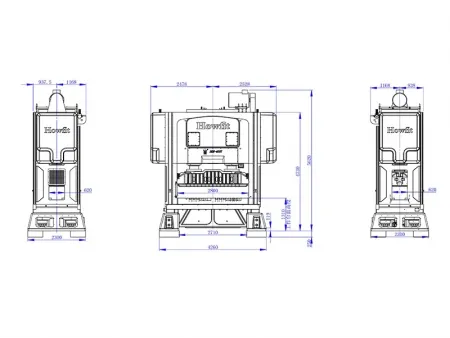

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 4000 |
| Stroke (mm) | 30/40 |
| Stroke speed (spm) | 100-300 |
| Shut height (mm) | 400-450 |
| Worktable size (bolster) (mm) | 2800×1200 |
| Slide area (mm) | 2800×1000 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 2300×420 |
| Motor (kW) | 75×4P |
| Machine weight (ton) | 85 |
