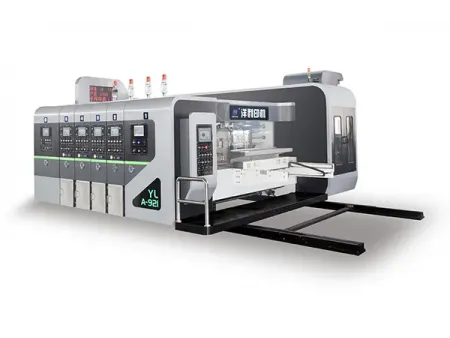

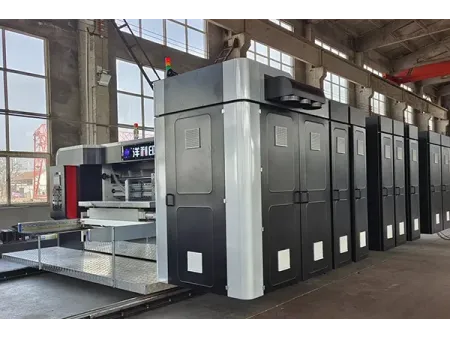

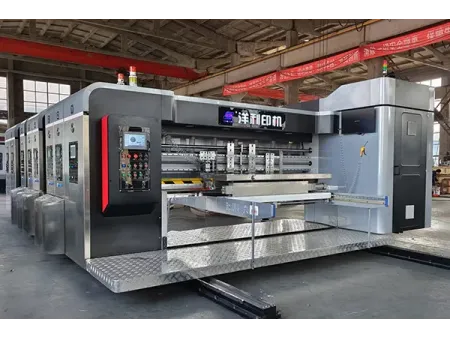

Printer Slotter Rotary Die Cutter with Lead Edge Feeder, CZYL-B
Request a Quote
Website: http://corrugatedline-en.com/2-4-printer-slotter-rotary-die-cutter-with-lead-edge-feeder.html
Corrugated Cardboard Converting Machines
The automatic high definition lead edge printing slotting machine is designed for high-speed, precise, and durable carton production. Built with advanced control systems and premium components, it ensures stable operation, efficient order switching, and excellent print accuracy.
Features
- Independent PLC Control
Each unit operates with PLC control and a color touch screen, making parameter setting and monitoring intuitive and user-friendly. - High-Quality Components
All electrical, electronic, and pneumatic parts are sourced from trusted brands such as Siemens and Delta for reliable performance. - Durable Transmission System
Main drive gears are manufactured from special imported materials and precision-ground for durability, with an oil pump spray system for continuous lubrication. - Efficient Operation
Auto zero and reset functions, along with order storage capability, accelerate job changes and improve productivity. - High Precision Printing
Equipped with key-free shaft collars to ensure long-term stability and excellent print registration accuracy.
Specifications
| Model | | | | |
| Max. speed (sheets/min) | 300 | 250 | 180 | 150 |
| Paper feeding accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Min. sheet size (mm) | 260×500 | 320×600 | 350×600 | 380×600 |
| Max. sheet size (mm) | 850×2000 | 1150×2400 | 1350×2600 | 1550×2800 |
| Skip feeding sheet size (mm) | 1200×2000 | 1400×2400 | 1600×2600 | 1800×2800 |
| Max. printing area (mm) | 820×2000 | 1150×2400 | 1400×2600 | 1550×2800 |
| Printing roller diameter (include plate) (mm) | 304 | 407 | 482 | 536 |
| Printing accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Printing plate thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 |
| Max. die cutting size (mm) | 900×2000 | 1200×2400 | 1400×2600 | 1600×2800 |
| Die cutting accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
Main Configuration
- Feeding Unit
- Printing Unit
- Servo Slotting Unit
- PLC Control Rotary Die Cutter Unit (Servo Die-Cutting without Plate)
