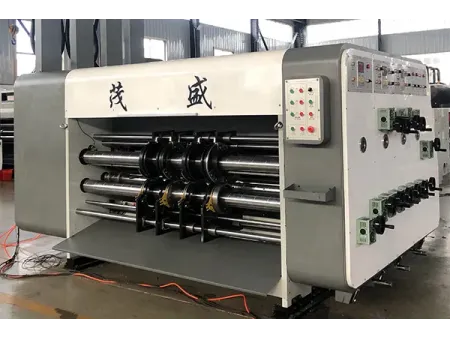

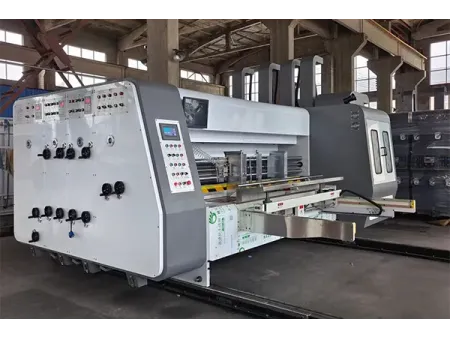

Printer Slotter Rotary Die Cutter with Lead Edge Feeder, CZYL-D

Request a Quote

Website: http://corrugatedline-en.com/2-6-printer-slotter-rotary-die-cutter-with-lead-edge-feeder.html

Corrugated Cardboard Converting Machines

The economy model printing slotter rotary die cutter with lead edge feeder is designed to provide cost-effective corrugated carton converting without compromising on quality. It performs two-color printing, slitting, creasing, trimming, slotting, and die cutting in a single operation. With its user-friendly control system and durable construction, this machine delivers reliable performance for medium- to large-scale production needs.

Features

All-in-One Operation
Completes two-color printing, slitting, embossing, trimming, slotting, and die cutting in one pass, ensuring efficiency and precision.

Advanced Feeding System
Equipped with a vacuum absorb lead edge feeding system for simple operation, stable performance, and high accuracy (can be visually highlighted with photos if needed).

Durable Construction
Drive rollers are made of high-quality steel, hard chrome plated, and precision ground. Gears are manufactured from premium alloy steel, heat-treated, and ground for durability.

Precision Printing
Keyless connection on main drive shafts reduces mechanical gaps, ensuring accurate color registration and high-quality prints.

Safety Features
Self-locking function prevents the machine from starting unless all units are fully locked, protecting both equipment and operators. During operation, unit clutches remain locked to avoid accidental damage.

Zero-Reset System
Automatic zeroing ensures consistent adjustment baselines, reducing cardboard waste.

Versatile Application
Suitable for converting 3-, 5-, and 7-layer corrugated boards as well as E-flute cardboard.

Specifications

Model	920	922	1224	1228	1426	1628
Max. speed (sheets/min)	180	180	150	130	120	100
Paper feeding accuracy (mm)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Min. sheet size (mm)	250×500	250×500	320×600	320×600	350×600	350×600
Max. sheet size (mm)	850×2000	850×2200	1150×2400	1150×2800	1350×2600	1550×2800
Skip feeding sheet size (mm)	1200×2000	1200×2200	1400×2400	1400×2800	1600×2600	1800×2800
Max. printing area (mm)	820×2000	820×2200	1150×2400	1150×2800	1400×2600	1550×2800
Printing accuracy (mm)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Printing plate thickness (mm)	7.2	7.2	7.2	7.2	7.2	7.2
Min. slotting size (L×W×H) (mm)	220×60×70	220×60×70	250×60×80	250×60×80	250×60×80	250×60×80
Min. die cutting size (L×W×H) (mm)	170×80×80	170×80×80	180×80×80	180×80×80	180×80×80	180×80×80
Max. slotting depth (mm)	230	230	310	310	370	410
Max. slotting depth (mm)	Additional knifes can be added to increase slotting depth
Slotting accuracy (mm)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Max. die cutting size (mm)	900×2000	900×2200	1200×2400	1200×2800	1400×2600	1600×2800
Die cutting accuracy (mm)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5

Main Configuration

Mechanical Paper Delivery Unit

Front Edge Roller / Paper Delivery System

Air Suction Feeding: Equipped with a 7.5 kW fan; airflow can be adjusted according to the curvature of the cardboard (valve-regulated) to ensure smooth feeding.
Adjustable Guides: Side baffle and rear gear box positions are electrically adjustable.
Paper Counter: Allows setting and displaying production quantity with an automatic alarm.

Automatic Zeroing Device

Automatic Zeroing: Paper delivery and printing units feature electric automatic zeroing with erasure memory.
Reduced Waste: For standard cartons, correct positioning can be achieved after just two trial prints, minimizing cardboard waste.

Paper Preparation Device

Pneumatic Alignment: Equipped with a pneumatic paper-aligning device that can be set to automatically align sheets at specified intervals.

Printing Unit

Printing Roller (Plate Roller)

Roller Size: External diameter Ø480 mm (including plate outer diameter).
Ratchet-Fixed Shaft: Reel fixed with ratchet mechanism for stability.
Plate Slot: Full-length hanging plate slot, suitable for 9 mm × 3 mm plate strips.
Quick Plate Change: Fast plate changing device for easy installation and removal; foot switch with electric control enables forward and reverse rotation.

Steel Mesh Roller

Roller Size: Steel mesh roller with an outer diameter of Ø198 mm.
Automatic Lifting: Integrated with the paper feeding system’s pneumatic lifting device. Roller lowers to contact the printing plate during feeding and rises to separate when feeding stops.

Rubber Roller

Roller Size: Outer diameter Ø198 mm.
Durable Surface: Steel tube surface wrapped with wear-resistant rubber and balance-corrected for stable operation.

Phase Adjustment Mechanism

Printing Phase Control: Electric digital control with 360° adjustment, operable during both running and stop modes.
Lateral Adjustment: Manual lateral positioning with an adjustment range of ±7.5 mm.

Printing Phase Fixing Device

Automatic Brake: Equipped with a cylinder-type automatic braking device.
Position Holding: When the machine is separated or the phase is being adjusted, the brake mechanism prevents rotation and keeps the original gear position fixed.

Slotting Unit

Knife Control

Structure: Single-axis double-knife design, with the rear knife manually adjustable.
Movable Knife Seats: Four knife seats are movable, with manual spacing adjustment.
Adjustment Method: Loosen the set screw, then manually turn the knife gear while moving it simultaneously.

Paper Split / Slotting Knife Holder

Knife Specifications: Slotting knife with 7 mm thickness, made of high-quality alloy steel and heat-treated with patented tooth slotting technology to ensure durability and precision.
Flexible Design: The middle slotting knife is movable, making it suitable for producing large-size double-piece cartons.

Waste Stacking Machine (Optional)
