Printer Slotter Rotary Die Cutter with Lead Edge Feeder, CZYL-C
Corrugated Cardboard Converting Machines

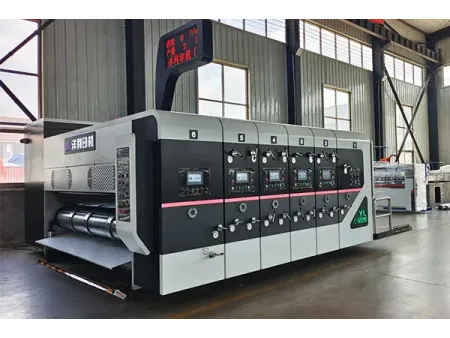

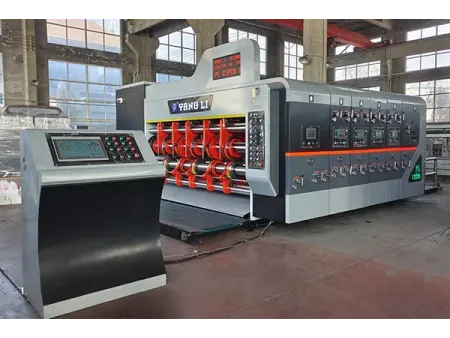

The printer slotter rotary die cutter with lead edge feeder is a versatile machine that integrates multiple processes, including four-color printing, cutting, creasing, trimming, slotting, and die cutting, all in a single operation. It is equipped with a front-edge positioning automatic paper feeding system with adjustable air volume, ensuring stable and precise sheet handling. The main unit adopts frequency conversion control, while a PLC system with a color display screen provides multifunctional operation that is convenient, fast, and flexible. Phase adjustments are managed by PLC electric control with automatic zeroing, automatic reset, and one-key color registration. This machine is suitable for producing 3, 5, and 7-layer corrugated cardboard, as well as E-flute board.
- High Reliability Design
Entire machine is engineered and manufactured to meet strict reliability standards, with a user-friendly interface that allows quick setup, correction, execution, and operation, supported by accurate data display. - Advanced Feeding System
Equipped with a high-precision vacuum adsorption lead edge feeder that ensures simple operation and stable accuracy. - Durable Transmission Components
All drive rollers are made of high-quality steel, hard chrome plated, and precision ground. Transmission gears are manufactured from high-grade alloy steel, heat-treated, and ground for strength and durability. - Precision Alignment
Main drive shafts adopt keyless connections to reduce clearance and maintain accurate printing registration. - Safety System
The main unit includes an interlocking safety feature that prevents the machine from starting unless all sections are fully locked, ensuring the safety of both the equipment and operators. During normal operation, the clutch of each unit remains locked to avoid accidental operation errors. - Auto Zeroing
Automatic zero-reset function ensures a unified adjustment baseline across units, reducing cardboard waste and improving efficiency.
| Model | | | | | | |
| Max. speed (sheets/min) | 280 | 230 | 200 | 200 | 180 | 150 |
| Paper feeding accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Min. sheet size (mm) | 250×500 | 250×500 | 320×600 | 320×600 | 350×600 | 350×600 |
| Max. sheet size (mm) | 850×2000 | 850×2200 | 1150×2400 | 1150×2800 | 1350×2600 | 1550×2800 |
| Skip feeding sheet size (mm) | 1200×2000 | 1200×2200 | 1400×2400 | 1400×2800 | 1600×2600 | 1800×2800 |
| Max. printing area (mm) | 820×2000 | 820×2200 | 1150×2400 | 1150×2800 | 1400×2600 | 1550×2800 |
| Printing accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Printing plate thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Min. slotting size (L×W×H) (mm) | 220×60×70 | 220×60×70 | 250×60×80 | 250×60×80 | 250×60×80 | 250×60×80 |
| Min. die cutting size (L×W×H) (mm) | 170×80×80 | 170×80×80 | 180×80×80 | 180×80×80 | 180×80×80 | 180×80×80 |
| Max. slotting depth (mm) | 230 | 230 | 310 | 310 | 370 | 410 |
| Additional knifes can be added to increase slotting depth | ||||||
| Slotting accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Max. die cutting size (mm) | 900×2000 | 900×2200 | 1200×2400 | 1200×2800 | 1400×2600 | 1600×2800 |
| Die cutting accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
- Mechanical Paper Delivery Unit
- Printing Unit
- Die Cutting Unit
- Waste Clearing and Stacking Machine (Optional)
