Request a Quote

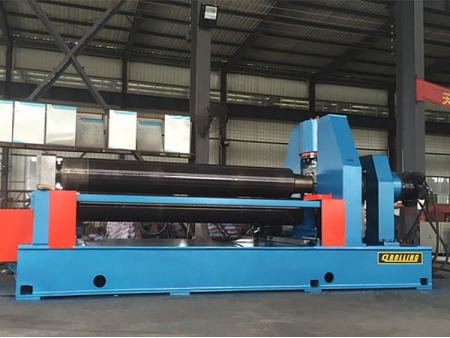

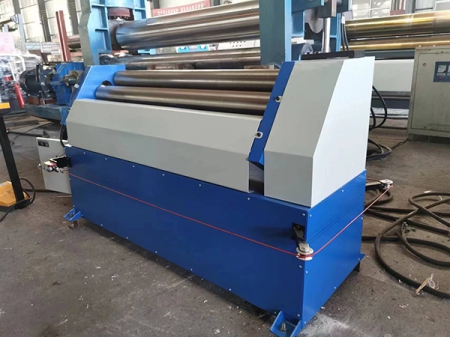

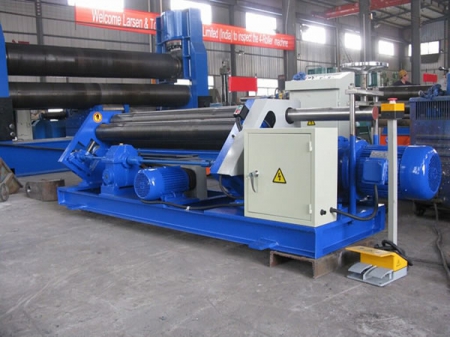

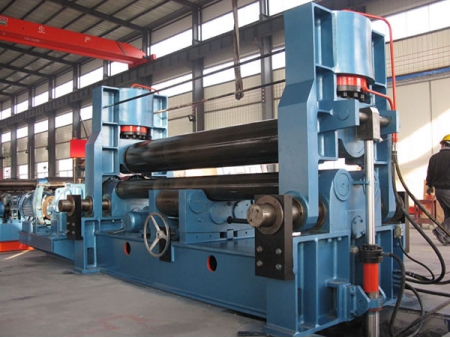

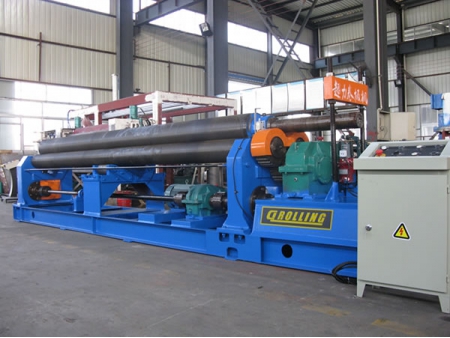

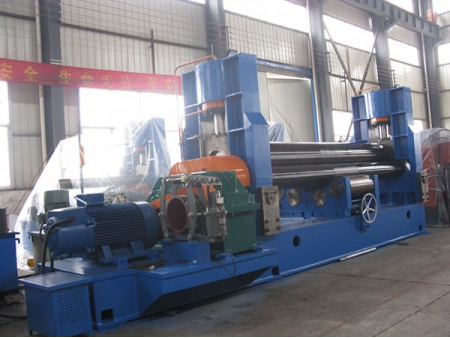

This 3-roll marine plate rolling machine adopts a 3-roller symmetrical structure. Its upper roller makes vertical movement at a symmetrical position in the center between the two lower rollers. With the oil in the hydraulic cylinder acting upon the piston, the whole system is driven hydraulically. The two lower rollers make rotational motion and thus providing the plates with torque through the engagement between the gear of the moderator and gear of the lower roller. Several groups of support rollers are devised on the lower side of the two lower rollers to enhance the rigidity of the structure and make it possible to do vertical adjustment. On the upper side of the upper roller, there is a rigid beam. And between the beam and the upper roller, there are several groups of support rollers to enhance the system's rigidity. The 3-roll ship plate bending machine is fit for bending workpieces into arc shapes with excessive width.

Technical parameters of 3-roll hydraulic marine plate bending machine
8000mm 3 Roll Plate Bending Machine
Model Max plate thickness (mm) Max plate width (mm) Yield strength of the plate (MPa) Rolling speed (m/min) Min diameter of plate under full loading (mm) Diameter of upper roller (mm) Diameter of lower roller (mm) Diameter of upper support roller (mm) Diameter of lower support roller (mm) Central distance between bottom rollers (mm) Power of main motor (kw) Power of hydraulic motor (kw)
W11NC-20x8000 20 8000 245 4 5000 380 320 380 320 470 75 30
10000mm 3 Roll Plate Bending Machine
Model Max plate thickness (mm) Max plate width (mm) Yield strength of the plate (MPa) Rolling speed (m/min) Min diameter of plate under full loading (mm) Diameter of upper roller (mm) Diameter of lower roller (mm) Diameter of upper support roller (mm) Diameter of lower support roller (mm) Central distance between bottom rollers (mm) Power of main motor (kw) Power of hydraulic motor (kw)
W11NC-25x10000 25 10000 245 4 6000 500 360 380 360 540 75 30

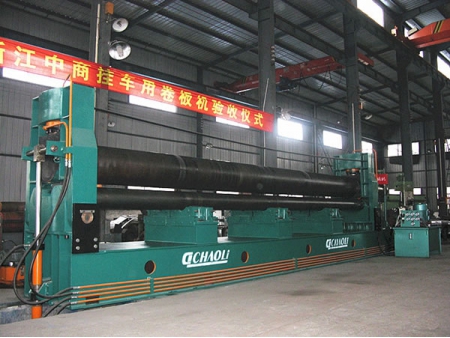

12000mm 3 Roll Plate Bending Machine
Model Max plate thickness (mm) Max plate width (mm) Yield strength of the plate (MPa) Rolling speed (m/min) Min diameter of plate under full loading (mm) Diameter of upper roller (mm) Diameter of lower roller (mm) Diameter of upper support roller (mm) Diameter of lower support roller (mm) Central distance between bottom rollers (mm) Power of main motor (kw) Power of hydraulic motor (kw)
W11NC-20x12000 20 12000 245 4 8000 600 380 400 400 600 110 45
W11NC-25x12000 25 12000 245 4 10000 650 420 420 400 700 130 45
Features of standard ship plate bending machine
  • Induction hardened rolls are forged using high-tensile carbon steel. They are given heat treatment and then submitted to non-destructive structural control
  • Digital display for all rolls
  • Heavy duty steel welded frame without stress
  • All operation controls are done with an independent control console
  • Movement and parallelism adjustment of the rollers is controlled with panel
Features of optional ship plate rolling equipment
  • Polished rolls
  • Material feeding table
  • Mobile control panel
  • Oil cooling system
  • Automatic lubrication system
