Automatic High Precision Wire One-Sided Tinning and Terminal Crimping Machine

Automatic High Precision Wire One-Sided Tinning and Terminal Crimping Machine
Automatic High Precision Wire One-Sided Tinning and Terminal Crimping Machine
Request a Quote

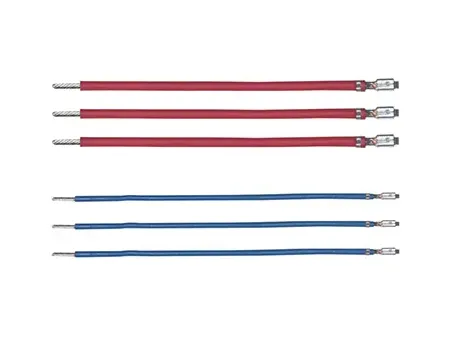

This wire tinning and terminating machine integrates cutting, half stripping, one-sided crimping, and tinning operations into a unified workflow. It can process up to 3,500 wires per hour, handling tasks such as single-end crimping combined with twisting or tinning and half stripping on the opposite end. Ideal for electronic and single conductor wires, it offers flexibility for a variety of production requirements.

Crimping Capacity
  • 3,500 wires per hour
Technical Data
General Model
Dimensions (L×W×H) 1450×950×1600mm
Weight Approx. 350kg
Power Supply AC220V 50Hz
Rated Current 15A
Power 3.5kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1×1.5m
Crimping Force 2T
Functions Crimping Capacity 3500 pcs/hr
Wire Processing Side A: terminal crimping by using ball screw mechanism
Side B: tinning, 90 degree bend tinning
Two-sided half stripping, One-sided crimping one-sided twisting, One-sided crimping one-sided half stripping, One-sided crimping one-sided twisting and tinning
Split type blade cutting and stripping
Twisting by motor rotation
Control System PLC control, servo motor
Operation Control Wire feeding, cutting and stripping are controlled via touch screen, with full servo control
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Optional Pressure Measuring Device Used to measure terminal crimping pressure (qualified and non-qualified products are placed separately)
Application Range Cutting Length 30-9999mm
Stripping Length Front: 0-10mm, Rear: 0-15mm
Wire & Cable Type Electric wire, solid core cable (AWG32#-AWG18#)
Features
  • Utilizes a wire feeding wheel with fixed-length control and servo-coordinated screw slides for stripping and terminal crimping, ensuring precision on both ends.

  • High-precision dual-head crimping mechanism combines automatic wire feeding, straightening, fixed-length cutting, stripping, and crimping into a single system, suitable for advanced wire harness production.

  • Features a 2-ton cast terminal press with precision, wear-resistant guides, supporting horizontal and vertical terminal cutting with waste material collection.

  • Integrated error monitoring system displays real-time alerts on a user-friendly touch screen, simplifying troubleshooting and minimizing production delays.
