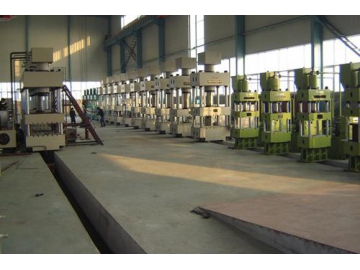

Four Column Hydraulic Press Manufacturer

Four Column Hydraulic Press

Request a Quote

View All: http://pressing-machines.com/6-1-four-column-hydraulic-press.html

Description
The YL32 series four column hydraulic press is applicable for pressing plastic materials, such as crimping, sheet stretch, bending, as well as correcting, press fitting, cold extrusion, and pressing molding processes of plastic and powder products.

It uses a three-beam, four-column structure, which is simple, economical and practical. Using an operating panel, users can achieve two different forming processes, a fixed stroke and a fixed pressure. The metal shearing machine also features a fixed pressure time delay function.

Parameters

Type			YL32G-100	YL32G-200	YL32G-315	YL32G-400	YL32G-500	YL32G-630
Nominal force		kN	1000	2000	3150	4000	5000	6300
Return force		kN	135	240	305	350	580	650
Slide stroke		mm	500	710	800	800	900	900
Max. shut height		mm	800	1120	1250	1250	1500	1500
Ejecting force		kN	190	280	630	630	1000	1000
Ejecting return force		kN	100	155	250	250	460	460
Ejecting stroke		mm	200	200	300	300	350	350
Slide speed	Idle stroke	mm/s	150	200	200	170	200	180
	Pressing	mm/s	7-15	7-18	5-12	4-10	7-15	5-12
	Return	mm/s	120	140	120	105	130	115
Ejecting speed	Eject	mm	75	120	55	55	75	75
Ejecting speed	Return	mm	140	150	145	145	150	150
Bolster size	LR	mm	690	1000	1260	1250	1400	1600
Bolster size	FB	mm	630	940	1160	1250	1400	1600
Machine outline size	LR	mm	2600	3000	3600	3600	4000	4300
	FB	mm	1400	1400	1600	1600	2100	2100
	Above floor	mm	3250	3800	4600	4850	5200	5600
	Below floor	mm	0	450	800	800	850	750
Main motor power		kW	7.5	22	22	22	22×2	22×2
Machine weight		kg	4000	9200	14500	17000	25500	33500

Basic configuration of four column hydraulic press

Oil cylinder seals: main sealing achieved using new YX sealing rings that feature a low friction resistance and high pressure resistance. They are made using imported raw materials from Japan.
Hydraulic system: The manifold block features a cartridge valve structure.
Four columns: they are each treated with surface medium frequency quenching, and connected with the slide using a wear-resistant ring structure to reduce wear.
Speed switchover point is controlled with a proximity switch.
Oil pump
Motor
Electrical components
Oil cylinder

Features

It is optimized by a computer to provide high strength and excellent rigidity.
Hydraulic control uses a two-way cartridge valve integrated system that is sensitive and reliable, and has a long service life with a low hydraulic impact. This reduces pipeline and leakage points.
An independent electrical control system works in a reliable, intuitive manner that is easy to maintain.
Buttons are used for centralized control, and can operate in either manual or semi-automatic adjustment operating modes.
Two forming processes, fixed stroke and fixed pressure, are chosen on the operation panel, as is a fixed pressure time delay function.
The working pressure, fast idle and slow pressing stroke adjustment range can all be adjusted depending on the process.

Optional components

Automatic centralized lubrication system
Oil cooling or oil heating unit
Stamping buffer unit
Hydraulic or mechanical feeding device
Light curtain protection device
