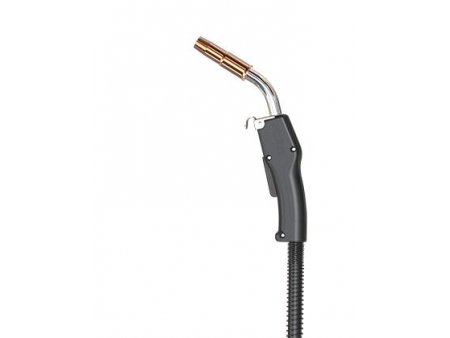

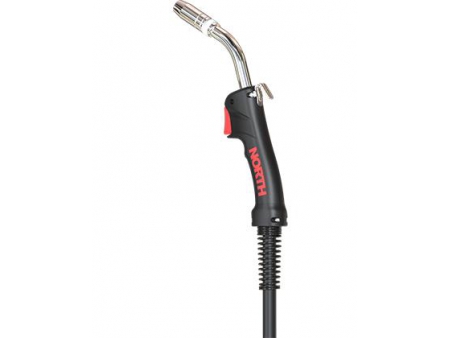

NT2B Welding Gun with Adjustable Nozzle
NT2B Welding Gun with Adjustable Nozzle
Model | NT2B | |
Rated Current | CO2 | 200A |
Mixed Gas | 150A | |
Duty Cycle | 60% | |
Diameter of Applicable Welding Wire | 0.023-0.045 inch (0.6-1.2mm) | |
Model
Description | Part No. | ||
10ft | 12ft | 15ft | |
Welding Torch Coupled with Euro Fitting * | NT2B-3E | NT2B-4E | NT2B-5E |
Welding Torch Coupled with Tweco Fitting | NT2B-3T | NT2B-4T | NT2B-5T |
Welding Torch Coupled with Lincoln Fitting | NT2B-3L | NT2B-4L | NT2B-5L |
Nozzle
No. | Part No. | Description |
A | 22-50 * | Adjustable |
22-62 | Adjustable | |
B | 22-50F | Self Insulated |
C | 24CT50S | Fixed Coarse Thread |
24CT62S | ||
24CT75S | ||
D | 23-50 | Self Insulated |
23-62 | ||
23-75 | ||
E | 24A50 | Adjustable |
24A62 | ||
24A75 |
Contact Tip
No. | Part No. | Description |
F | 14-23 | 0.023 inch/ 0.6mm Ecu |
14-30 | 0.030 inch/ 0.8mm Ecu | |
14-35 * | 0.035 inch/ 0.9mm Ecu | |
14-40 | 0.040 inch/ 1.0mm Ecu | |
14-45 | 0.045 inch/ 1.2mm Ecu | |
14H-35 | 0.035 inch/ 0.9mm Ecu HD | |
14H-40 | 0.040 inch/ 1.0mm Ecu HD | |
14H-45 | 0.045 inch/ 1.2mm Ecu HD |
Liner
No. | Part No. | Description |
G | 42-3015-15 | Steel Liner 0.030-0.035 inch/ 0.8-0.9mm 15ft |
42-4045-15 * | Steel Liner 0.040-0.045 inch/ 1.0-1.2mm × 15ft | |
42T-3545-15 | Teflon Liner 0.035-0.045 inch/ 0.9-1.2mm × 15ft |
Component
No. | Part No. | Description |
1 | 32 | Adjustable Nozzle Insulator |
2 | 34CT | Insulator Coarse Thread Nozzle |
3 | 34A | Adjustable Nozzle Insulator |
4 | 52 | Gas Diffuser |
5 | 52FN | Gas Diffuser |
6 | 62A45-J* | Jacketed Conductor Tube 45° |
62A60-J | Jacketed Conductor Tube 60° | |
7 | 102 | Cable Connector Block Assembly |
8 | 62N | Gas Nipple |
9 | 84HD-R | Handle with Screws, Red |
10 | 154HD | Hanger Hook |
11 | 92 | Trigger Switch |
12 | Q93178 | Cable Hose Clamp |
|
